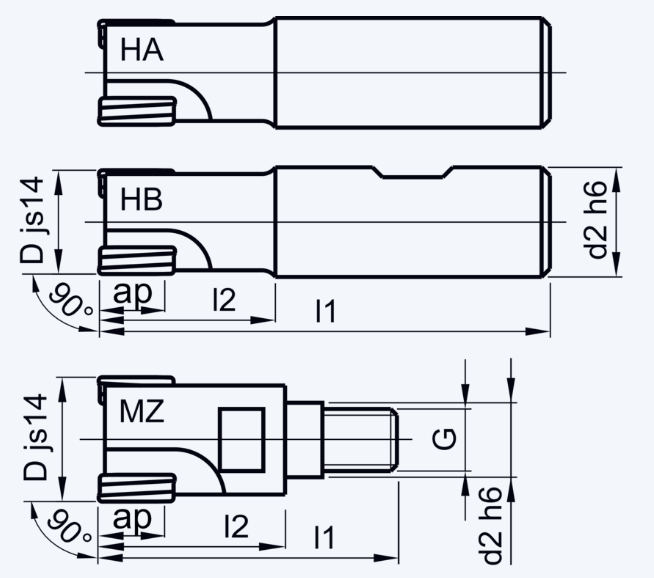

Part No | Type (model) | Type | D
mm
| l2
mm
| d2
mm
| G | l1
mm
| ap
mm
| |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13060382 | 25-TN 11 R | HB | 25 | 38 | 20 | 90 | 8 | 4 | TNFU 11 S4 | ||||
13060392 | 25-TN 11 R | HA | 25 | 38 | 20 | 90 | 8 | 4 | TNFU 11 S4 | ||||
13080382 | 25-TN 11 R | MZ | 25 | 35 | 12.5 | M12 | 55 | 8 | 4 | TNFU 11 S4 | |||
13060422 | 32-TN 11 R | HB | 32 | 38 | 25 | 96 | 8 | 5 | TNFU 11 S4 | ||||

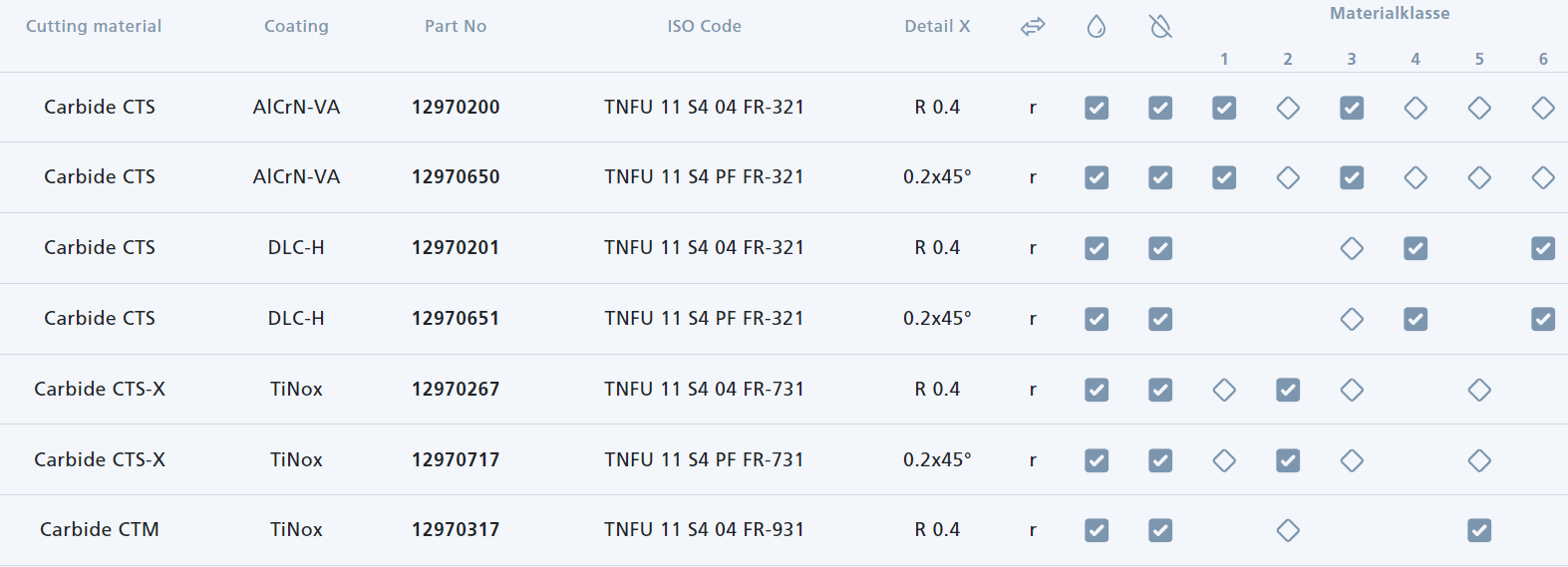

13080422 | 32-TN 11 R | MZ | 32 | 42 | 17 | M16 | 64 | 8 | 5 | TNFU 11 S4 |
