AO10/AO15/AO20/R 90°/直径40-100
Specifications

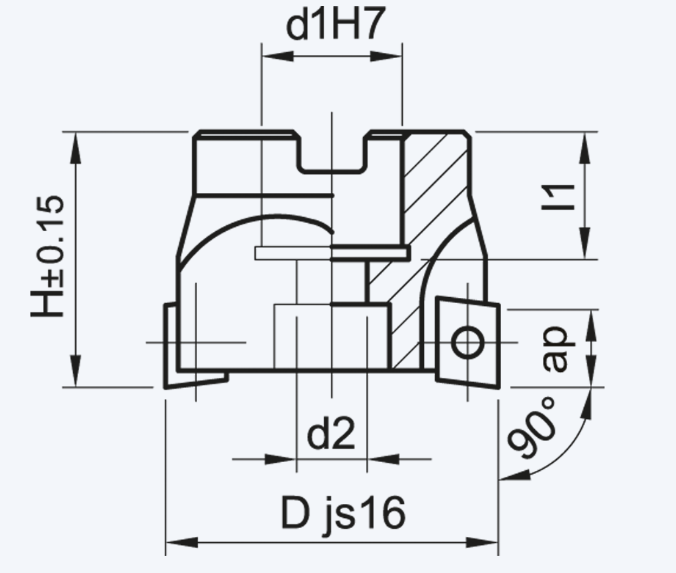

Part No | Type (model) | D
mm
| H
mm
| d1
mm
| d2
mm
| l1
mm
| ap
mm
| |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
13110462 | 40-AO 10 R | 40 | 32 | 16 | 8.5 | 18 | 8 | 6 | AOFT 10 03 | |||
13110460 | 40-AO 15 R | 40 | 32 | 16 | 8.5 | 18 | 13 | 4 | AOFT 15 T3 | |||
13110482 | 50-AO 10 R | 50 | 40 | 22 | 11 | 20 | 8 | 8 | AOFT 10 03 | |||
13110480 | 50-AO 15 R | 50 | 40 | 22 | 11 | 20 | 13 | 6 | AOFT 15 T3 | |||
13120480 | 50-AO 20 R | 50 | 40 | 22 | 11 | 20 | 17.5 | 4 | AOFT 20 04 | |||
13110500 * | 63-AO 15 R | 63 | 40 | 22 | 11 | 20 | 13 | 7 | AOFT 15 T3 | |||
13120500 | 63-AO 20 R | 63 | 40 | 22 | 11 | 20 | 17.5 | 5 | AOFT 20 04 | |||
13110520 * | 80-AO 15 R | 80 | 50 | 27 | 14 | 22 | 13 | 9 | AOFT 15 T3 | |||
13120520 * | 80-AO 20 R | 80 | 50 | 27 | 14 | 22 | 17.5 | 6 | AOFT 20 04 | |||
13120540 * | 100-AO 20 R | 100 | 50 | 32 | 18 | 25 | 17.5 | 7 | AOFT 20 04 |
