ALESA DELTA可调式铣刀1304e TN 18 – R/e 90° / 直径 43 – 125
Specifications

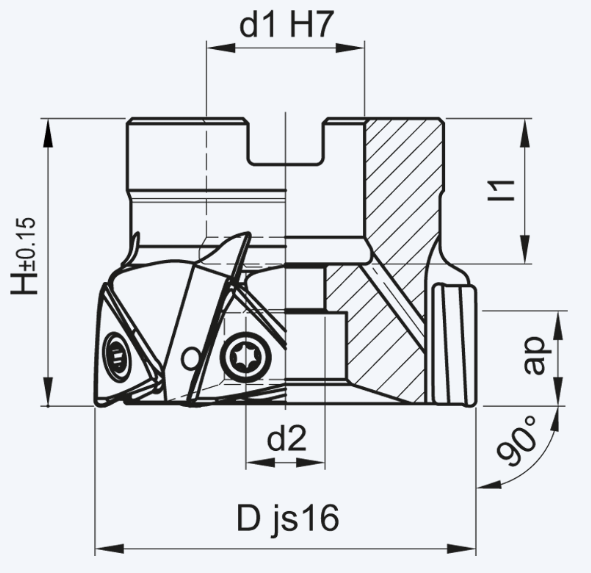

Part No | Type (model) | D
mm
| H
mm
| d1
mm
| d2
mm
| l1
mm
| |||||
|---|---|---|---|---|---|---|---|---|---|---|---|

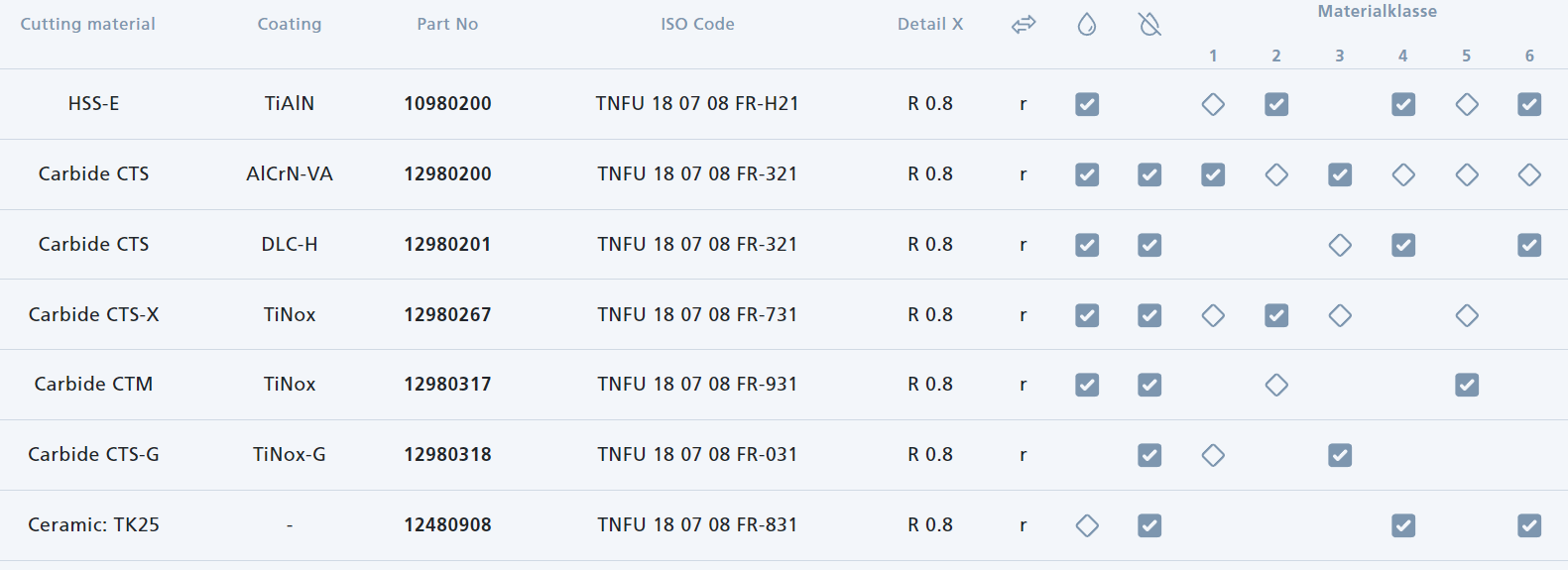

13040465 | 43-TN 18 R/e | 43 | 32 | 16 | 8.5 | 18 | 4 | TNFU 18 07 | |||
13040485 | 53-TN 18 R/e | 53 | 40 | 22 | 11 | 20 | 6 | TNFU 18 07 | |||
13040505 | 66-TN 18 R/e | 66 | 40 | 22 | 11 | 20 | 7 | TNFU 18 07 | |||
13040525 | 83-TN 18 R/e | 83 | 50 | 27 | 14 | 22 | 9 | TNFU 18 07 | |||
13040545 | 103-TN 18 R/e | 103 | 50 | 32 | 18 | 25 | 10 | TNFU 18 07 | |||
13040564 | 125-TN 18 R/e | 125 | 63 | 40 | 22 | 29 | 12 | TNFU 18 07 |
