ALESA HEPTA SPEED高速铣刀1329 XO 06 R 15°/直径40-63
Specifications

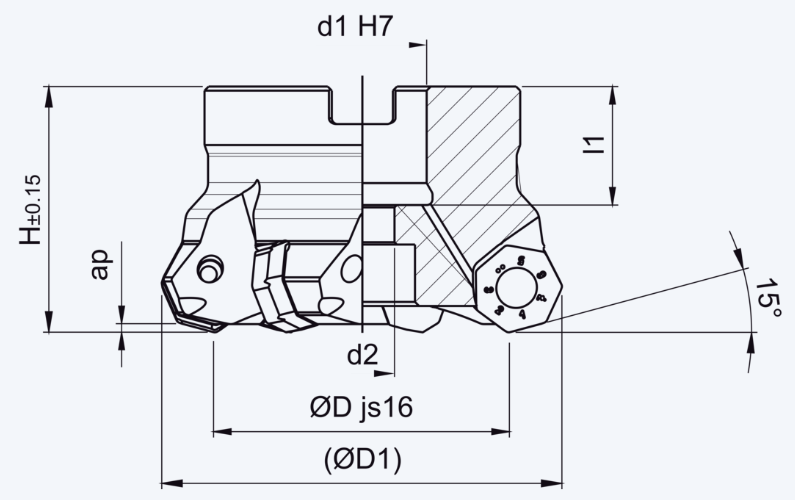

Part No | Type (model) | D
mm
| D1
mm
| H
mm
| d1
mm
| d2
mm
| l1
mm
| ap
mm
| |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13290462 | 40-XO 06 R SPEED | 40 | 59 | 42 | 22 | 11 | 20.25 | 1.5 | 5 | XOFU 06 05 | |||
13290482 | 50-XO 06 R SPEED | 50 | 68.84 | 42 | 22 | 11 | 20.25 | 1.5 | 6 | XOFU 06 05 | |||
13290502 | 63-XO 06 R SPEED | 63 | 81.7 | 49 | 27 | 14 | 22.25 | 1.5 | 7 | XOFU 06 05 |
