ALESA DELTA套式立铣刀1354 TN 11 R 90°/直径25-32
Specifications

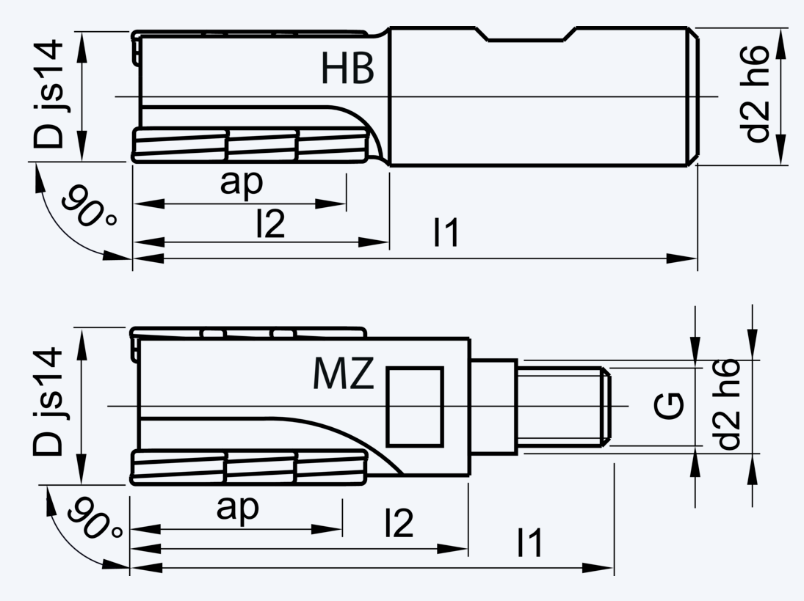

Part No | Type (model) | Type | D
mm
| l2
mm
| d2
mm
| G | l1
mm
| ap
mm
| |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13540382 | 25-TN 11 R 3×4 | HB | 25 | 38 | 25 | 96 | 30 | 3 x 4 | TNFU 11 S4 | ||||
13540384 | 25-TN 11 R 2×4 | MZ | 25 | 52 | 12.5 | M12 | 72 | 30 | 2 x 4 | TNFU 11 S4 | |||
13540422 | 32-TN 11 R 4×5 | HB | 32 | 46 | 32 | 108 | 37 | 4 x 5 | TNFU 11 S4 | ||||
13540424 | 32-TN 11 R 3×5 | MZ | 32 | 64 | 17 | M16 | 86 | 37 | 3 x 5 | TNFU 11 S4 |
