瑞典Spectrogon Narrow Bandpass Filters NB-0594-005 nm 1/2英寸。
Spectrogon开发和制造光学滤波器和其他薄膜涂层以及用于各种应用和工业的全息光栅。

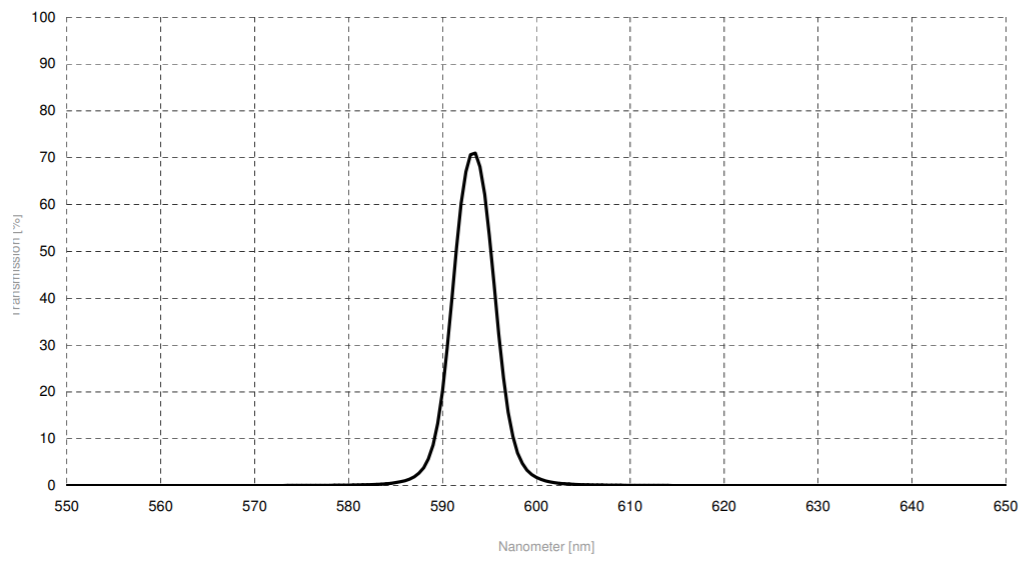

Actual values:
CWL = 593,3 nm Data collection range: 400 – 700 nm
HW = 5,1 nm Diagram range: 550 – 650 nm
Cuton 5% = 588,3 nm
Cutoff 5% = 598,4 nm
HP1 = 590,8 nm
HP2 = 595,9 nm
Tpeak = 70,98 %
Tavg = 66,52 %
Slope 1 = 0,6 %
Slope 2 = 0,6 %
Specifications:
CWL: 594 ±3 nm
HW: 5 ±2 nm
Tmin: 60 %
Blocking: 1200 nm
Measurement conditions:
Temperature: 23 °C
AOI: 0 deg
Measured values:
CWL = 1749,11 nm…OK
HW = 98,45 nm…OK
Cuton 5 % = 1672,6 nm
Cutoff 5 % = 1830,74 nm
HP2 = 1798,33 nm
Tpeak = 84,74 %…OK
Tavg = 82,29 %
Slope 1 = 2,07 %
Slope 2 = 2,42 %
