瑞典Spectrogon Bandpass Filters滤波片BP-1745-100 nm Ø25.4×1.0 mm
Specifications:
CWL: 1745 ±20 nm
HW: 100 ±15 nm
Tmin: 60 %
Blocking: 200 – 3500 nm (OD 3)
Measurement conditions:
Temperature: 23 °C
AOI: 0 deg

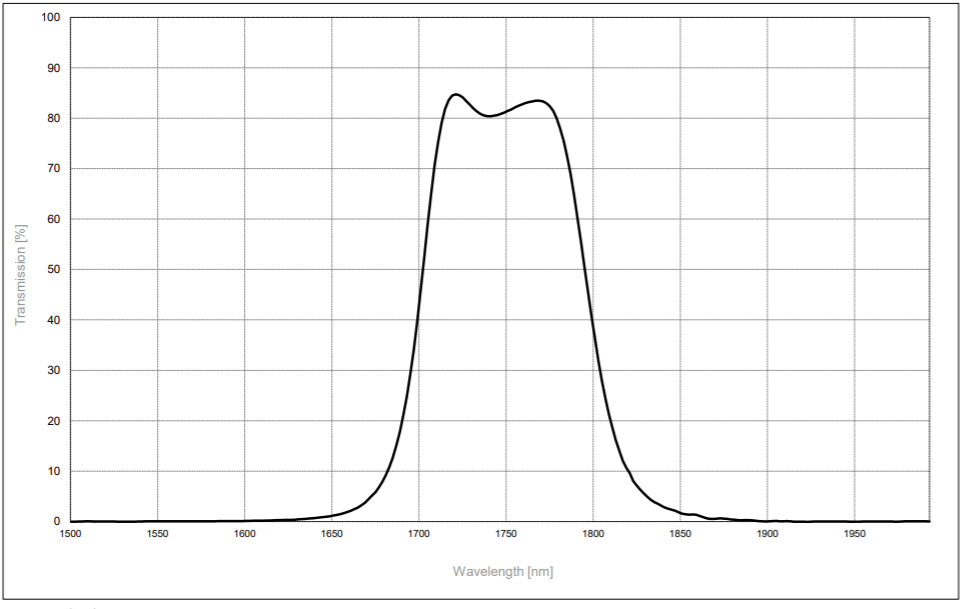

Measured values:
CWL = 1749,11 nm…OK
HW = 98,45 nm…OK
Cuton 5 % = 1672,6 nm
Cutoff 5 % = 1830,74 nm
HP2 = 1798,33 nm
Tpeak = 84,74 %…OK
Tavg = 82,29 %
Slope 1 = 2,07 %
Slope 2 = 2,42 %
