Spectrogon Narrow Bandpass Filters窄带宽滤波片 NB-0624-012 nm
Spectrogon开发和制造光学滤波器和其他薄膜涂层以及用于各种应用和工业的全息光栅。

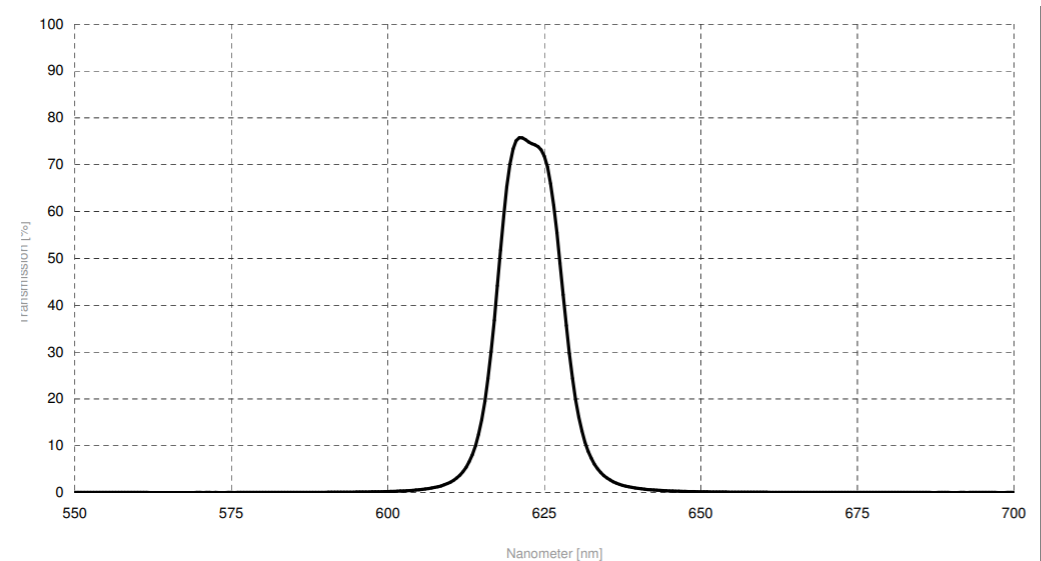

Actual values:
CWL = 622,7 nm Data collection range: 500 – 750 nm
HW = 11,3 nm Diagram range: 550 – 700 nm
Cuton 5% = 612,3 nm
Cutoff 5% = 633,5 nm
HP1 = 617,1 nm
HP2 = 628,3 nm
Tpeak = 75,79 %
Tavg = 73,05 %
Slope 1 = 1 %
Slope 2 = 1,1 %
Specifications:
CWL: +3/-3 nm
HW: +2/-2 nm
Tmin: 70 %
Blocking: 1200 nm
Measurement conditions:
Temperature: 23 °C
AOI: 0 deg
