Spectrogon标准带通滤光片BP-0500-040 nm Ø25.4×4.0 mm
Specifications:
CWL: 500 ±5 nm
HW: 40 ±5 nm
Tmin: 50 %
Measurement conditions:
Temperature: 23 °C
AOI: 0 deg

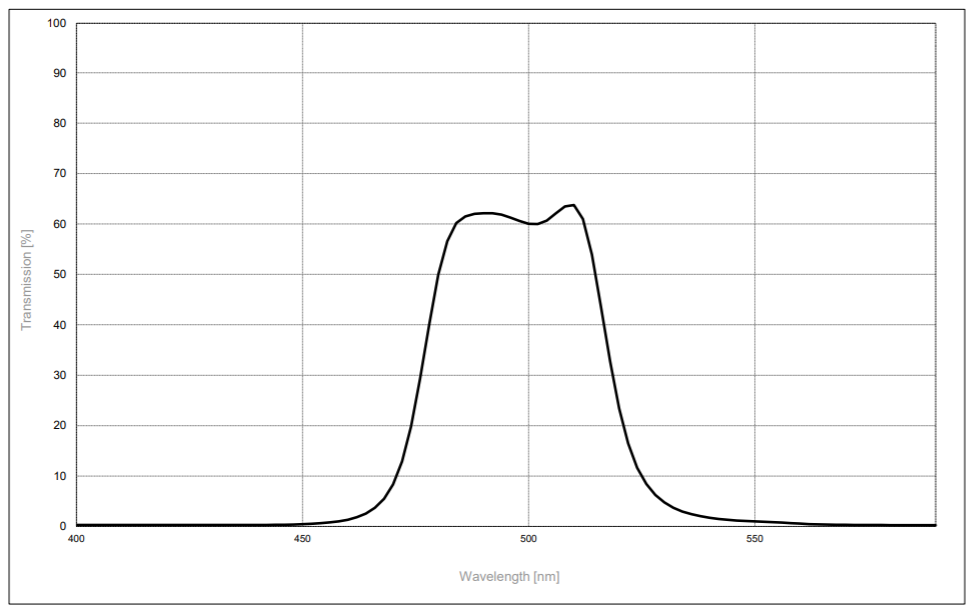

Measured values:
CWL = 497,33 nm…OK
HW = 41,71 nm…OK
Cuton 5 % = 467,46 nm
Cutoff 5 % = 529,67 nm
HP1 = 476,47 nm
HP2 = 518,19 nm
Tpeak = 63,77 %
Tavg = 61,22 %
Slope 1 = 2,68 %
Slope 2 = 2,94 %
