LRMO-LG系列直线压电电机
Piezo Motor Company的新型直线压电电机系列在紧凑型、高精度高性能直线电机技术的设计制造方面实现了质的飞跃。
该新型直线电机系列以非常经济的成本，兼具卓越的纳米级精度和超快响应速度。

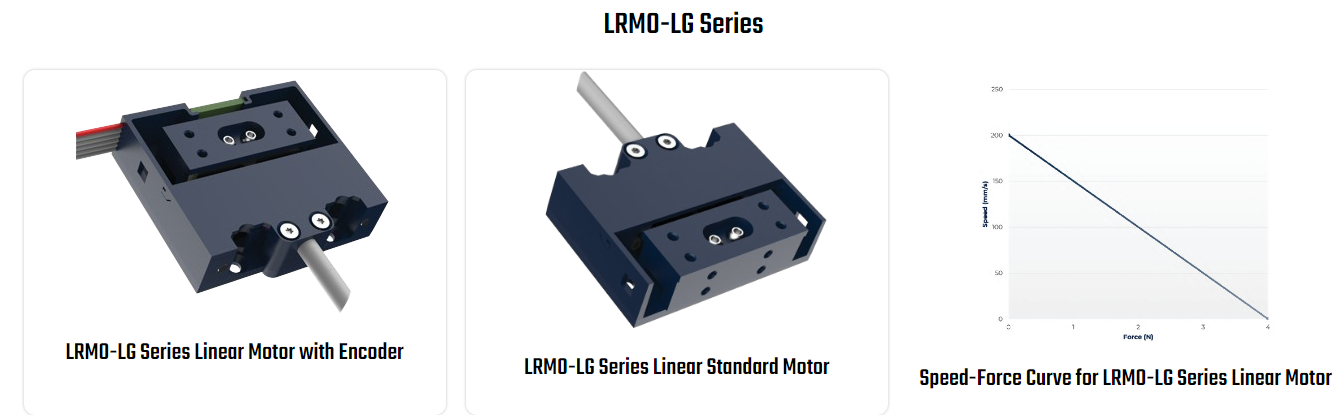

LRMO-LG系列直线压电电机
运动控制选项
Piezo Motor Company的旋转电机可提供工厂预装编码器版本或无编码器版本。亦可提供全闭环系统：运动控制通过电子驱动板实现，该驱动板旨在为用户控制提供经济的接口。
电子驱动板接口支持UART和I2C
驱动PCB支持UART和I2C接口，增强了其适应性。每块板均针对特定电机型号预编程，可实现软件可配置性、优化驱动信号并集成控制功能。用户可通过安装在电机/执行器上的可选编码器进行闭环控制，从而对电机运行进行精细调节。
带Python API的闭环系统
PMC的全新Python API允许将压电电机编码器的反馈信号传输至驱动板，从而实现闭环。可通过MicroUSB端口访问一系列丰富的Python API命令，对电机的位置和速度进行控制。
LRMO-LG系列直线电机的性能与优势
分辨率提升
控制步长仅为0.05 µm，且具备全推力和保持力，这些直线电机每毫米控制步数可达20,000步。
响应速度更快
压电电机在20微秒至30微秒内即可完成第一步并开始运动，而步进电机通常需要约5毫秒才能启动运动。
高力密度
就尺寸和重量而言，这些电机提供了卓越的力密度，尤其与步进电机和丝杠解决方案相比更具优势。
节能降本
压电电机在保持力时功耗为零，低速时功耗极低（1 mm/s时为0.06 W），从而实现非常高效率的整体占空比。
特殊性能
Piezo Motor Company的电机不受EMI和RF干扰影响，且无辐射发射，使其成为一系列敏感应用的理想选择。对于特殊应用（包括MRI），请联系我们的技术团队。
经济型设计
创新设计和专利保护技术封装在稳定的增强热塑性塑料中，使这种高性能自动化产品对OEM设备设计人员而言价格实惠。
轻量化
我们的压电电机不含铜绕组、铁芯叠片或永磁体，单位重量的功率输出显著优于电磁解决方案。这使其非常适合对重量敏感的应用。
MOTOR SPECIFICATIONS
| Specification | Standard | Encoder |
|---|---|---|
| Driver Board P/N | ROLR-LG-PCB | ROLR-LG-CL-PCB |
| Power Supply Voltage | 12 V | 12 V |
| Push/Pull Force | ≥ 4.0 N | ≥ 4.0 N |
| Self-Braking Force | ≥ 4.0 N | ≥ 4.0 N |
| Motor Response Time | ≈30µs | ≈30µs |
| Max Speed | 200 mm/s | 140 mm/s |
| Travel Range | 9.0 mm | 9.0 mm |
| Minimum Linear Step | <0.04 µm | <0.04 µm |
| Encoder Resolution (after quadrature) | N/A | 2.66 µm |
| Minimum Controlled Linear Step | N/A | 2.66 µm |
| Uni-directional Repeatability | N/A | 2.66 µm |
| Linear Backlash at Change of Direction | ≤ 0.1 µm | ≤ 0.1 µm |
| Elastic stiffness | ≈ 220 mN/µm | ≈ 220 mN/µm |
| Linear Hysteresis | ≤ 2.0 µm | ≤ 2.0 µm |
| Pitch | ≤450 µRad | ≤450 µRad |
| Maximum Moment Mx | 0.07 Nm | 0.07 Nm |
| Roll | ≤225 µRad | ≤225 µRad |
| Maximum Moment My | 0.12 Nm | 0.12 Nm |
| Yaw | ≤450 µRad | ≤450 µRad |
| Maximum Moment Mz | 0.9 Nm | 0.9 Nm |
| Vertical Runout | 3.0 µm | 3.0 µm |
| Horizontal Runout | 6.0 µm | 6.0 µm |
| Frequency Response | 4 kHz | 4 kHz |
| Operating Temperature | -20 to 80 °C | -20 to 80 °C |
| Max Current over velocity range | 350 mA | 350 mA |
| Motor Weight | 22 g | 25 g |
| Motor Dimensions | 40x31x11 mm | 40x31x11 mm |
| Driver PCB Dimensions | 40x63x25 mm | 40x63x25 mm |
| Driver PCB Weight | 25 g | 25 g |
| Motor Type | LRMO-LG | LRMO-E-LG |
| Model | LRMO-LG | LRMO-E-LG |
| Part Number | LRMO-011-0280 | LRMO-011-1280 |
| Encoder | without Encoder | with Optical Encoder |
| Enclosure | Plastic Enclosure | Plastic Enclosure |
| Resolution | 50 nm = 20,000 steps per mm of travel | 50 nm = 20,000 steps per mm of travel |
| Max Speed | >0.2 m/s | >0.2 m/s |
| Response Time | < 30 μs | < 30 μs |
| Supply | 12 V DC | 12 V DC |
| Kit Ordering Number | LRMO-LG-KIT | LRMO-E-LG-KIT |
| Part | LRMO-011-0281 | LRMO-011-1281 |
| Supply (Kit) | 110/240 VAC to 12 V DC power adapter | 110/240 V AC to 12 V DC power adapter |
| Includes | Linear motor with Plastic Enclosure; power adapter, cables | Linear Motor with encoder; power adapter, cables |
LRMO-LG Series Ordering Information
| LRMO-LG | LRMO-011-0280 | Linear Motor without Encoder, Plastic Enclosure, Resolution: 50 nm = 20,000 steps per mm of travel, Max Speed: >0.2 m/s, Response Time: < 30 µs, Voltage: 12 V DC | Power Supply Voltage 12.0 V DC Push/Pull Force ≥4.0 N Self-Braking Force ≥4.0 N Motor Response Time < 30 µs Travel Range 9.0 mm Max Speed (continuous mode) ≥200 mm/s Minimum Linear Step <0.05 µm Linear Backlash at Change of Direction n/a Elastic Stiffness n/a Linear Hysteresis n/a Pitch <450 µRad Maximum Moment Mx 0.07 Nm Roll <225 µRad Maximum Moment My 0.12 Nm Yaw <450 µRad Maximum Moment Mz 0.9 Nm Vertical Runout 3.0 µm Horizontal Runout 6.0 µm Frequency Response 4 kHz Operating Temperature -20 °C to 80 °C Maximum Load (at listed specification) 400 g Maximum Tolerable Load 4.2 kgf Max Current (continuous mode) 350 mA Max. Current at the velocity 10mm/s (PWM mode) 30-40 mA Motor Weight 22 g Motor Dimensions 40x31x11 mm |
| LRMO-LG-KIT | LRMO-011-0281 | Linear Motor Evaluation Kit without Encoder, Includes; Linear motor with Plastic Enclosure, Resolution: 50 nm = 20,000 steps per mm of travel, Max Speed: >0.2 m/s, Response Time: < 30 µs, 110/240 VAC to12 V DC power adapter, cables | Power Supply Voltage 12.0 V DC Push/Pull Force ≥4.0 N Self-Braking Force ≥4.0 N Motor Response Time < 30 µs Travel Range 9.0 mm Max Speed (continuous mode) ≥200 mm/s Minimum Linear Step <0.05 µm Linear Backlash at Change of Direction n/a Elastic Stiffness n/a Linear Hysteresis n/a Pitch <450 µRad Maximum Moment Mx 0.07 Nm Roll <225 µRad Maximum Moment My 0.12 Nm Yaw <450 µRad Maximum Moment Mz 0.9 Nm Vertical Runout 3.0 µm Horizontal Runout 6.0 µm Frequency Response 4 kHz Operating Temperature -20 °C to 80 °C Maximum Load (at listed specification) 400 g Maximum Tolerable Load 4.2 kgf Max Current (continuous mode) 350 mA Max. Current at the velocity 10mm/s (PWM mode) 30-40 mA Motor Weight 22 g Motor Dimensions 40x31x11 mm |
| LRMO-E-LG | LRMO-011-1280 | Linear Motor with optical Encoder, Plastic Enclosure, Resolution: 50 nm = 20,000 steps per mm of travel, Max Speed: >0.2 m/s, Response Time: < 30 µs, 12 V DC | Power Supply Voltage 12.0 V DC Push/Pull Force ≥4.0 N Self-Braking Force ≥4.0 N Motor Response Time < 30 µs Travel Range 9.0 mm Max Speed (continuous mode) ≥200 mm/s Minimum Linear Step <0.05 µm Encoder resolution after quadrature 2.66 µm, Minimum Controlled step 2.66 µm, Unidirectional repeatability 2.66 µm Linear Backlash at Change of Direction n/a Elastic Stiffness n/a Linear Hysteresis n/a Pitch <450 µRad Maximum Moment Mx 0.07 Nm Roll <225 µRad Maximum Moment My 0.12 Nm Yaw <450 µRad Maximum Moment Mz 0.9 Nm Vertical Runout 3.0 µm Horizontal Runout 6.0 µm Frequency Response 4 kHz Operating Temperature -20 °C to 80 °C Maximum Load (at listed specification) 400 g Maximum Tolerable Load 4.2 kgf Max Current (continuous mode) 350 mA Max. Current at the velocity 10mm/s (PWM mode) 30-40 mA Motor Weight 25 g Motor Dimensions 40x34x11 mm |
| LRMO-E-LG-KIT | LRMO-011-1281 | Linear Motor Evaluation Kit with optical Encoder, Includes; Linear Motor with encoder, Plastic Enclosure, Resolution: 50 nm = 20,000 steps per mm of travel, Max Speed: >0.2 m/s, Response Time: < 30 µs, 110/240 V AC to 12 V DC power adapter, cables | Power Supply Voltage 12.0 V DC Push/Pull Force ≥4.0 N Self-Braking Force ≥4.0 N Motor Response Time < 30 µs Travel Range 9.0 mm Max Speed (continuous mode) ≥200 mm/s Minimum Linear Step <0.05 µm Encoder resolution after quadrature 2.66 µm, Minimum Controlled step 2.66 µm, Unidirectional repeatability 2.66 µm Linear Backlash at Change of Direction n/a Elastic Stiffness n/a Linear Hysteresis n/a Pitch <450 µRad Maximum Moment Mx 0.07 Nm Roll <225 µRad Maximum Moment My 0.12 Nm Yaw <450 µRad Maximum Moment Mz 0.9 Nm Vertical Runout 3.0 µm Horizontal Runout 6.0 µm Frequency Response 4 kHz Operating Temperature -20 °C to 80 °C Maximum Load (at listed specification) 400 g Maximum Tolerable Load 4.2 kgf Max Current (continuous mode) 350 mA Max. Current at the velocity 10mm/s (PWM mode) 30-40 mA Motor Weight 25 g Motor Dimensions 40x34x11 mm |
Driver Boards – LRMO-LG Series
| ROLR-LG-PCB | ROLR-LG-PCB | Standard 12 VDC Driver board for ROMO-LG and LRMO-LG | Standard 12 VDC Driver board for ROMO-LG and LRMO-LG |
| ROLR-LG-CL-PCB | ROLR-LG-CL-PCB | Close-Loop Driver PCB 12 VDC for use with ROMO-E-LG and LRMO-E-LG | Close-Loop Driver PCB 12 VDC for use with ROMO-E-LG and LRMO-E-LG |
