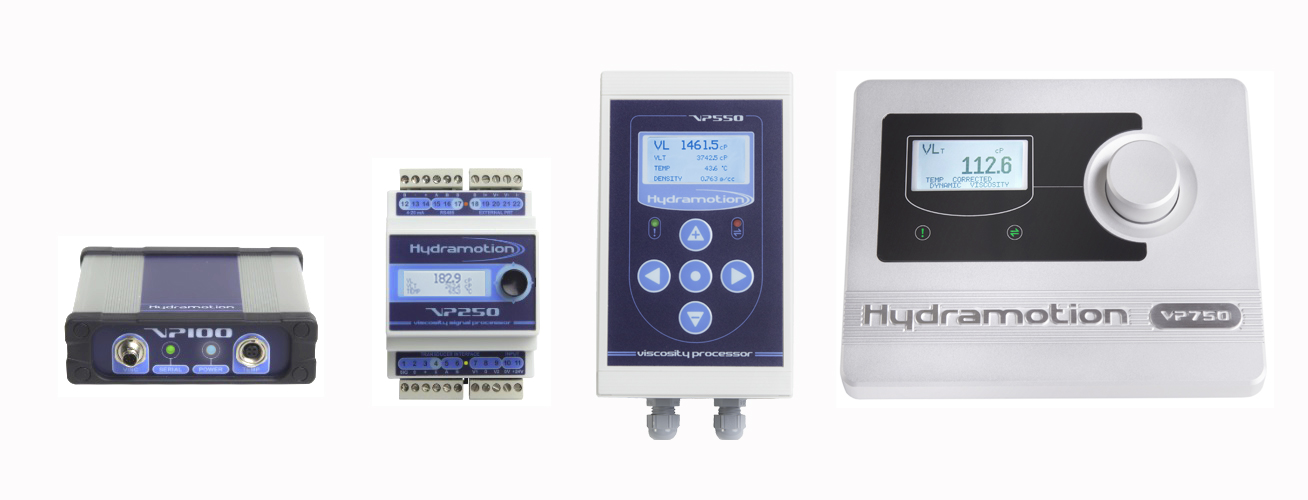

VP系列变送器

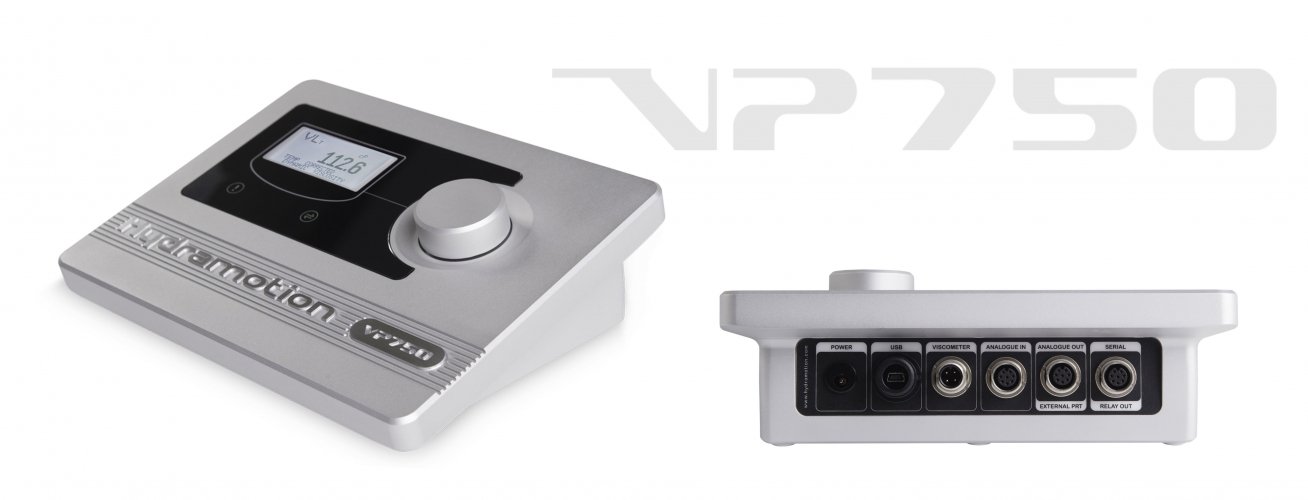

VP750 VISCOSITY PROCESSOR SPECIFICATION

VISCOMETER LINK

Sensor Data Link Digital data link and sensor power for Hydramotion viscometers

DISPLAY

Large character backlit matrix LCD display

DISPLAY UNITS

Viscosity User selectable cP, P, mPa.s, Pa.s
Temperature/Pressure User selectable metric / imperial

LED INDICATORS

Sensor Data Link Status Indicates sensor data traffic (red/green)
Alarm Status Indicates measurement system alarm status (red/green)

OUTPUTS

Analog (3) 3 × 4-20mA configurable, representing viscosity, ref. viscosity, or temperature
Alarm Contacts (2) 2 x volt free completely assignable
Digital Data Port RS485 ModBus Data Link to host system or PC running ViscoLink
USB USB II Data Interface

INPUTS

Analog (3) External temperature 4-wire RTD or 4-20mA – user assignable
Density 4-20mA
Pressure 4-20mA

CONNECTIONS

I/O Connectors Field rewirable Binder connectors

POWER

Power Consumption 24 V DC @ 150mA

DIMENSIONS

H 174mm x W 224mm x D 70mm

ENCLOSURE MATERIAL

Machined from high grade Al 6082 Alloy

WEIGHT

1.7Kg

SOFTWARE

ViscoLink data viewing and logging PC software
As it is Hydramotion’s policy to continuously develop and improve its products, some specifications may change without notice

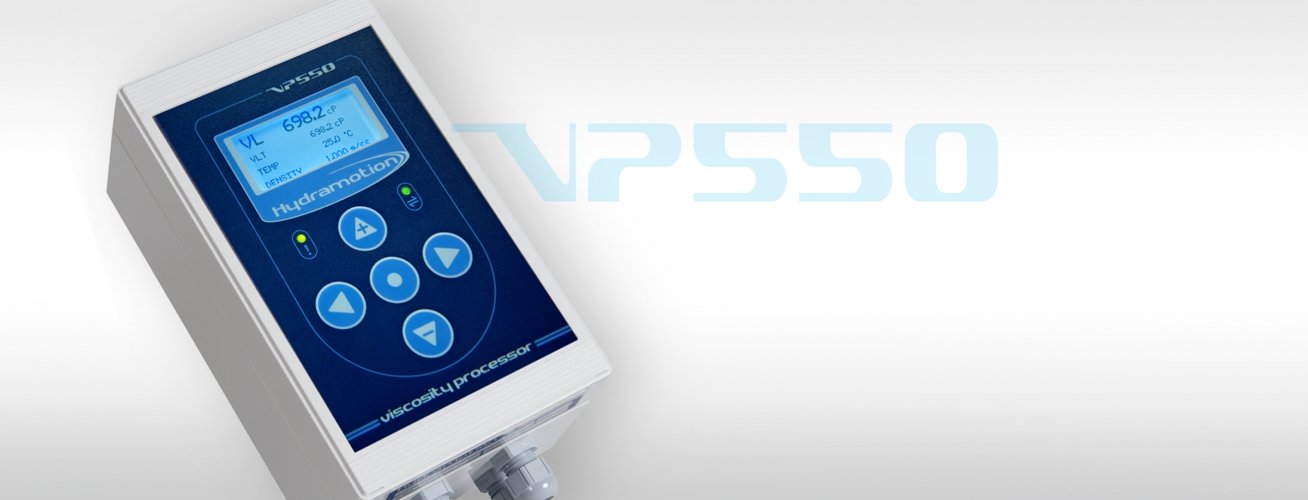

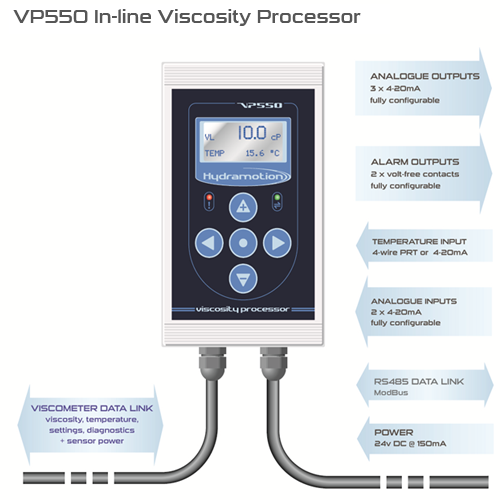

VP550 IN-LINE VISCOSITY PROCESSOR SPECIFICATION

VISCOMETER LINK

Sensor Data Link Digital data link and sensor power for Hydramotion viscometers

DISPLAY

Large character backlit matrix LCD display

DISPLAY UNITS

Viscosity User selectable cP, P, mPa.s, Pa.s
Temperature/Pressure User selectable metric / imperial

LED INDICATORS

Sensor Data Link Status Indicates sensor data traffic (red/green)
Alarm Status Indicates measurement system alarm status (red/green)

OUTPUTS

Analog (3) 3 × 4-20mA configurable, representing viscosity, ref. viscosity, or temperature
Alarm Contacts (2) 2 x volt free completely assignable
Digital RS485 ModBus Data Link to host system or PC running ViscoLink
USB USB II Interface (VP550L)

INPUTS

Analog (3) External temperature 4-wire RTD or 4-20mA – user assignable
2 × 4-20mA

CONNECTIONS

I/O Connectors Field rewirable Binder connectors

POWER

Power Consumption 24 V DC @ 150mA

DIMENSIONS

H 200mm x W 120mm x D 90mm

ENCLOSURE MATERIAL

Polycarbonate

MOUNTING

Surface or panel mounting

WEIGHT

920g

INGRESS PROTECTION

IP65

SOFTWARE

ViscoLink data viewing and logging PC software
As it is Hydramotion’s policy to continuously develop and improve its products, some specifications may change without notice

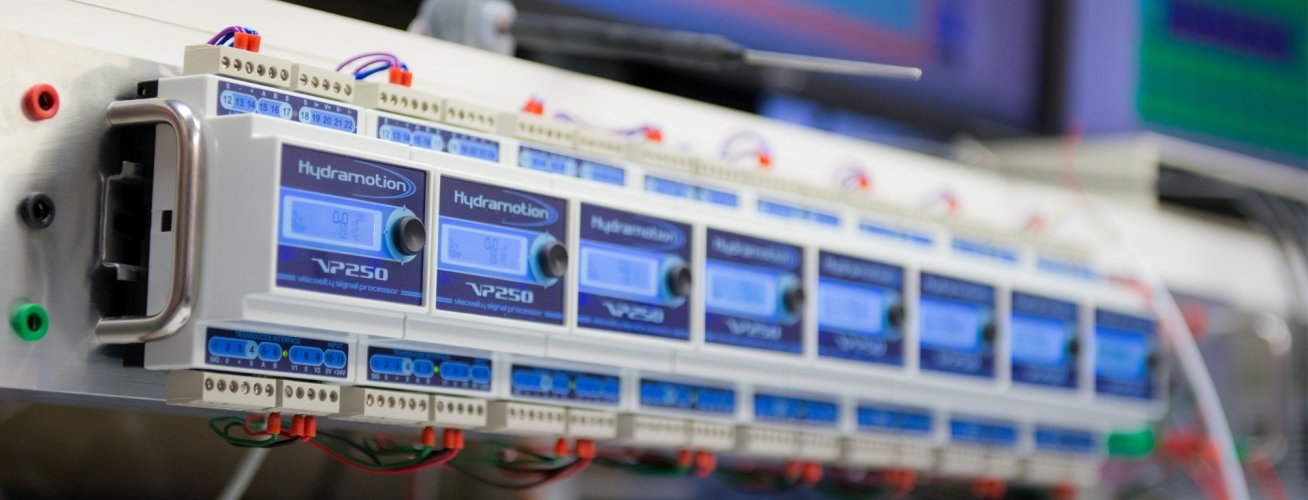

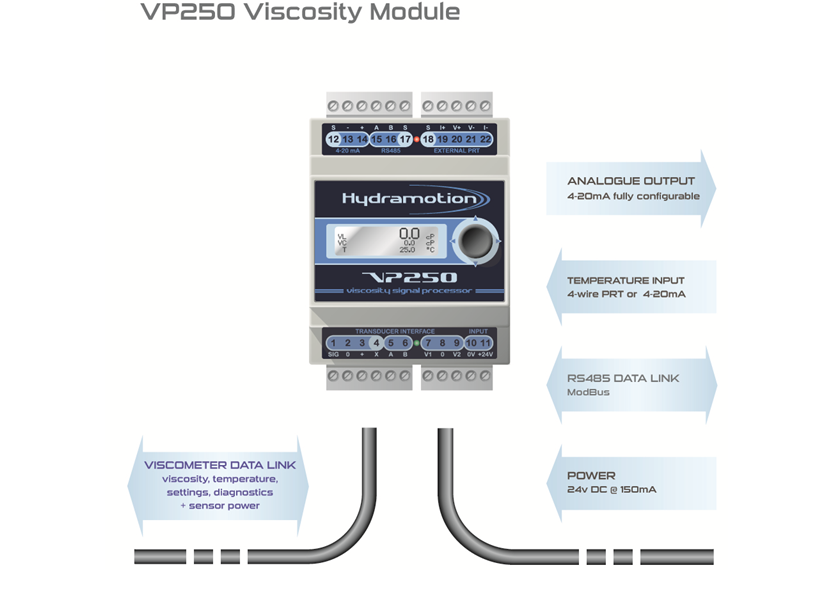

VP250 VISCOSITY MODULE SPECIFICATION

VISCOMETER LINK

Sensor Data Link Digital data link and sensor power for ViscoJet viscometers

DISPLAY

Large character backlit matrix LCD display

DISPLAY UNITS

Viscosity User selectable cP, P, mPa.s, Pa.s
Temperature/Pressure User selectable metric / imperial

OUTPUTS

Analog 4-20mA configurable, representing viscosity, ref. viscosity, or temperature
Sensor Data Link Status RS485 ModBus Data Link to host system or PC running ViscoLink

INPUTS

Analog External temperature 4-wire RTD

POWER

Power Consumption 24 V DC @ 150mA

DIMENSIONS

H 60mm x W 70mm x D 86mm

ENCLOSURE MATERIAL

Polycarbonate

MOUNTING

Top-hat DIN EN60715 rail

WEIGHT

160g

SOFTWARE

ViscoLink data viewing and logging PC software
As it is Hydramotion’s policy to continuously develop and improve its products, some specifications may change without notice
