HYPERVISC SPECIFICATION
|
|
|
|

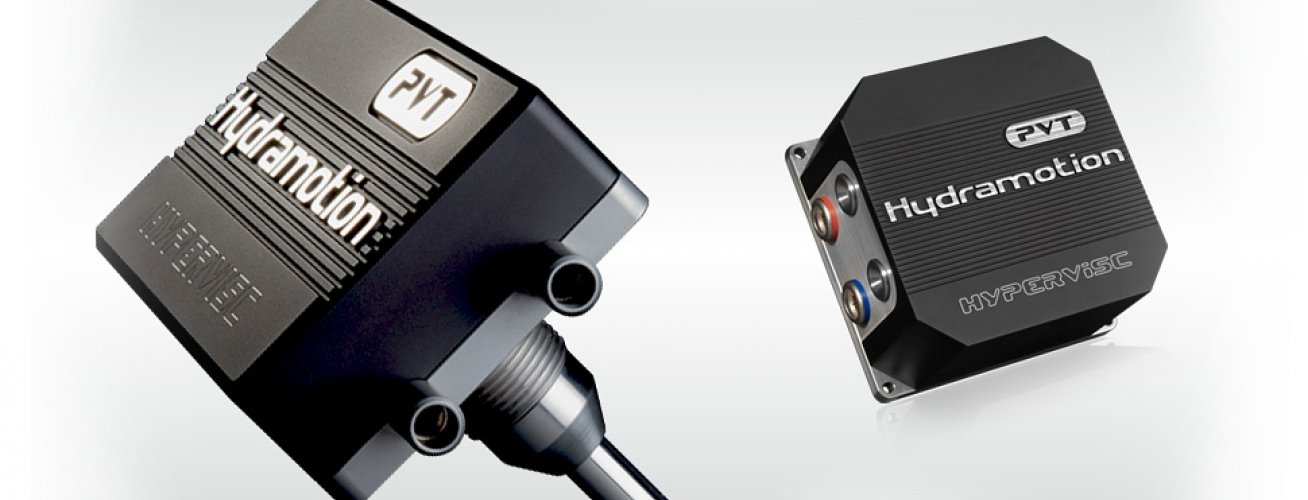

HV1 SENSOR
|
|
|
PERFORMANCE
|
Viscosity Range |
0 – 10,000+ cP in one single range |
|
Measurement Time |
1 second |
|
Accuracy |
1% of reading or +/- 0.1cP |
|
Repeatability |
0.3% of reading or +/- 0.05cP |
TEMPERATURE
|
Standard Ranges (3) |
-50 °C to 250 °C, 300 °C, 350 °C |
|
Extended Range |
Temperature greater than 350 °C to order * |
|
Measured Temperature |
Integral thermometer |
PRESSURE
|
Standard Ranges (3) |
690bar (10,000psi), 1380bar (20,000psi), 2070bar (30,000psi) |
|
Extended Range |
Higher pressure to order * |
SAMPLE SIZE
|
Standard |
4ml |
|
Special |
Reduce volume to order * |
PROCESS CONNECTION
|
Standard Fitting |
HIP HF4 |
|
Special Fitting |
Non-standard process connection to order * |
CONSTRUCTION
|
All welded, crevice-free |
MATERIALS
|
Sensor |
Alloy C276 (EN 2.4819) |
|
Measurement Cell Options |
Alloy C22 (EN 2.4602) |
|
|
Alloy C276 (EN 2.4819) |
|
Special Materials |
Non-standard materials to order * |
SURFACE FINISH
|
Standard |
N5 0.4 Ra |
|
Options |
Electropolished |
|
|
Electroplated |
|
Special Finish |
Non-standard finish options and coatings to order * |
|
|
|

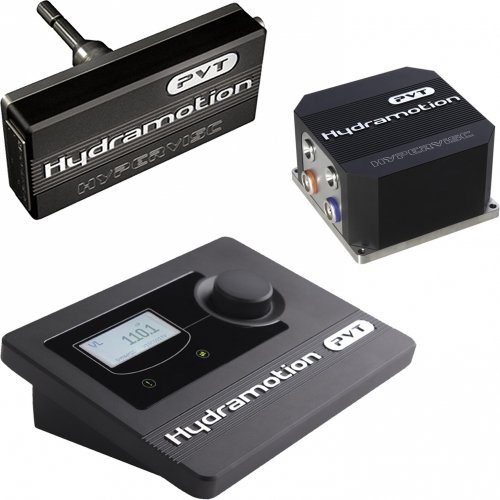

HV750 PROCESSOR
|
|
|
DISPLAY
|
|
Large character backlit matrix LCD display |
DISPLAY UNITS
|
Viscosity |
User selectable cP, P, mPa.s, Pa.s |
|
Temperature/Pressure |
User selectable metric / imperial |
LED INDICATORS
|
Sensor Data Link Status |
Indicates sensor data traffic (red/green) |
|
Alarm Status |
Indicates measurement system alarm status (red/green) |
OUTPUTS
|
Analog (3) |
3 × 4-20mA user assignable |
|
Digital Data Port |
RS485 ModBus Data Link to host system or PC running ViscoLink |
|
USB |
USB II Data Interface |
INPUTS
|
Analog (3) |
Pressure 4-20mA |
|
|
Optional external temperature 4-wire RTD or 4-20mA – user assignable |
|
|
Optional density 4-20mA |
CONNECTIONS
|
I/O Connectors |
Field rewirable Binder connectors |
POWER
|
Power Consumption |
24 V DC @ 150mA |
DIMENSIONS
|
|
H 174mm x W 224mm x D 70mm |
ENCLOSURE MATERIAL
|
|
Machined from high grade Al 6082 Alloy |
WEIGHT
|
|
1.7Kg |
SOFTWARE
|
ViscoLink data viewing and logging PC software |
|
|
|
|
* SPECIAL OPERATIONS
|
Custom variations to instrument specification and dimensions routinely provided by our dedicated Special Operations division |
|
|
|
| As it is Hydramotion’s policy to continuously develop and improve its products, some specifications may change without notice |
