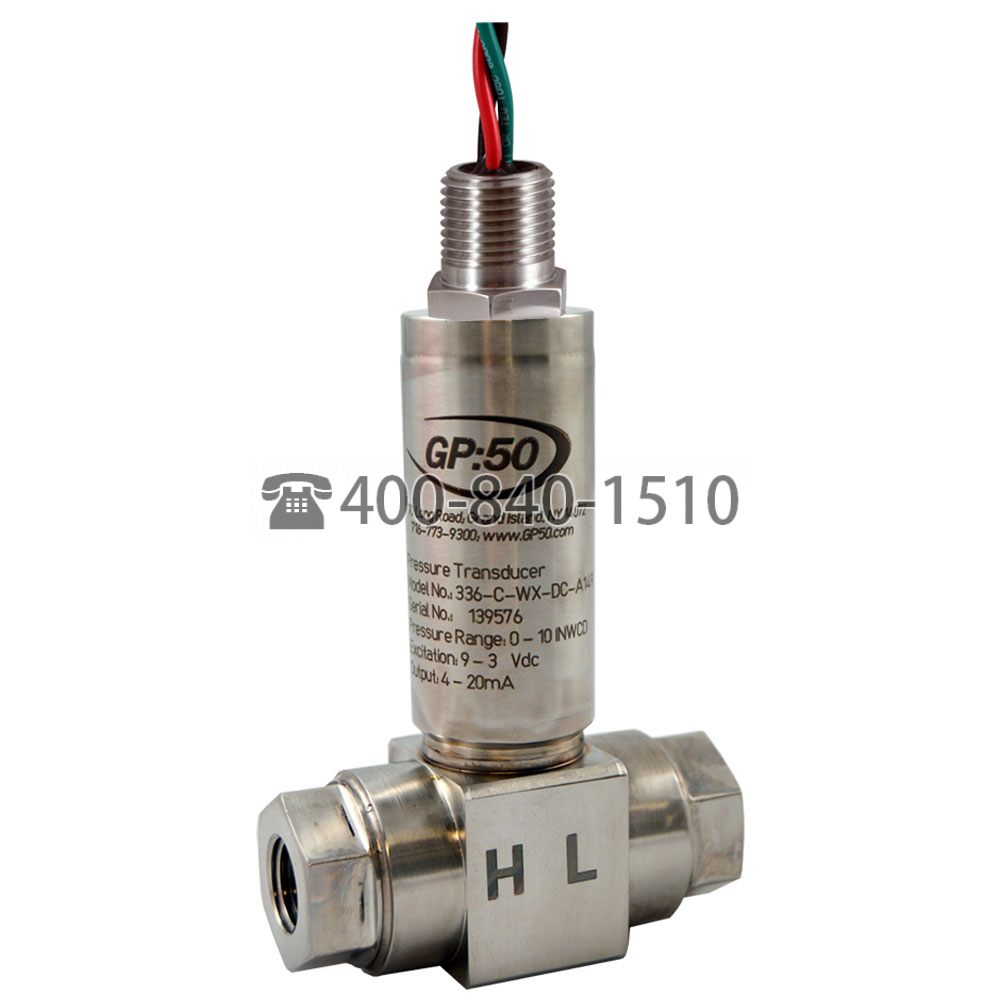

Compact High-Accuracy Differential Pressure Transducer
紧凑型高精度差压传感器
Model 136/236/336-AI/AF
GP:50 的 136/236/336-AI/AF 型是一个高精度数字补偿差压传感器系列。136/236/336-AI/AF 型可测量低至 20” WCD 的压差范围和高达 1000 PSID (69 BAR) 的管道压力,体积小巧。客户还可以从多种精度、数字输出、过程和电气连接中进行选择。
特征:
• Compact design 紧凑的设计
• Up to ±0.05% FSO accuracy 高达±0.05%
• 1 PSID thru 500 PSID (0.1 thru 35 BAR D) 1个PSID到500个PSID(0.1到35BARD)
• Line pressure up to 1000 PSI (69 BAR) 管线压力高达1000PSI(69BAR)
• All-welded 316L stainless steel wetted parts 全焊接316L不锈钢润湿件
• High shock and vibration resistance 高冲击和振动
• Fast response time 快速响应时间
应用:
- Liquefied natural gas (LNG) transport and storage
- Automotive test stands
- Aircraft engine test stands
- Flow measurements
- Filtration
- Tank level
- Leak testing
选型:
- Accuracy options to ±0.05% FSO
- Digital output options; CAN Bus, USB, RS-485 & RS-232
- Comprehensive selection of process and electrical connections
