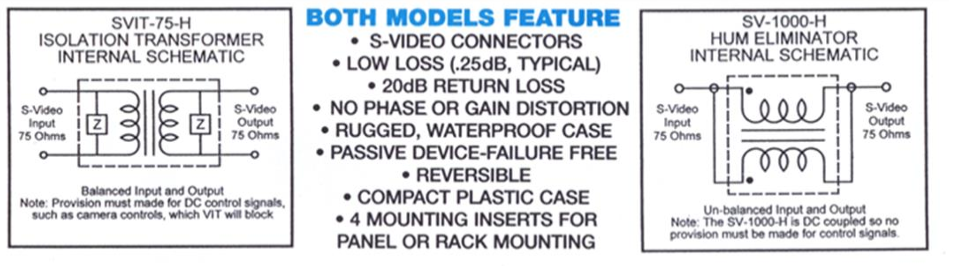

这是一款“True”S-VIDEO隔离变压器,可在没有直流连接的情况下断开接地回路。视频隔离最小为100M欧姆,带宽超过8MHz。
Product Specifications
General Parameters: | |
---|---|
Bandwidth: | 10 Hz to 8 MHz |
Insertion Loss: | <.6dB@ 3.58 MHz |
Box Size: | 5 x 4 x 2 Inches |
Weight: | 2 lbs |
Amplitude Matching: | <.1dB |
Luminance Non-Linearity: | <.1% |
VSWR: | > 1:5:1 to 4.2 MHz |
Dielectric Withstanding Voltage: | 500 V |
Input: | ± 1 Volt |
