用于电池火灾预防的UTC-SD Fire
锂离子电池用于电动汽车（汽车、公交车、自行车和滑板车）以及常见的电子设备（智能手机、电脑等），在仓储、废物分拣和回收场所中，其火灾风险已被证实且广为人知。这类火灾非常猛烈且难以控制，令制造商和地方政府感到担忧。
为了帮助预防锂离子电池的火灾风险，Wintech Groupe开发了一款独特的监控设备：UTC（极限温度控制）。UTC热成像摄像机可自主、连续运行，能够检测任何异常（过热）并在火灾发生前启动预防措施。

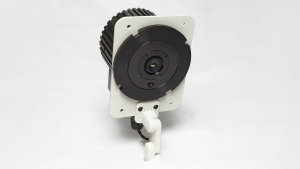

UTC-SD FIRE型热成像摄像机的特性

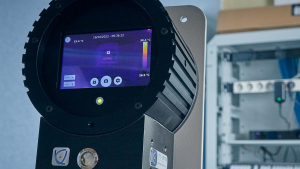

UTC（极限温度控制）是一款紧凑型热成像检测系统。UTC-SD Fire 配备广角镜头（115°），可覆盖 0.15 米至 10 米的距离。作为光电子技术的尖端产品，该设备可全年 365 天、每周 7 天、每天 24 小时自主运行。如果超过预设温度阈值，UTC-SD Fire 会立即通过短信或电子邮件触发警报，并附上观测场景的照片（热像图）。该火灾风险预防系统可轻松快速地安装。它附带直观且易于使用的软件：UTC-SYS（嵌入设备）和 UTC-SUPERVISION（安装在联网计算机上）。
UTC-SD FIRE型用于锂离子电池存储监控的使用范围
为确保对锂离子电池存储区域进行全面监控，可以安装多个 UTC-SD 设备（数量根据需覆盖的区域确定）。得益于其紧凑的尺寸和先进的功能，UTC-SD FIRE 能够适应仓库、分拣中心或回收场所的各种限制条件。
| Data | Specifications |
|---|---|
| IR Resolution | 160×120 |
| Thermal sensibility | <60 mK to 60 Hz |
| Field of vision | Subject field 42cm x 25cm to 15 cm – F-Theta Fisheyes – total field angle 115° |
| Focus | Set |
| Focal distance – Aperture | 1.52mm – F/1.2 |
| WIFI | No |
| Detector | Uncooled microbolometer 160×120 |
| Screen | LCD colour 480×800 |
| Image frequency | Up to 30 Hz |
| Imaging mode | IR Image |
| Measured temperature range | -25°C to 200°C |
| Precision | T = ±2.5°C on the entire range |
| Measurement area | Detection on the entire covered area – tracking of hot points in a box with temperature and date display |
| Alarm | Flashing triangle on the screen + alarm sound (70db at 1m) + Photo dispatch (thermogram) |
| Emissivity management | Yes |
| Colour palettes | Inferno |
| Configuration features | Date, time, language and unit control according to country of use |
| Local storage capacity | 16 Gb |
| Storage mode | Flash-Server memory |
| File formats | TIFF |
| Data | Specifications |
|---|---|
| Wavelength | 8-12µm |
| Ingress Protection (IP) | IP65 |
| Detection Coverage | 15cm-8m |
| Visualisation | <10m |
| MTF | 30cy/mm |
| Distorsion | 5.88% |
| Power Supply | Ethernet (POE+ : 42.5-57 VDC) |
| Status Indicator | Bi-colour LED |
| Cable | Male ethernet (RJ45) |
| On-board software | UTC-SYS |
| Web software | UTC-Supervision |
| Server software | UTC-Server (hosting optional) |
| Dimensions – Weights | 277 x 150 x 118 mm Unplugged without protective cap: 277 x 150 x 133 mm < 2 kg |
| Guarantee | 3 years, option for extension to 5 years |
| Manufacturing | Made in France |
| Standard | CE – IEC62271-1 – HN64-S-52 |
| Range Type | FIRE |
| Options | Equipment: Stands, cables, etc. |
