Usdigital DISK-1透射式旋转编码器码盘、1英寸透射式旋转编码器码盘、旋转编码器码盘、US Digital旋转编码器码盘

US Digital提供多种标准旋转编码器码盘。这些码盘可作为独立码盘或带轴套码盘订购。这些旋转编码器码盘采用Mylar聚酯薄膜制成，具有较宽的工作温度范围。

32 CPR（每转脉冲数）规格仅提供无索引版本（NE）；1250 CPR及以下的其他分辨率可订购带索引或不带索引版本；而2000 CPR及以上的分辨率仅提供带索引版本（IE）。

光学编码器旋转码盘和光学编码器模块的机械对准图纸可查阅（参见EM1和EM2页面）。

Inside Diameter (ID) tolerance	±0.004″
Outside Diameter (OD)	1″ ± 0.010 in.
Thickness	0.007″
Temperature Range	-40C to 100C

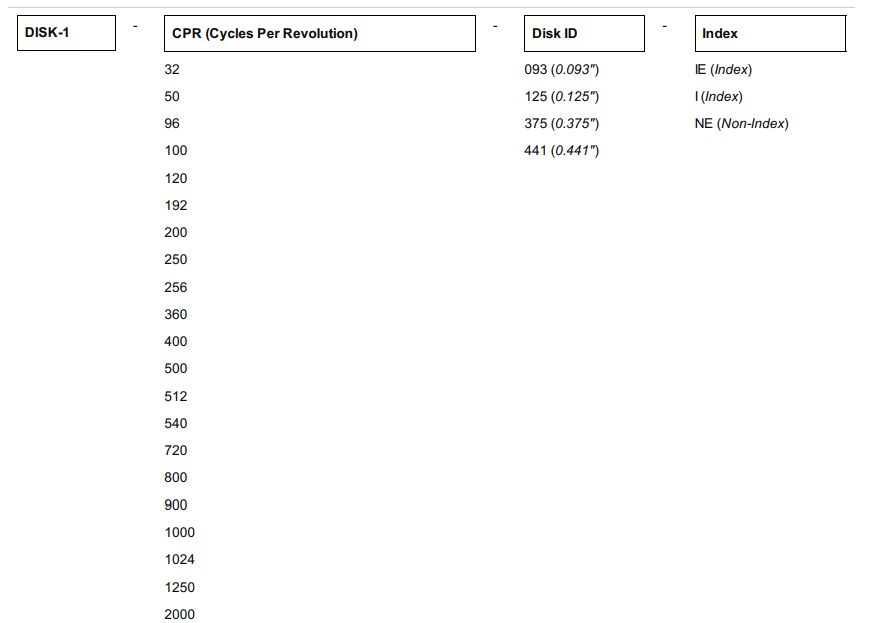

CPR	1″ DISK Non-Index	MODULE Non-Index	1″ DISK Index	MODULE Index
32	DISK-1-32-*-NE	EM1-1-32-N
50	DISK-1-50-*-NE	EM1-1-50-N	DISK-1-50-*-IE	EM1-1-50-I
96	DISK-1-96-*-NE	EM1-1-100-N	DISK-1-96-*-IE	EM1-1-100-I
100	DISK-1-100-*-NE	EM1-1-100-N	DISK-1-100-*-IE	EM1-1-100-I
120	DISK-1-120-*-NE	EM1-1-100-N
200	DISK-1-200-*-NE	EM1-1-200-N	DISK-1-200-*-IE	EM1-1-200-I
192	DISK-1-192-*-NE	EM1-1-200-N	DISK-1-192-*-IE	EM1-1-200-I
250	DISK-1-250-*-NE	EM1-1-250-N	DISK-1-250-*-IE	EM1-1-250-I
256	DISK-1-256-*-NE	EM1-1-250-N	DISK-1-256-*-IE	EM1-1-250-I
360	DISK-1-360-*-NE	EM1-1-360-N	DISK-1-360-*-IE	EM1-1-360-I
400	DISK-1-400-*-NE	EM1-1-400-N	DISK-1-400-*-IE	EM1-1-400-I
500	DISK-1-500-*-NE	EM1-1-500-N	DISK-1-500-*-IE	EM1-1-500-I
512	DISK-1-512-*-NE	EM1-1-512-N	DISK-1-512-*-IE	EM1-1-512-I
540	DISK-1-540-*-NE	EM1-1-540-N	DISK-1-540-*-IE	EM1-1-540-I
720	DISK-1-720-*-NE	EM1-1-720-N	DISK-1-720-*-IE	EM1-1-720-I
800	DISK-1-800-*-NE	EM1-1-800-N	DISK-1-800-*-IE	EM1-1-800-I
1000	DISK-1-1000-*-NE	EM1-1-1000-N	DISK-1-1000-*-IE	EM1-1-1000-I
1024	DISK-1-1024-*-NE	EM1-1-1024-N	DISK-1-1024-*-IE	EM1-1-1024-I
1250	DISK-1-1250-*-NE	EM1-1-1250-N	DISK-1-1250-*-IE	EM1-1-1250-I
2000			DISK-1-2000-*-IE	EM2-1-2000-I
2048			DISK-1-2048-*-IE	EM2-1-2048-I
2500			DISK-1-2500-*-IE	EM2-1-2500-I
4000			DISK-1-4000-*-IE	EM2-1-4000-I
4096			DISK-1-4096-*-IE	EM2-1-4096-I
5000			DISK-1-5000-*-IE	EM2-1-5000-I
