Twintec快接头
最适合每个接头只有一种尺寸的管道的情况。
推动连接歧管消除了安装配件的附加步骤，节省了时间，同时增加了简单性。我们的推接配件适用于普通管材，如尼龙和聚氨酯。

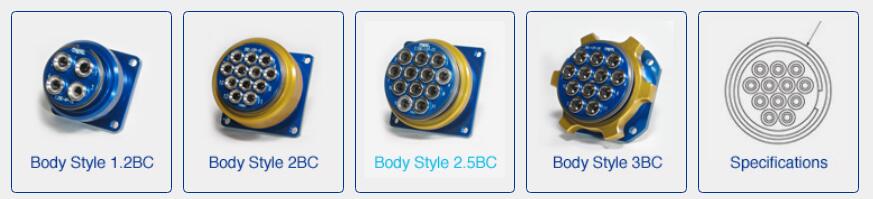

一键连接阀组有四种阀体样式，1.2英寸系列最多4个端口，2英寸系列最多12个端口，2.5英寸系列最多19个端口，3英寸系列最多24个端口。可用端口为1/8英寸、5/32英寸、1/4英寸和3/8英寸。公制可提供4mm、6mm、8mm和10mm端口。
| Tube OD |
# Tubes |
Assembly | Plug (Male) |
Socket (Female) |
Plug cover |
Socket cover |
 |
|
|---|---|---|---|---|---|---|---|---|
 |
4 | 1.2BC-4-12 | CAD | 1.2BC-4P-12 | 1.2BC-4S-12 | 1.2-DCP | 1.2-DCS | 1.2JA |
| 10 | 2BC-10-12 | CAD | 2BC-10P-12 | 2BC-10S-12 | 2-DCP | 2-DCS | 2JA | |
| 12 | 2BC-12-12 | CAD | 2BC-12P-12 | 2BC-12S-12 | 2-DCP | 2-DCS | 2JA | |
| 14 | 2.5BC-14-12 | CAD | 2.5BC-14P-12 | 2.5BC-14S-12 | 2.5-DCP | 2.5-DCS | 2.5JA | |
| 16 | 2.5BC-16-12 | CAD | 2.5BC-16P-12 | 2.5BC-16S-12 | 2.5-DCP | 2.5-DCS | 2.5JA | |
| 19 | 2.5BC-19-12 | CAD | 2.5BC-19P-12 | 2.5BC-19S-12 | 2.5-DCP | 2.5-DCS | 2.5JA |
 |
4 | 1.2BC-4-16 | CAD | 1.2BC-4P-16 | 1.2BC-4S-16 | 1.2-DCP | 1.2-DCS | 1.2JA |
| 5 | 1.2BC-5-16 | CAD | 1.2BC-5P-16 | 1.2BC-5S-16 | 1.2-DCP | 1.2-DCS | 1.2JA | |
| 8 | 2BC-8-16 | CAD | 2BC-8P-16 | 2BC-8S-16 | 2-DCP | 2-DCS | 2JA | |
| 10 | 2BC-10-16 | CAD | 2BC-10P-16 | 2BC-10S-16 | 2-DCP | 2-DCS | 2JA | |
| 12 | 2BC-12-16 | CAD | 2BC-12P-16 | 2BC-12S-16 | 2-DCP | 2-DCS | 2JA | |
| 14 | 2.5BC-14-16 | CAD | 2.5BC-14P-16 | 2.5BC-14S-16 | 2.5-DCP | 2.5-DCS | 2.5JA | |
| 16 | 2.5BC-16-16 | CAD | 2.5BC-16P-16 | 2.5BC-16S-16 | 2.5-DCP | 2.5-DCS | 2.5JA | |
| 19 | 2.5BC-19-16 | CAD | 2.5BC-19P-16 | 2.5BC-19S-16 | 2.5-DCP | 2.5-DCS | 2.5JA | |
| 22 | 3BC-22-16 | CAD | 3BC-22P-16 | 3BC-22S-16 | 3-DCP | 3-DCS | 3JA | |
| 24 | 3BC-24-16 | CAD | 3BC-24P-16 | 3BC-24S-16 | 3-DCP | 3-DCS | 3JA |
 |
6 | 2BC-6-25 | CAD | 2BC-6P-25 | 2BC-6S-25 | 2-DCP | 2-DCS | 2JA |
| 8 | 2BC-8-25 | CAD | 2BC-8P-25 | 2BC-8S-25 | 2-DCP | 2-DCS | 2JA | |
| 12 | 2.5BC-12-25 | CAD | 2.5BC-12P-25 | 2.5BC-12S-25 | 2.5-DCP | 2.5-DCS | 2.5JA | |
| 16 | 3BC-16-25 | CAD | 3BC-16P-25 | 3BC-16S-25 | 3-DCP | 3-DCS | 3JA | |
| 19 | 3BC-19-25 | CAD | 3BC-19P-25 | 3BC-19S-25 | 3-DCP | 3-DCS | 3JA | |
| 22 | 3BC-22-25 | CAD | 3BC-22P-25 | 3BC-22S-25 | 3-DCP | 3-DCS | 3JA | |
| 24 | 3BC-24-25 | CAD | 3BC-24P-25 | 3BC-24S-25 | 3-DCP | 3-DCS | 3JA |
 |
4 | 2BC-4-38 | CAD | 2BC-4P-38 | 2BC-4S-38 | 2-DCP | 2-DCS | 2JA |
| 6 | 2.5BC-6-38 | CAD | 2.5BC-6P-38 | 2.5BC-6S-38 | 2.5-DCP | 2.5-DCS | 2.5JA | |
| 12 | 3BC-12-38 | CAD | 3BC-12P-38 | 3BC-12S-38 | 3-DCP | 3-DCS | 3JA |
 |
4 | 2BC-4-6MM | CAD | 2BC-4P-6MM | 2BC-4S-6MM | 2-DCP | 2-DCS | 2JA |
| 6 | 2BC-6-6MM | CAD | 2BC-6P-6MM | 2BC-6S-6MM | 2-DCP | 2-DCS | 2JA | |
| 8 | 2BC-8-6MM | CAD | 2BC-8P-6MM | 2BC-8S-6MM | 2-DCP | 2-DCS | 2JA | |
| 12 | 2.5BC-12-6MM | CAD | 2.5BC-12P-6MM | 2.5BC-12S-6MM | 2.5-DCP | 2.5-DCS | 2.5JA | |
| 19 | 3BC-19-6MM | CAD | 3BC-19P-6MM | 3BC-19S-6MM | 3-DCP | 3-DCS | 3JA | |
| 22 | 3BC-22-6MM | CAD | 3BC-22P-6MM | 3BC-22S-6MM | 3-DCP | 3-DCS | 3JA | |
| 24 | 3BC-24-6MM | CAD | 3BC-24P-6MM | 3BC-24S-6MM | 3-DCP | 3-DCS | 3JA |
 |
4 | 2BC-4-8MM | CAD | 2BC-4P-8MM | 2BC-4S-8MM | 2-DCP | 2-DCS | 2JA |
| 6 | 2.5BC-6-8MM | 2.5BC-6P-8MM | 2.5BC-6S-8MM | 2.5-DCP | 2.5-DCS | 2.5JA | ||
| 8 | 2.5BC-8-8MM | 2.5BC-8P-8MM | 2.5BC-8S-8MM | 2.5-DCP | 2.5-DCS | 2.5JA | ||
| 12 | 3BC-12-8MM | CAD | 3BC-12P-8MM | 3BC-12S-8MM | 3-DCP | 3-DCS | 3JA |
 |
6 | 2.5BC-6-10MM | CAD | 2.5BC-6P-10MM | 2.5BC-6S-10MM | 2.5-DCP | 2.5-DCS | 2.5JA |
| 10 | 3BC-10-10MM | CAD | 3BC-10P-10MM | 3BC-10S-10MM | 3-DCP | 3-DCS | 3JA | |
| 12 | 3BC-12-10MM | CAD | 3BC-12P-10MM | 3BC-12S-10MM | 3-DCP | 3-DCS | 3JA |
