Spectrogon窄带宽滤波片NB-1722-025nm中心波长1722nm
Spectrogon开发和制造光学滤波器和其他薄膜涂层以及用于各种应用和工业的全息光栅。
Data collection range: 1000 – 2050 nm

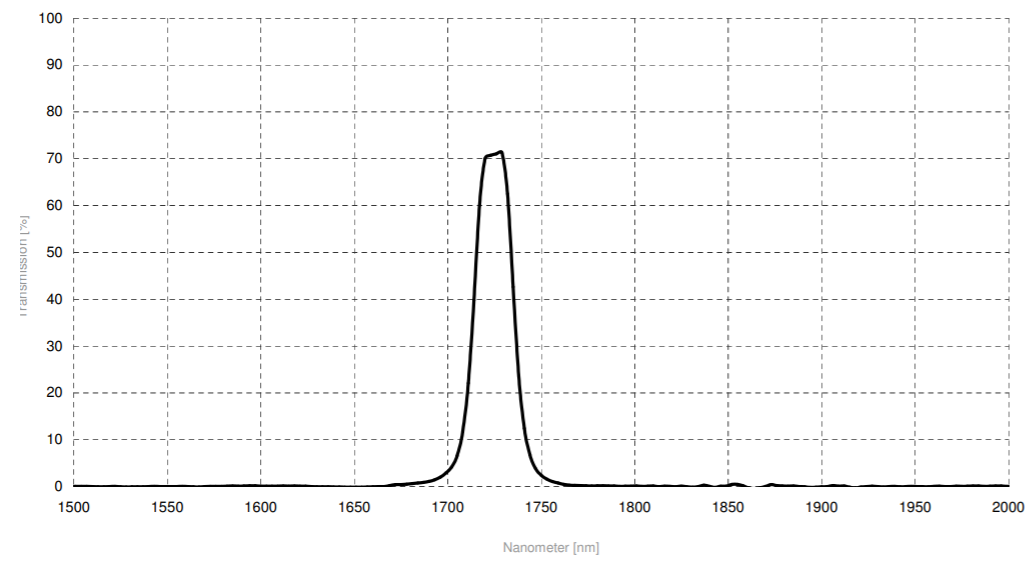

Diagram range: 1500 – 2000 nm
Actual values:
CWL = 1724,7 nm
HW = 22,8 nm
Cuton 5% = 1703 nm
Cutoff 5% = 1745,8 nm
HP1 = 1713,3 nm
HP2 = 1736,1 nm
Tpeak = 71,32 %
Tavg = 68,65 %
Slope 1 = 0,8 %
Slope 2 = 0,8 %
Specifications:
CWL: +10/-10 nm
HW: +5/-5 nm
Tmin: 70 %
Blocking: 3500 nm
Measurement conditions:
Temperature: 23 °C
AOI: 0 deg
