德国Sinterface公司成立于1998年,是一个专门设计和制造胶体与表面科学新技术新仪器的德国公司,Sinterface生产的仪器主要用于张力测量,2维流变学,接触角测量,乳化以及泡沫分析等,主要仪器有:界面分析张力仪,泡压张力计,泡沫分析仪,界面剪切流变仪,薄膜分析仪(该仪器为全球第一台准确测量液膜厚度的商业化仪器).
产品特点:

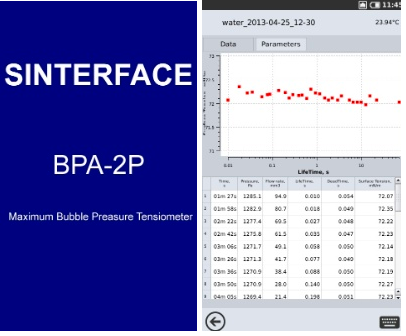

-全新的现代设计,精确的高分辨率彩色触摸显示
-时间的直接精确测量
–表面张力作为物理时间和寿命时间的函数
-可用时间间隔为3个数量级(0.010秒至10秒)
-可选择使用特殊毛细管延长时间间隔(0.06 – 30秒)
-精确测量正确的动态表面张力
-通过自动毛细管浸没直接测定静水压力
-修正测量液体的流体动力和粘度效应
-持续监测样品的温度
-用于将仪器集成到实验室测量系统的硬件外部总线
-支持通过以太网远程控制
-可作为内置电池的独立设备使用
-内置RTC(实时时钟)
-显示亮度控制
-仪器可直接接入本地网络环境,并可自动更新软件
仪器结构:
BPA-2P采用现代高质量的电子和机械元件。结果表明,该方法具有较好的测量精度和测量稳定性。用户界面提供触摸屏功能和可选的可能性,使用外部鼠标/键盘连接到仪器通过USB端口。有内置的RTC。 用于测量液体表面张力及密度估计.
技术参数:
Range of surface and interfacial tension | 10 to 100 mN/m |
Reproducibility of measured values | ± 0.1 mN/m |
Accuracy of surface tension measurement | 0.25 mN/m |
Dynamic time range: | Standard capillary 10 ms to 30 s |
Display | Graphic color TFT touch display 5’’ resolution 800 x 480 pixel |
Minimum volume test liquid | 1 ml |
Temperature operating range | 10 – 50°C |
Measurement temperature range | 0 – 100°C |
Experimental time: Standard mode (M1) / Fast Mode (M4) |
20-30 min / 4-6 min |
Firmware | free update over 1 year after purchase, update via Internet |
Number of measurement point in one measurement: All scan modes (M1, M3, M4 ) Constant mode (M2) |
up to 180 |
Operation mode | Stand-alone (touch display, mouse, keyboard) or remoute via client software |
Data storing: Memory on board USB memory stick |
1 GB + 128 MB up to max. 32 GB |
Connectivity | 100 Mbit Ethernet 2 x USB 2.0 WiFi (optional) |
Process control option | Custom |
Connection to PC | Software Ethernet, USB |
Dimensions Measurement unit | 205x75x110 |
Weight Measurement unit / Tripod | 2 kg |
Power requerment: | Measurement unit 12 VDC |
Power supply, external | 100 … 240 AC; to 12 VDC |
Max. power consumption | 10 W |
Extra accessories | capillaries of different diameters thermostatic jacket |
