圆拱折弯机 RBM 25 /RBM 32/RBM 38

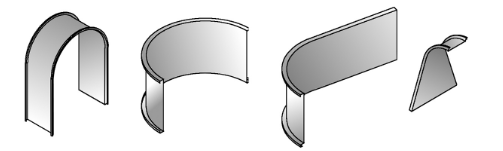

坚固的圆拱弯曲机,用于对预先型材化的面板进行凸面弯曲,用作屋顶窗、圆拱、圆顶或拱顶屋顶,高度可选 25、32 或 38 毫米,可选择带有或不带有夹片减压。
圆拱折弯机 RBM 25 /RBM 32/RBM 38操作视频
圆拱折弯机 RBM 25 /RBM 32/RBM 38技术资料
RBM 25 / RBM 32 | RBM 38 | |
Supply voltage | 230 V / 50 Hz / 1 Ph. | 230 V / 50 Hz / 1 Ph. |
Drive power | 1.1 kW | 1.1 kW |
Axial dimension | 300 – 810 mm | 300 – 810 mm |
Operating speed | max. 12 m/min, adjustable | max. 12 m/min, adjustable |
Smallest radii Non-ferrous metals Steel Stainless steel |
from radius 600 mm from radius 1,500 mm from radius 1,500 mm |
from radius 600 mm from radius 2,500 mm from radius 2,500 mm |
Processable materials Non-ferrous metals Steel Stainless steel |
max. 0.8 mm max. 0.7 mm max. 0.5 mm |
max. 0.8 mm max. 0.7 mm max. 0.5 mm |
Dimensions (L x W x H) | 1,000 mm x 1,000 mm x 1,700 mm | 1,000 mm x 1,000 mm x 1,700 mm |
Weight | 230 kg | 230 kg |
