加拿大Real Tech REAL MULTI-WAVE PROBE 多波长探头
Parameter(s): Customized to application – BOD, COD,TOC, DOC, UV254, UVT, TSS, colour, O3 and more 根据应用定制–BOD、COD、TOC、DOC、UV254、UVT、TSS、色度、O3等
多波长探头

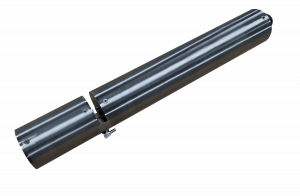

Real Tech强大的多波长潜水探测器可对水或废水中的有机物和其他化合物进行经济实惠的实时测量。多波长探头利用正在申请专利的技术，使用紫外线LED在多个波长的光上提供卓越的测量性能。探头坚固耐用的机身可承受恶劣的环境，可选择钛或不锈钢。SA系列旨在满足许多监测应用的需求，为所需的测量范围提供多种路径长度选择。
功能和优点
价格合理的实时水质监测
多波长传感器采用正在申请专利的技术，实现卓越的测量性能
坚固耐用的潜水探头，带钛或不锈钢外壳
操作人员友好，低维护紫外线LED设计
无试剂光学测量
安装和操作简单
多参数配置可用
| CHARACTERISTIC | TECHNICAL DATA |
| Path Length Options | 0.5, 1, 2, 4, 10 mm |
| Parameters | Customized to application. BOD, COD,TOC, DOC, UV254, UVT, TSS, colour, O3 |
| Range | Depends on model selected. Refer to range chart |
| Units | Parameter specific (mg/L, cm-1, % or PCU) |
| Sampling Time | 10 seconds |
| Calibration | Factory calibrated. Field adjustment of calibration is possible. |
| Cleaning | Automatic compressed air or pressurized water cleaning with optional Probe Clean System |
| Self-Diagnostic | Detection and diagnosis of internal system fault |
| Alarms | Continuous detection of leaks, lamp output, humidity, temperature and electrical fault |
| Humidity Control | Humidity sensor with Desiccant Pack |
| Wavelengths | Multiple UV and VIS wavelengths. Application-dependent |
| Light Source | UV LED |
| Electrical/Comm. | From controller |
| Pressure Rating | 15 PSI |
| Operating Temp. | 0 to 45°C (32 to 113°F) |
| Housing Material | Titanium (Grade 2) or, Stainless Steel (SS 316) |
| Wetted Materials | Titanium, Epoxy, Sapphire, SS 316, Viton (Titanium) or, Epoxy, Sapphire, SS 316, Viton (Stainless Steel) |
| Weight | 1.5kg (3.31lb)** (Titanium) or, 2.5kg (5.25lb)** (Stainless Steel) |
| Ingress Protection Type | IPX8 |
| Dimensions | 15″ H x 2.0″ Diameter |
