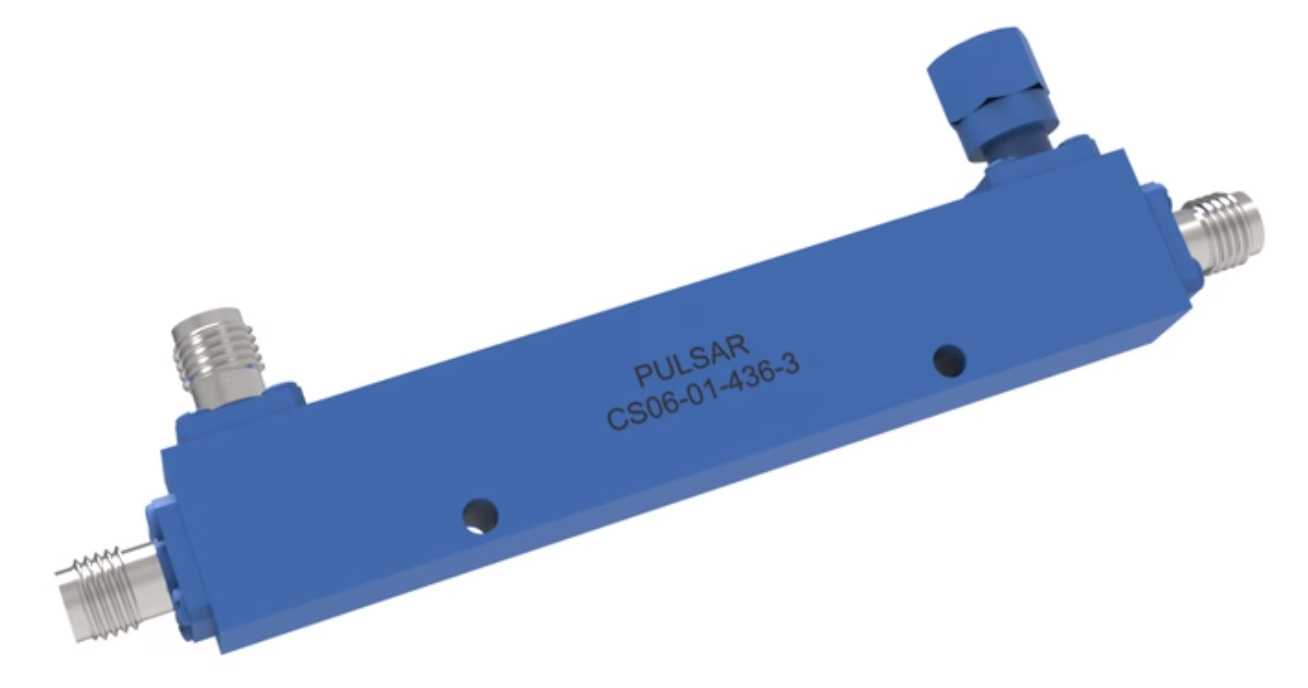

6 dB Directional Couplers from 0.5 to 40 GHz
Pulsar Microwave 6 dB 定向耦合器，频率范围2 至18 GHz货号及参数
| 频率范围 (GHz) | 耦合度 (dB) | 耦合平坦度 (dB) max. | 插入损耗 (dB) max. | 最小方向性 (dB) | 最大驻波比 | 连接器类型 | 型号 |
|---|---|---|---|---|---|---|---|
| 0.5 – 1.0 | 6.0 ± 1.00 | ±0.60 | 0.20 | 25 | 1.15:1 | SMA | CS06-01-436/3 |
| 0.5 – 1.0 | 6.0 ± 1.00 | ±0.60 | 0.20 | 22 | 1.15:1 | N | CS06-01-436/3N |
| 0.5 – 2.0 | 6.0 ± 1.00 | ±0.75 | 0.35 | 23 | 1.20:1 | SMA | CS06-02-436/1 |
| 0.5 – 2.0 | 6.0 ± 1.00 | ±0.75 | 0.35 | 20 | 1.20:1 | N | CS06-02-436/1N |
| 1.0 – 2.0 | 6.0 ± 1.00 | ±0.60 | 0.20 | 25 | 1.15:1 | SMA | CS06-03-436/7 |
| 1.0 – 2.0 | 6.0 ± 1.00 | ±0.60 | 0.20 | 20 | 1.15:1 | N | CS06-03-436/7N |
| 0.8 – 2.2 | 6.0 ± 1.00 | ±0.75 | 0.35 | 23 | 1.20:1 | SMA | CS06-02A-436/3 |
| 0.8 – 2.2 | 6.0 ± 1.00 | ±0.75 | 0.35 | 20 | 1.20:1 | N | CS06-02A-436/3N |
| 0.8 – 2.5 | 6.0 ± 1.00 | ±0.70 | 0.40 | 20 | 1.20:1 | SMA | CS06-22-436/3 |
| 1.0 – 4.0 | 6.0 ± 1.00 | ±0.75 | 0.35 | 23 | 1.20:1 | SMA | CS06-04-436/13 |
| 1.0 – 4.0 | 6.0 ± 1.00 | ±0.75 | 0.35 | 18 | 1.20:1 | N | CS06-04-436/13N |
| 2.0 – 4.0 | 6.0 ± 1.00 | ±0.60 | 0.20 | 22 | 1.15:1 | SMA | CS06-05-436/10 |
| 2.0 – 4.0 | 6.0 ± 1.00 | ±0.60 | 0.20 | 18 | 1.15:1 | N | CS06-05-436/11N |
| 3.6 – 4.2 | 6.0 ± 1.00 | ±0.30 | 0.55 | 15 | 1.45:1 | SMA | CS06-06-435/1 |
| 3.6 – 4.2 | 6.0 ± 1.00 | ±0.30 | 0.55 | 18 | 1.45:1 | N | CS06-06-436/11N |
| 2.6 – 5.2 | 6.0 ± 1.00 | ±0.60 | 0.20 | 18 | 1.25:1 | SMA | CS06-07-435/1 |
| 2.6 – 5.2 | 6.0 ± 1.00 | ±0.60 | 0.20 | 18 | 1.25:1 | N | CS06-07-436/11N |
| 5.8 – 6.4 | 6.0 ± 1.00 | ±0.30 | 0.55 | 15 | 1.45:1 | SMA | CS06-08-435/1 |
| 5.8 – 6.4 | 6.0 ± 1.00 | ±0.30 | 0.55 | 18 | 1.45:1 | N | CS06-08-436/11N |
| 2.0 – 8.0 | 6.0 ± 1.00 | ±0.75 | 0.50 | 15 | 1.25:1 | N | CS06-09-436/7N |
| 2.0 – 8.0 | 6.0 ± 1.00 | ±0.75 | 0.50 | 20 | 1.25:1 | SMA | CS06-09-436/9 |
| 4.0 – 8.0 | 6.0 ± 1.00 | ±0.60 | 0.25 | 18 | 1.30:1 | SMA | CS06-10-435/1 |
| 4.0 – 8.0 | 6.0 ± 1.00 | ±0.60 | 0.25 | 17 | 1.30:1 | N | CS06-10-436/11N |
| 7.2 – 8.5 | 6.0 ± 1.00 | ±0.30 | 0.55 | 15 | 1.45:1 | SMA | CS06-11-435/1 |
| 7.2 – 8.5 | 6.0 ± 1.00 | ±0.30 | 0.55 | 15 | 1.45:1 | N | CS06-11-436/11N |
| 4.0 – 12.4 | 6.0 ± 1.00 | ±0.30 | 0.50 | 17 | 1.30:1 | SMA | CS06-14-436/15 |
| 4.0 – 12.4 | 6.0 ± 1.00 | ±0.30 | 0.50 | 15 | 1.30:1 | N | CS06-14-436/15N |
| 7.0 – 12.4 | 6.0 ± 1.00 | ±0.50 | 0.30 | 17 | 1.30:1 | SMA | CS06-12-435/1 |
| 7.0 – 12.4 | 6.0 ± 1.00 | ±0.50 | 0.50 | 15 | 1.30:1 | N | CS06-12-436/11N |
| 7.5 – 16.0 | 6.0 ± 1.00 | ±0.60 | 0.60 | 12 | 1.40:1 | SMA | CS06-13-435/1 |
| 7.5 – 16.0 | 6.0 ± 1.00 | ±0.60 | 0.60 | 13 | 1.40:1 | N | CS06-13-436/11N |
| 0.5 – 18.0 | 6.0 ± 1.00 | ±1.00 | 1.80 | 15 | 1.50:1 | SMA | CS06-23-436/20 |
| 2.0 – 18.0 | 6.0 ± 1.00 | ±0.50 | 1.00 | 2.0-12 GHz: 15 12-18 GHz: 12 | 1.50:1 | SMA | CS06-15-436/13 |
| 2.0 – 18.0 | 6.0 ± 1.00 | ±0.50 | 1.00 | 2.0-12 GHz: 15 12-18 GHz: 12 | 1.50:1 | N | CS06-15-436/13N |
| 4.0 – 18.0 | 6.0 ± 1.00 | ±0.50 | 0.90 | 4.0-12 GHz: 15 12-18 GHz: 12 | 1.40:1 | N | CS06-16-436/13N |
| 4.0 – 18.0 | 6.0 ± 1.00 | ±0.50 | 0.90 | 4.0-12 GHz: 15 12-18 GHz: 12 | 1.40:1 | SMA | CS06-16-436/14 |
| 12.4 – 18.0 | 6.0 ± 1.00 | ±0.50 | 0.60 | 15 | 1.40:1 | SMA | CS06-17-435/1 |
| 12.4 – 18.0 | 6.0 ± 1.00 | ±0.50 | 0.60 | 12 | 1.40:1 | N | CS06-17-436/11N |
| 0.5 – 20.0 | 6.0 ± 1.00 | ±1.00 | 1.80 | 15 | 1.50:1 | SMA | CS06-25-436/20 |
| 6.0 – 26.5 | 6.0 ± 1.00 | ±0.70 | 1.00 | 13 | 1.60:1 | 2.92 | CS06-50-435/4 |
| 6.0 – 40.0 | 6.0 ± 1.00 | ±1.00 | 1.20 | 10 | 1.70:1 | 2.92 | CS06-51-435/4 |
