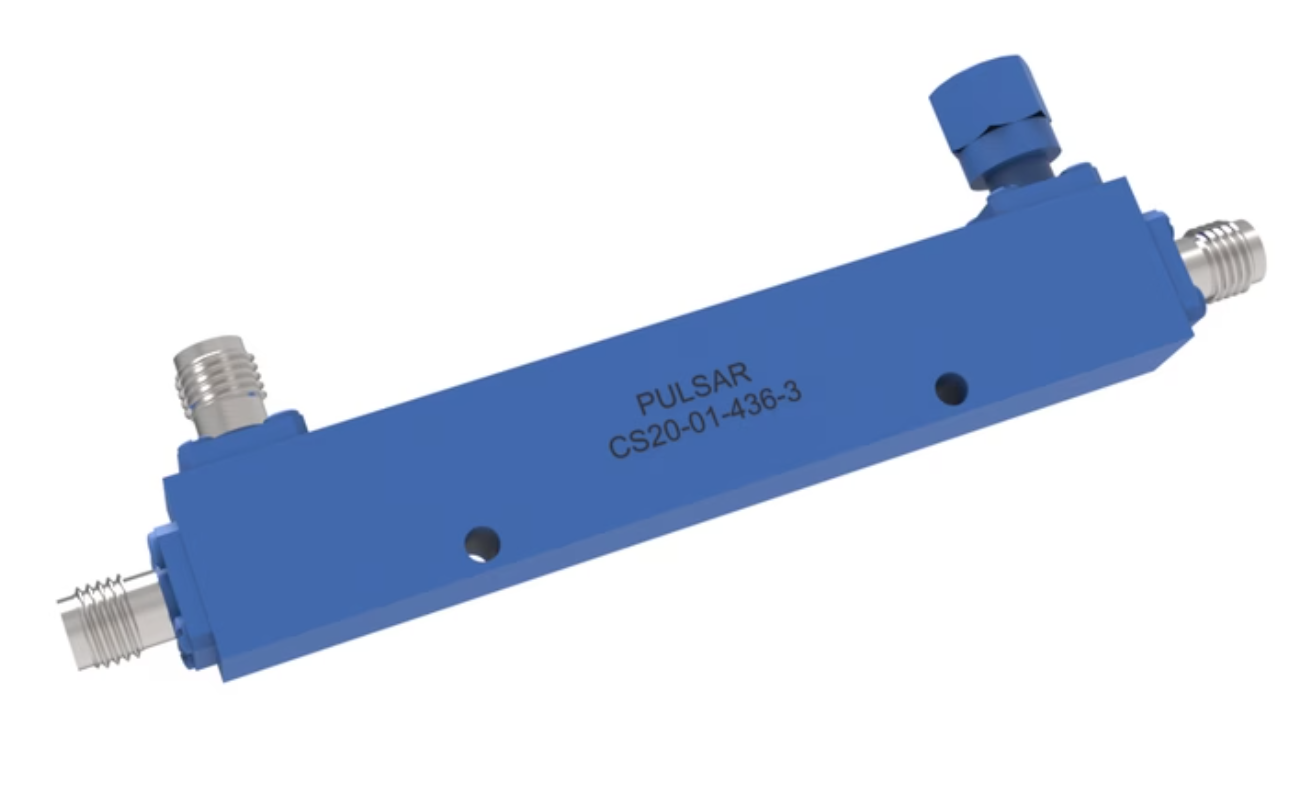

Pulsar Microwave 20 dB 定向耦合器，频率范围0.5 至 60 GHz，CS20-01-436/3
20 dB Directional Couplers from 0.5 to 60 GHz
Pulsar Microwave 的 20 dB 高频单向定向耦合器构成了 CS20 系列。该系列产品提供窄带或宽带设计，频率范围从 500 MHz 到 60 GHz。典型的耦合容差为 ±1 或 ±1.25 dB，大多数型号可处理 50 瓦的输入功率。这些定向耦合器设计用于 50 欧姆系统中，并针对最佳匹配、高方向性以及平坦的耦合响应进行了优化。标准封装为 SMA 或 N 型阴螺纹连接器，可选择全为同一类型，或主线为 N 型、耦合端口为 SMA 型的组合配置
Pulsar Microwave 20 dB 定向耦合器，频率范围0.5 至 60 GHz货号及规格
| 频率范围 (GHz) | 耦合度 (dB) | 耦合平坦度 (dB) max. | 插入损耗 (dB) max. | 最小方向性 (dB) | 最大驻波比 | 连接器类型 | 型号 |
|---|---|---|---|---|---|---|---|
| 0.5 – 1.0 | 20.0 ± 1.25 | ±0.75 | 0.20 | 25 | 1.15:1 | SMA | CS20-01-436/3 |
| 0.5 – 1.0 | 20.0 ± 1.25 | ±0.75 | 0.20 | 22 | 1.15:1 | N | CS20-01-436/3N |
| 0.5 – 2.0 | 20.0 ± 1.00 | ±0.75 | 0.35 | 20 | 1.20:1 | N | CS20-02-436/1N |
| 0.5 – 2.0 | 20.0 ± 1.00 | ±1.00 | 0.35 | 23 | 1.20:1 | SMA | CS20-02-436/2 |
| 1.0 – 2.0 | 20.0 ± 1.25 | ±0.75 | 0.20 | 25 | 1.10:1 | SMA | CS20-03-436/7 |
| 1.0 – 2.0 | 20.0 ± 1.25 | ±0.75 | 0.20 | 20 | 1.10:1 | N | CS20-03-436/7N |
| 0.8 – 2.2 | 20.0 ± 1.25 | ±0.75 | 0.35 | 23 | 1.20:1 | SMA | CS20-02A-436/3 |
| 0.8 – 2.2 | 20.0 ± 1.00 | ±0.75 | 0.35 | 20 | 1.20:1 | N | CS20-02A-436/3N |
| 0.8 – 2.5 | 20.0 ± 1.25 | ±0.70 | 0.40 | 20 | 1.20:1 | SMA | CS20-22-436/3 |
| 1.0 – 4.0 | 20.0 ± 1.00 | ±0.75 | 0.40 | 23 | 1.20:1 | SMA | CS20-04-436/13 |
| 1.0 – 4.0 | 20.0 ± 1.00 | ±0.75 | 0.40 | 18 | 1.20:1 | N | CS20-04-436/13N |
| 2.0 – 4.0 | 20.0 ± 1.25 | ±0.75 | 0.20 | 22 | 1.15:1 | SMA | CS20-05-436/10 |
| 2.0 – 4.0 | 20.0 ± 1.25 | ±0.75 | 0.20 | 18 | 1.15:1 | N | CS20-05-436/11N |
| 3.6 – 4.2 | 20.0 ± 1.00 | ±0.30 | 0.50 | 15 | 1.40:1 | SMA | CS20-06-435/1 |
| 3.6 – 4.2 | 20.0 ± 1.00 | ±0.30 | 0.50 | 18 | 1.40:1 | N | CS20-06-436/11N |
| 2.6 – 5.2 | 20.0 ± 1.25 | ±0.75 | 0.20 | 20 | 1.25:1 | SMA | CS20-07-435/1 |
| 2.6 – 5.2 | 20.0 ± 1.25 | ±0.75 | 0.20 | 18 | 1.25:1 | N | CS20-07-436/11N |
| 5.8 – 6.4 | 20.0 ± 1.00 | ±0.30 | 0.50 | 15 | 1.40:1 | SMA | CS20-08-435/1 |
| 5.8 – 6.4 | 20.0 ± 1.00 | ±0.30 | 0.50 | 18 | 1.40:1 | N | CS20-08-436/11N |
| 2.0 – 8.0 | 20.0 ± 1.00 | ±0.75 | 0.40 | 15 | 1.25:1 | N | CS20-09-436/7N |
| 2.0 – 8.0 | 20.0 ± 1.00 | ±0.75 | 0.40 | 20 | 1.25:1 | SMA | CS20-09-436/9 |
| 4.0 – 8.0 | 20.0 ± 1.25 | ±0.75 | 0.25 | 20 | 1.30:1 | SMA | CS20-10-435/1 |
| 4.0 – 8.0 | 20.0 ± 1.25 | ±0.75 | 0.25 | 17 | 1.30:1 | N | CS20-10-436/11N |
| 7.2 – 8.5 | 20.0 ± 1.00 | ±0.30 | 0.50 | 15 | 1.40:1 | SMA | CS20-11-435/1 |
| 7.2 – 8.5 | 20.0 ± 1.00 | ±0.30 | 0.50 | 15 | 1.40:1 | N | CS20-11-436/11N |
| 0.5 – 12.0 | 20.0 ± 1.00 | ±0.80 | 1.00 | 15 | 1.50:1 | SMA | CS20-19-436/19 |
| 4.0 – 12.4 | 20.0 ± 1.00 | ±0.40 | 0.50 | 17 | 1.30:1 | SMA | CS20-14-436/15 |
| 7.0 – 12.4 | 20.0 ± 1.00 | ±0.50 | 0.30 | 17 | 1.30:1 | SMA | CS20-12-435/1 |
| 7.0 – 12.4 | 20.0 ± 1.00 | ±0.50 | 0.50 | 15 | 1.30:1 | N | CS20-12-436/11N |
| 7.5 – 16.0 | 20.0 ± 1.25 | ±0.75 | 0.50 | 15 | 1.40:1 | SMA | CS20-13-435/3 |
| 7.5 – 16.0 | 20.0 ± 1.25 | ±0.75 | 0.50 | 13 | 1.40:1 | N | CS20-13-436/11N |
| 0.5 – 18.0 | 20.0 ± 1.00 | ±1.00 | 0.90 | 0.5-12 GHz: 15 12-18 GHz: 12 | 1.50:1 | SMA | CS20-23-436/20 |
| 1.0 – 18.0 | 20.0 ± 1.00 | ±0.50 | 0.80 | 1.0-12 GHz: 15 12-18 GHz: 12 | 1.50:1 | SMA | CS20-18-436/16 |
| 1.0 – 18.0 | 20.0 ± 1.00 | ±0.50 | 0.80 | 1.0-12 GHz: 15 12-18 GHz: 12 | 1.50:1 | N | CS20-18-436/16N |
| 2.0 – 18.0 | 20.0 ± 1.00 | ±0.50 | 0.60 | 2.0-12 GHz: 15 12-18 GHz: 12 | 1.40:1 | SMA | CS20-15-436/13 |
| 4.0 – 18.0 | 20.0 ± 1.00 | ±0.50 | 0.60 | 4.0-12 GHz: 15 12-18 GHz: 12 | 1.40:1 | SMA | CS20-16-436/14 |
| 12.4 – 18.0 | 20.0 ± 1.00 | ±0.50 | 0.50 | 15 | 1.40:1 | SMA | CS20-17-435/3 |
| 12.4 – 18.0 | 20.0 ± 1.00 | ±0.50 | 0.50 | 12 | 1.40:1 | N | CS20-17-436/11N |
| 0.5 – 20.0 | 20.0 ± 1.00 | ±1.00 | 0.90 | 15 | 1.50:1 | SMA | CS20-25-436/20 |
| 8.0 – 20.0 | 20.0 ± 1.00 | ±0.80 | 1.00 | 12 | 1.50:1 | SMA | CS20-21-435/3 |
| 6.0 – 26.5 | 20.0 ± 1.00 | ±0.80 | 0.70 | 13 | 1.55:1 | 2.92 | CS20-50-435/4 |
| 0.5 – 27.0 | 20.0 ± 1.00 | ±1.20 | 1.80 | 14 | 1.50:1 | 2.92 | CS20-56-436/20 |
| 0.5 – 40.0 | 20.0 ± 1.50 | ±1.50 | 2.20 | 12 | 1.60:1 | 2.92 | CS20-57-436/20 |
| 1.0 – 40.0 | 20.0 ± 1.00 | ±1.50 | 1.60 | 10 | 1.80:1 | 2.92 | CS20-53-436/13 |
| 2.0 – 40.0 | 20.0 ± 1.00 | ±1.00 | 1.60 | 10 | 1.80:1 | 2.92 | CS20-52-436/9 |
| 6.0 – 40.0 | 20.0 ± 1.00 | ±1.00 | 1.20 | 10 | 1.70:1 | 2.92 | CS20-51-435/4 |
| 6.0 – 50.0 | 20.0 ± 1.00 | ±1.00 | 1.60 | 10 | 2.00:1 | 2.40 | CS20-54-435/4 |
| 6.0 – 60.0 | 20.0 ± 1.00 | ±2.00 | 1.80 | 7 | 2.50:1 | 1.85 | CS20-55-435/4 |
