RPV-2 Polymer Viscometer PSL-Rheotek
-
Inherent Viscosity 固有粘度,比浓对数黏度，特性粘度
-
Relative Viscosity
PSL Rheotek RPV-1纸浆和纤维素粘度计系统适用于测量各种纸浆和纤维素产品，包括漂白木材(纸浆)、漂白化学纸浆、蒸煮样品、棉絮、再生纤维素、老化的电子纸和制药膨胀材料。RPV-1浆&纤维素粘度计系统配置了独特的氮气吹扫系统，以确保样品在制备和粘度测试过程中不受氧化。RPV-1浆粘度计设计与iSP-2浆纤维素制样系统相结合。其他选择包括纸浆搅拌块和RSS Rheotek智能采样器。
PSL Rheotek RPV-1纸浆和纤维素粘度计系统自动测量纸浆、纸张或纤维素溶解在铜乙二胺(也称为塞-塞或Cuene)溶液的粘度。将RPV-1纸浆和纤维素粘度计自动实现标准方法中设定的手动步骤，最小化结果的可变性。系统可以配置1到4个测量位置。其他选择包括样品制备、样品搅拌和自动采样器。流动时间是用ISO 17025校准证书自动测量的。清洗是用溶剂和安全的真空系统进行的。综合RPV-1软件程序记录所有测量数据，并计算了广泛的结果，包括相对粘度、固有粘度(限制粘度值)、聚合度(DP)、K值、运动粘度(mm²/ s)和动态粘度(mPa.s)。
纸浆和纤维素的测试方法:
SCAN-CM 15:99铜乙二胺溶液粘度
ISO 5351测定铜乙二胺(CED)溶液中极限粘度数
纤维素固有粘度的标准试验方法
TAPPI t230浆粘度(毛细管粘度计法)
PACTAC . 24p纸浆铜乙二胺粘度
RPV-1(2)纸浆

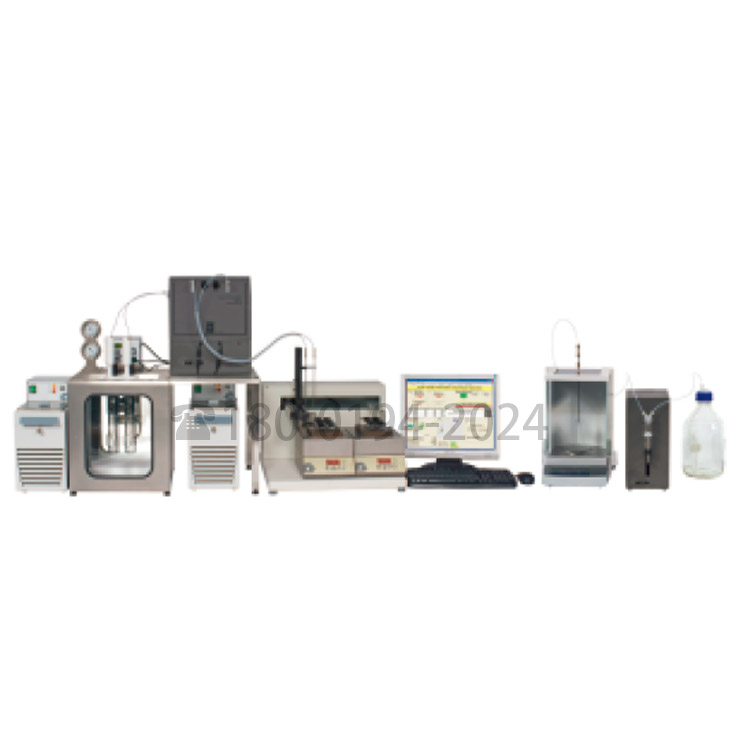

PSL Rheotek聚合物粘度计-两个位置完整的粘度计浴，冷水机，控制模块，氮气吹洗系统，两个测量头，两个加油站，PC控制系统和PIAB真空系统。

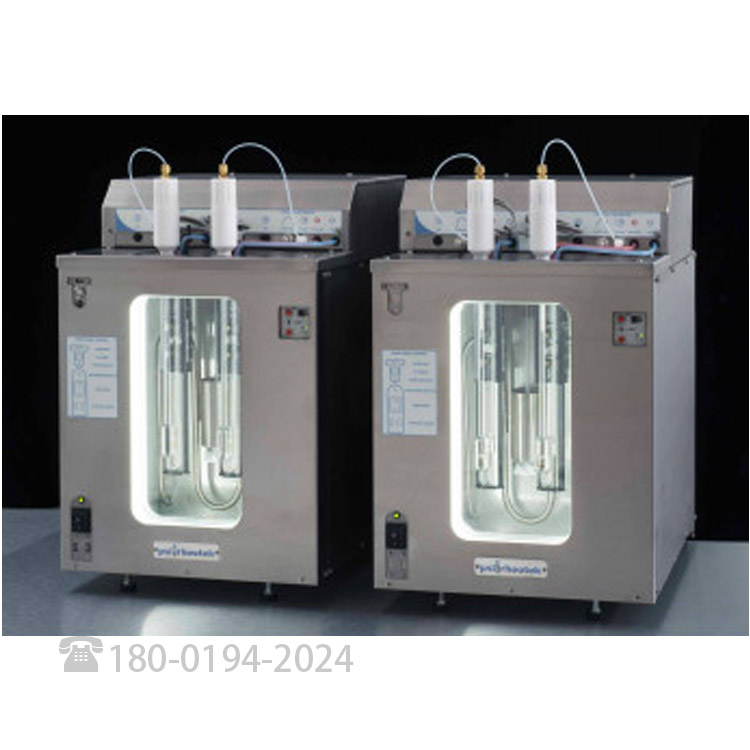

The PSL-Rheotek RPV-2 Polymer Viscometer is suitable for measuring the dilute solution viscosity of a wide range of polymers. Applications include PA, PET, PVC, PLA, PBT, PC, PE, PP, Cellulose Acetate, Inks, Biopolymers, Pulp and cellulose.
RPV-2 is designed for full integration with sample preparation and sample dissolution modules from PSL-Rheotek. Using these integrated options ensures full integrity of data from end to end in the measurement process.
Polymer Viscosity
The PSL Rheotek RPV-2 polymer viscometer offers an all-inclusive package of technology for solution viscosity test work. Accurate control of the very low concentations employed in iv test work ensure high quality of test results. Automating the viscosity measurement work provides timely information for product specification and process control. K-value, viscosity number, relative viscosity results also available as per relevant test method.
With automation of flow time determination, results calculation, sample removal, sample path cleaning and sample path drying, the RPV-2 will save a lot of time in the polymer plant laboratory.
Full Method Compliance
Software configurations for all the most common test methods of solution viscosity are availabe as shelf products. So far, the following methods are covered: ASTM D4603, ISO 1628, part 1-5, ASTM D2857, ASTM D789, ISO 307. New methods are added on a continuous basis. An RPV-2 coded with correct method parameters and equations for calculations of results is a guarantee of full method compliance in the day to day testing work. The capillary tubes installed in teh unit are standard ASTM Ubbelohde.
Automated functions include:
-
Sample push up
-
Flow time determination
-
Results calcuation
-
Self-check of results quality
-
Sample removal
-
Sample path cleaning
-
Sample path drying
