BL1-D1312-100-G2

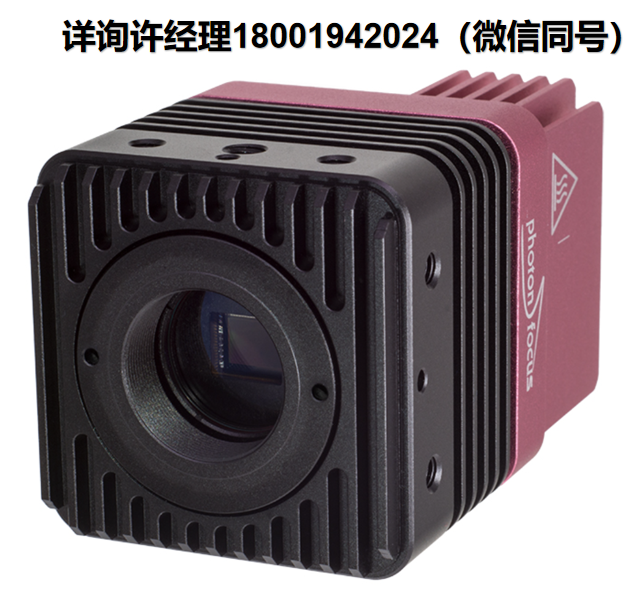

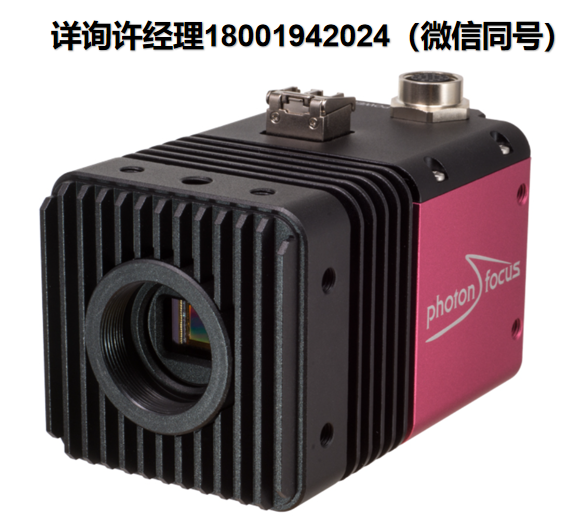

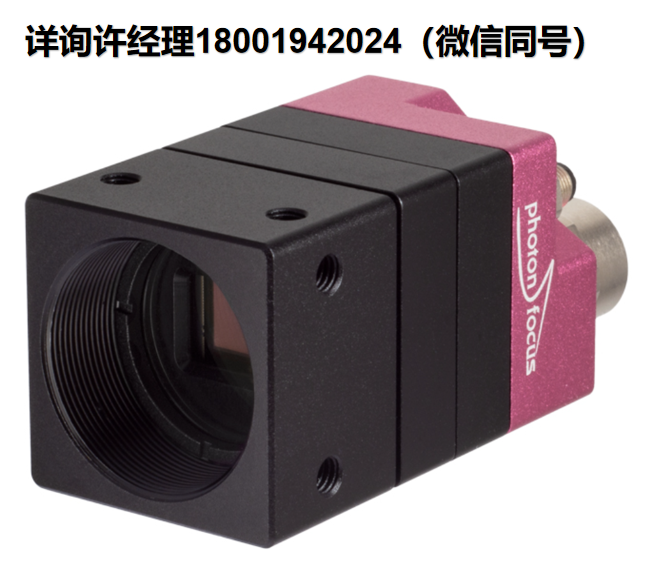

Photonfocus, A1312, 1″, 1312 x 1082, 67fps, GigE
| PART NAME | DESCRIPTION | |
|---|---|---|
| BL1-D1312-100-G2-12 | BW model | |
| BL1-D1312IE-100-G2-12 | NIR-Enhanced model |
参数：
| Sensor: | Photonfocus, A1312 |
| Frame rate: | 67fps |
| Optical format: | 1″ |
| Lens mount: | C-Mount (CS-Mount optional) |
| Sensor Resolution: | 1312 x 1082 |
| Pixel size: | 8μm x 8μm |
| I/O Input: | 2x Opto-isolated 2x RS-422 Opto-isolated |
| I/O Output: | 2x Opto-isolated |
| Dimensions: | 53 x 46 x 51mm³ |
特征：
Configurable region of interest (ROI)
Up to 512 regions of interest (MROI)
Decimation in y-direction
Image correction
2 look-up tables (12-to-8Bit) on user-defined image region (Region-LUT)
Constant frame rate independent of exposure time
Crosshairs overlay on the image
3×3 convolver for image preprocessing
Temperature monitoring of sensor and camera
Camera informations readable over SDK
Ultra low trigger delay and low trigger jitter
Extended trigger input and strobe output functionality
Status line in picture
