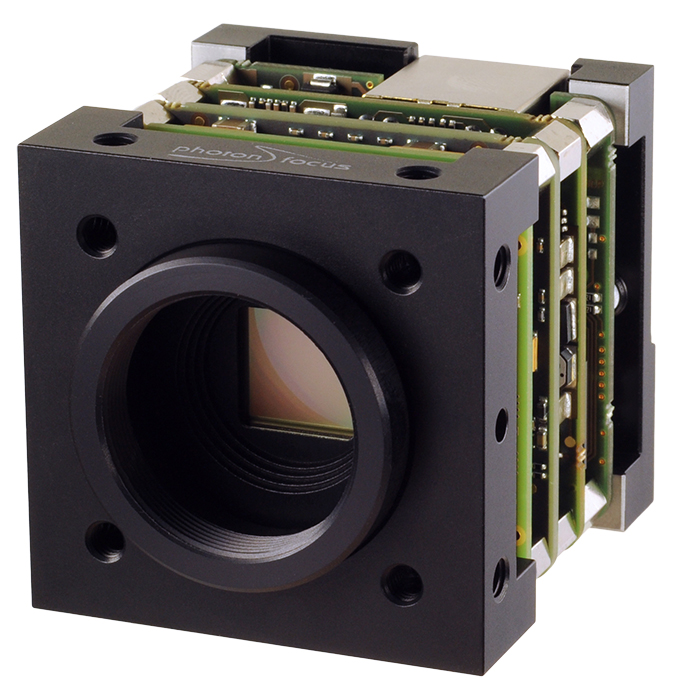

BL1-D1024E-80-G2
Photonfocus, A1024, 1″, 1024 x 1024, 75fps, GigE
| PART NAME | DESCRIPTION | |
|---|---|---|
| BL1-D1024E-80-G2-12 | BW model |
参数：
| Sensor: | Photonfocus, A1024 |
| Frame rate: | 75fps |
| Optical format: | 1″ |
| Lens mount: | C-Mount (CS-Mount optional) |
| Sensor Resolution: | 1024 x 1024 |
| Pixel size: | 10.6μm x 10.6μm |
| I/O Input: | 2x Opto-isolated 2x RS-422 Opto-isolated |
| I/O Output: | 2x Opto-isolated |
| Dimensions: | 46 x 46 x 49mm³ |
特征：
- Configurable region of interest (ROI)
- Up to 512 regions of interest (MROI)
- Decimation in y-direction
- Image correction
- 2 look-up tables (12-to-8Bit) on user-defined image region (Region-LUT)
- Constant frame rate independent of exposure time
- Crosshairs overlay on the image
- Temperature monitoring of camera
- Camera informations readable over SDK
- Ultra low trigger delay and low trigger jitter
- Extended trigger input and strobe output functionality
- Status line in picture
