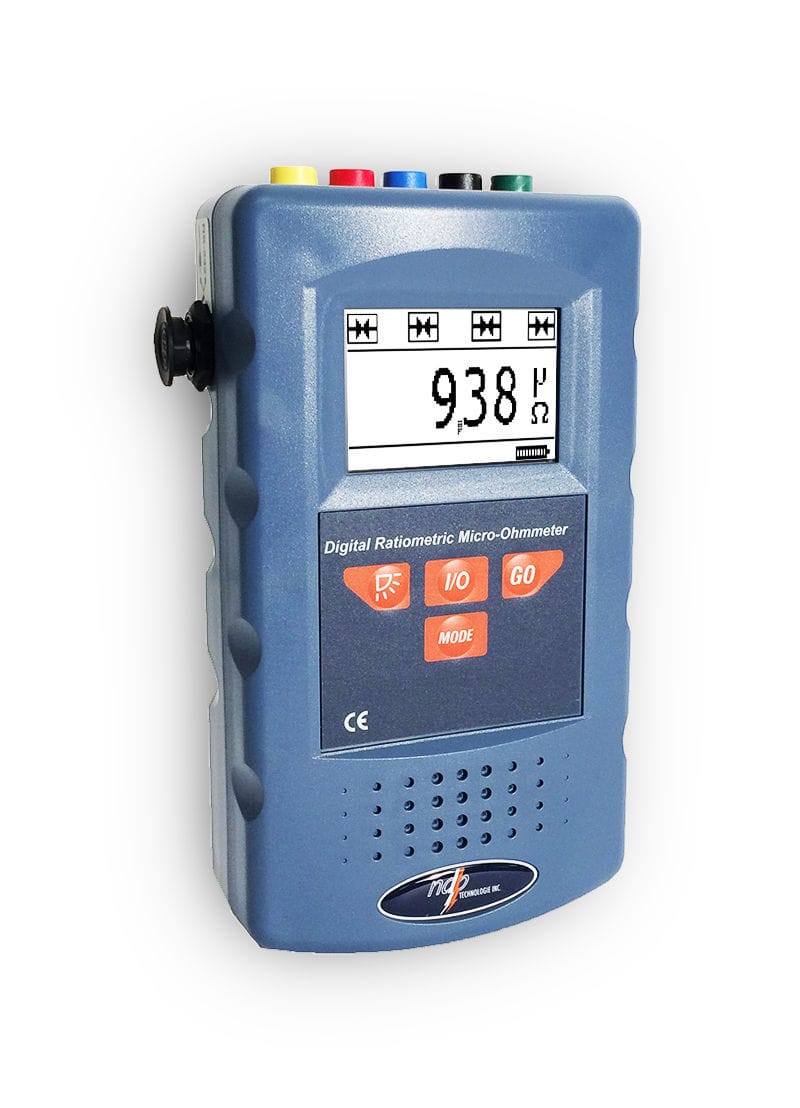

Microhmmeter / digital / portable / low-resistance LRM-10 微欧计/数字/移动/低阻lrm-10
Characteristics
特点
Type:
类型：
microhmmeter
微欧计
Display:
显示：
digital
数字
Portability:
可移植性：
portable
便携式
Other characteristics:
其他特点：
low-resistance
低电阻
Resistance range:
电阻范围：
Min.: 0 Ohm
0欧姆
Max.: 200 Ohm
最大：200欧姆
Description
描述
Low Resistance Meter, uses this 10 Amp for electrical interconnections integrity testing. It can verify the quality contact interfaces, thanks to its extremely low resistances measurements ranging from 0.01 µΩ to 200Ω om. Certain factors like residual contact force, vibrations and corrosion affect electrical interconnections like sockets, circuit breaker connections, switches, cable joints, battery intercell connections and other types of connection devices. These factors are responsible for downgrading the quality of the contact surfaces, leading to wear and tear and finally total failure of these electrical components. Longevity of these connections depends on the amount of damage it is taking each day. When there is considerable increase in contact resistance in electrical interfaces, understand that the components are dying out. LRM-10 prevents this from happening because it checks for the voltage drop with its four-cable measurement method, the current injection channels ( l, -l) and a Voltage sensing channel ( V, -V).
低电阻表，使用这10安培的电气互连完整性测试。它可以验证质量的接触界面，由于其极低的电阻，测量范围从0.01到200ΩOMµΩ。某些因素如残余接触压力、振动和腐蚀影响的电气互连像插座、断路器连接，开关、电缆接头、电池间的连接和其他类型的连接装置。这些因素是负责降低接触表面的质量，导致磨损和撕裂，最后彻底失败的这些电气元件。这些连接的寿命取决于它每天服用的损伤量。当有相当大的增加，在接触电阻的电气接口，了解组件正在消亡。lrm-10防止这种情况的发生，因为它检查其四线法测量电压降、电流注入通道（L，L）和电压传感通道（V，V）。
