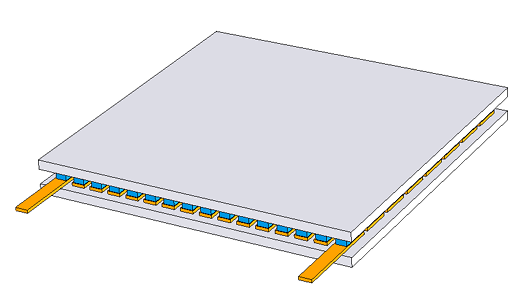

低温发电模块（最高200°C）
使用“Ecogen Technology”公司制造的温差为100°C的热电发电模块（TGM），可以在单个模块内产生高达10 W的直流至6 V电压的电力。
TGM应用的主要领域包括：
•运输设施（汽车、船舶）废热的利用；
•自动向锅炉和处理厂的电子块供应能源；
•石油和天然气管道的阴极保护；
•将自然热资源——地热水等转化为电能；
•低功率电气设备的自主电源。
注意

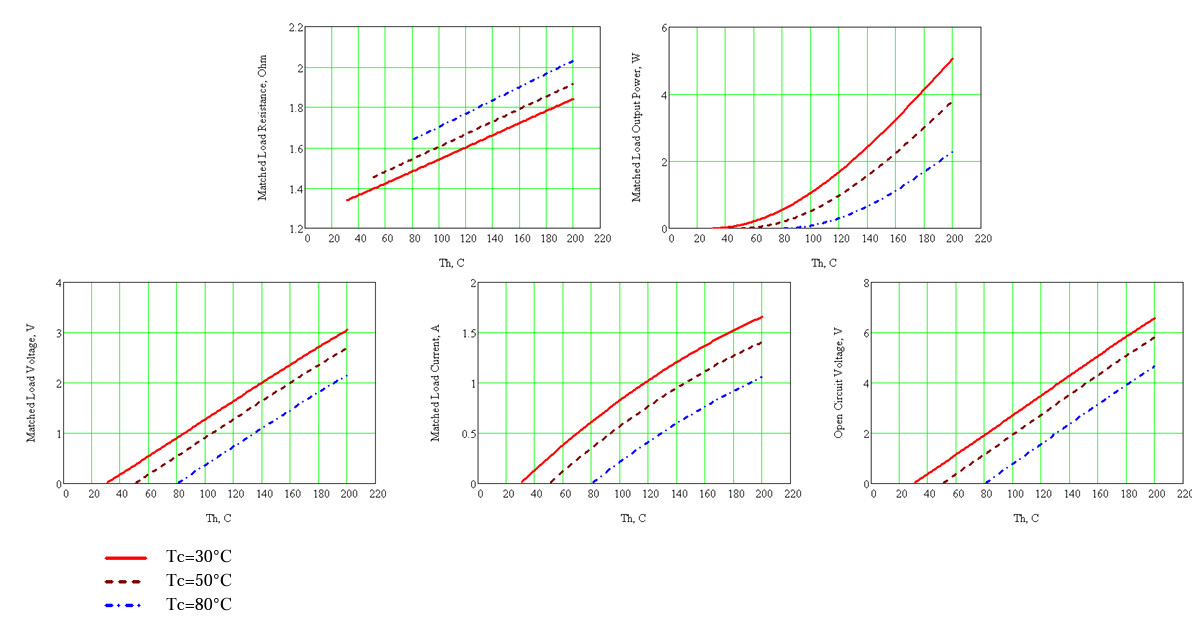

所有参数在Т冷侧=30°С时给出；Т热侧=200°С（最高工作温度）。
|
Type |
IL (A) |
UL (V) |
P (W) |
Rac (Ohm) |
Rас22°С (Ohm) |
Rt (К/W) |
η (%) |
А (mm) |
B (mm) |
H (mm) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

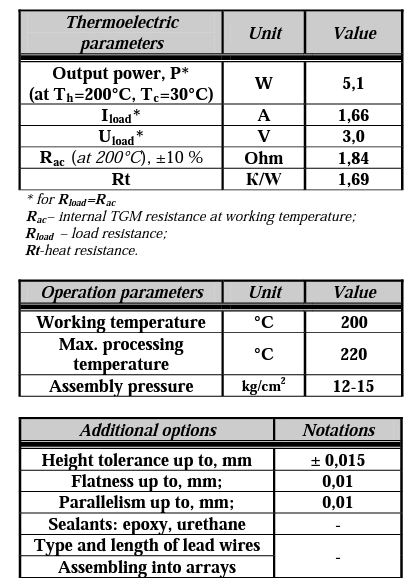

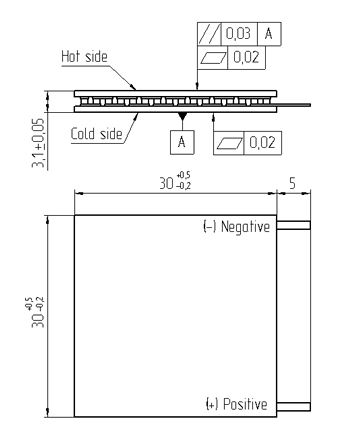

| TGM-127-1,0-0,8 | 1.7 | 3.0 | 5.0 | 1.8 | 1.3 | 1.7 | 4.7 | 30.0 | 30.0 | 3.1 | ||
| TGM-127-1,0-1,3 | 1.1 | 3.4 | 4.0 | 3.0 | 2.1 | 2.7 | 5.1 | 30.0 | 30.0 | 3.6 | ||
| TGM-127-1,0-2,5 | 0.6 | 3.7 | 2.0 | 5.8 | 4.0 | 5.0 | 5.4 | 30.0 | 30.0 | 4.8 | ||
| TGM-127-1,4-0,8 | 3.1 | 3.0 | 9.0 | 1.0 | 0.7 | 0.9 | 4.6 | 40.0 | 40.0 | 3.1 | ||
| TGM-127-1,4-1,2 | 2.3 | 3.3 | 8.0 | 1.4 | 1.0 | 1.3 | 4.9 | 40.0 | 40.0 | 3.5 | ||
| TGM-127-1,4-1,5 | 1.8 | 3.4 | 6.0 | 1.9 | 1.3 | 1.7 | 5.1 | 40.0 | 40.0 | 3.9 | ||
| TGM-127-1,4-2,0 | 1.5 | 3.5 | 5.0 | 2.4 | 1.6 | 2.1 | 5.3 | 40.0 | 40.0 | 4.3 | ||
| TGM-127-1,4-2,5 | 1.2 | 3.6 | 5.0 | 3.0 | 2.0 | 2.6 | 5.4 | 40.0 | 40.0 | 4.8 | ||
| TGM-127-2,0-1,3 | 4.1 | 3.1 | 13.0 | 0.8 | 0.5 | 0.7 | 4.7 | 48.0 | 48.0 | 3.6 | ||
| TGM-199-1,4-0,8 | 2.8 | 4.1 | 11.0 | 1.5 | 1.0 | 0.6 | 4.1 | 40.0 | 40.0 | 3.2 | ||
| TGM-199-1,4-1,15 | 2.2 | 4.6 | 10.0 | 2.1 | 1.5 | 0.8 | 4.6 | 40.0 | 40.0 | 3.6 | ||
| TGM-199-1,4-1,2 | 2.1 | 4.6 | 10.0 | 2.2 | 1.5 | 0.8 | 4.6 | 40.0 | 40.0 | 3.7 | ||
| TGM-199-1,4-1,5 | 1.7 | 5.0 | 8.0 | 2.9 | 2.0 | 1.1 | 4.9 | 40.0 | 40.0 | 4.1 | ||
| TGM-199-1,4-2,0 | 1.4 | 5.2 | 7.0 | 3.7 | 2.6 | 1.4 | 5.1 | 40.0 | 40.0 | 4.4 | ||
| TGM-199-1,4-2,5 | 1.2 | 5.4 | 6.0 | 4.6 | 3.2 | 1.7 | 5.2 | 40.0 | 40.0 | 4.9 | ||
| TGM-199-1,4-3,2 | 0.9 | 5.6 | 5.0 | 5.9 | 4.1 | 2.2 | 5.4 | 40.0 | 40.0 | 5.7 | ||
| TGM-199-1,4-3,5 | 0.9 | 5.6 | 5.0 | 6.5 | 4.5 | 2.4 | 5.4 | 40.0 | 40.0 | 6.0 | ||
| TGM-254-1,0-1,3 | 1.1 | 6.6 | 7.0 | 6.0 | 4.2 | 1.4 | 5.0 | 40.0 | 40.0 | 3.6 | ||
| TGM-254-1,0-1,5 | 1.0 | 6.8 | 7.0 | 6.9 | 4.8 | 1.6 | 5.1 | 40.0 | 40.0 | 3.8 | ||
| TGM-254-1,0-2,5 | 0.6 | 7.2 | 5.0 | 11.6 | 8.0 | 2.5 | 5.4 | 40.0 | 40.0 | 4.8 | ||
| TGM-287-1,0-1,3 | 1.1 | 7.3 | 8.0 | 6.7 | 4.7 | 1.2 | 4.9 | 40.0 | 40.0 | 3.6 | ||
| TGM-287-1,0-1,5 | 1.0 | 7.5 | 7.0 | 7.8 | 5.4 | 1.4 | 5.0 | 40.0 | 40.0 | 3.8 | ||
| TGM-287-1,0-2,5 | 0.6 | 8.1 | 5.0 | 13.0 | 9.0 | 2.3 | 5.3 | 40.0 | 40.0 | 4.8 | ||
| TGM-253-1,4-1,5R | 1.8 | 6.8 | 12.0 | 3.8 | 2.6 | 0.9 | 5.1 | 62.0 | 0.0 | 3.9 |
