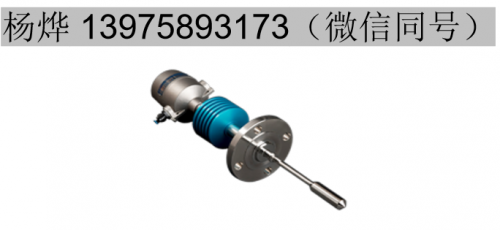

海默生高温在线粘度计 Hydramotion XL7-HT适用于-50℃至400℃的温度范围及最高700 bar的压力条件，粘度测量范围为0至10⁹ cP，精度为±0.1 cP或读数的1%，重复性优于1%，单次测量时间为1秒。传感器采用316 SS不锈钢材质，并可选用哈氏合金C22、C276或SAF2507等耐腐蚀材料，过程连接支持法兰、螺纹、夹具等多种形式并可定制，防护等级为IP67，可用于安全区及Ga Ex ia IIC T1-T6防爆区域。变送器供电为24 VDC、150 mA，提供三路可配置的4~20 mA模拟输出，分别用于输出粘度、补偿后粘度及温度，另配有两路电压触点报警输出，数字通信接口包括RS485 Modbus和USB。变送器外壳为聚碳酸酯，防护等级IP65，外形尺寸200×120×90 mm，重量920 g。海默生高温在线粘度计 Hydramotion XL7-HT可适配罐体、弯头、垂直管道等多种安装位置以及各类过程连接需求。
| 粘度指标 | 测量范围 | From 0 – 1cP to 0 – 10 9 cP over 10 models |
| 测量时间 | 1 second |
| 测量精度 | 1% of reading or +/- 1 digit |
| 测量重复性 | 0.3% of reading or +/- 1 digit |
温度指标 | 标准 | -50 °C to 150 °C |
| HT高温性 | -50 °C to 400 °C |
| 高温定制 | Temperature greater than 150 / 400 °C to order* |
压力指标 | 标准 | 法兰标准 |
| 高压可定制 | To order for extreme pressure * |
过程连接 | 标准 | 法兰，螺纹，咔咕，ll flanges, threads, clamps, hygienic |
| 接口定制 | Non-standard process connection to order * |
| 电气连接 | 信号线长度 | As required – not affected by cable length up to 1000m |
| 信号线类型 | Any standard instrument cable |
| 供电 | VP Processor powered |
| 危险区域 | All instruments available for Ex Hazardous Area, explosive atmospheres |
| | Ga Ex ia IIC T1…T6 |
结构 | All welded, crevice-free | |
材质 | 表头 | SS316 ( EN 1.4401) |
| 安装接口 | As Required |
| 传感器 | SS316 ( EN 1.4401) and SS316L ( EN 1.4404) as standard |
| 传感器可选材质 | Alloy C22 (EN 2.4602) |
| | Alloy C276 (EN 2.4819) |
| | S32750 Duplex Steel (EN 1.4410) |
| 特殊材质 | Non-standard materials to order * |
表面处理 | 标准 | N6 0.8 Ra |
| Finish Options | Fluoropolymer |
| | Electropolished |
| | Electroplated |
| Special Finish | Non-standard finish options and coatings to order * |
防护等级 | Standard | IP67 |
软件 | ViscoLink data viewing and logging PC software |
| | |
* 定制服务 | Custom variations to instrument specification and dimensions routinely provided by our dedicated Special Operations division |
| | |
| As it is Hydramotion’s policy to continuously develop and improve its products, some specifications may change without notice |
