CRYOGENIC PRESSURE TRANSDUCER 低温压力传感器
MODEL 7720
GP:50的7720系列是一个低温压力传感器系列,在低至-320°F(-196°C)的温度下提供一致的测量精度。该系列的特点是一个轻便,全不锈钢结构,可选择4-20mA,0到5Vdc,或0到10Vdc输出;或可选的数字协议。车载隔离传感器电子设备通过不锈钢护套柔性管远程安装。7720系列的高可靠性已经在25年的现场验证和数百个关键应用。
特征:
- Reliable cryogenic performance to -320 °F (-196 °C)
可靠的低温性能至-320°F(-196°C)
- Hydrogen and LOX compatible options available
与氢气和LOX兼容的选项具有可用性

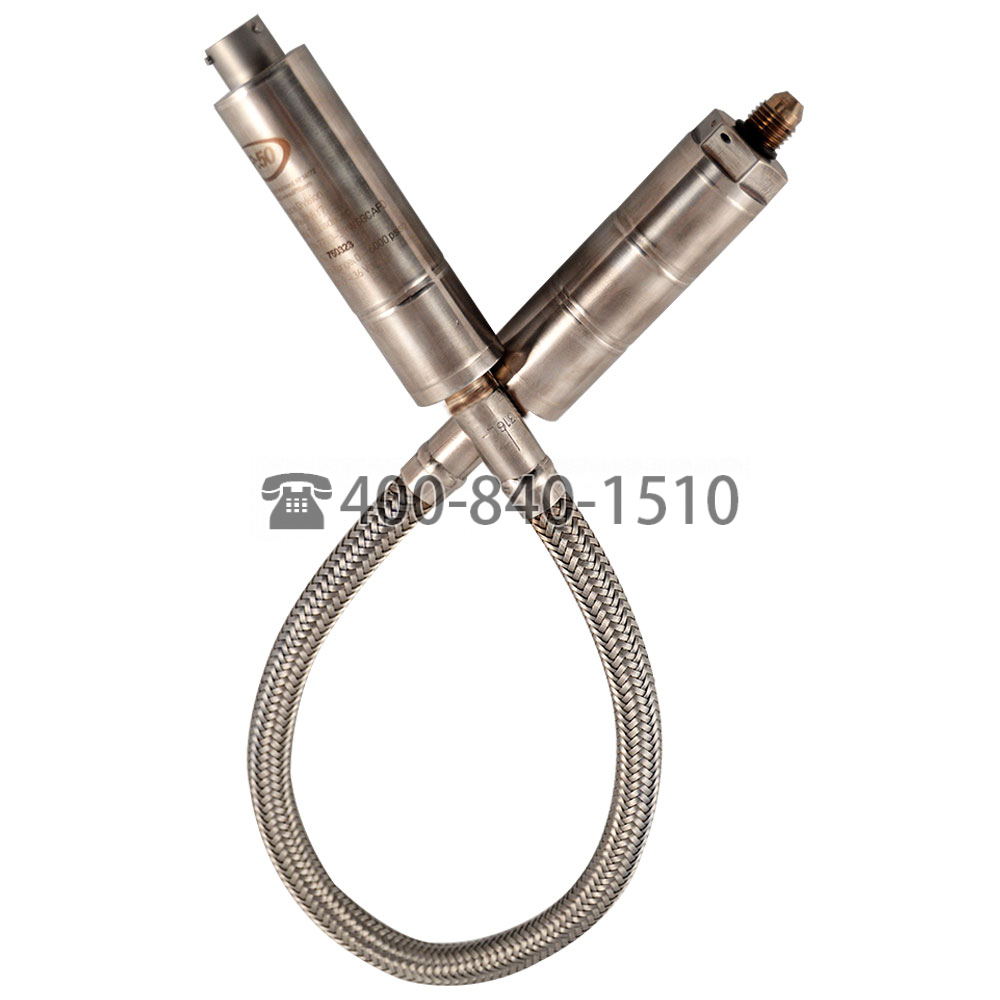

- Isolated remote electronics via stainless steel armored flex tubing
通过不锈钢装甲柔性管隔离远程电子
- Standard accuracy to +0.3% FSO
标准精度为+的0.3%FSO
- Lightweight, all stainless steel construction (<10 oz.; 0.2 kg)
轻质,全不锈钢结构 (<10 oz.; 0.2 kg)
- Choice of 4-20 mA, 0-5 Vdc, 0-10 Vdc or optional digital output
可选择4-20mA、0-5Vdc、0-10Vdc或可选的数字输出
应用:
- LNG pressures
- Aerospace propulsion systems
- Military and defense programs
- Liquid gas custody transfer
选型:
- 0 to 5 Vdc, 0 to 10 Vdc or 4-20 mA output
- RS232, RS485 and CAN outputs
- Zero and span adjustments
- Optional electrical connections
- High-temperature version to +350 °F (+177 °C)
(see Model 7780)
- Various MIL-SPECS available. Consult factory.
