美国Carver压片机 旋转压片机 平板压片机 热压机 平板硫化机 球团压片机 Kbr制片 IR红外压片

销售经理：张琼琼 17765103945（微信同号）

美国Carver压片机 旋转压片机 平板压片机 热压机 平板硫化机 球团压片机 Kbr制片 IR红外压片 全自动压片机 手动压片机

材料研发：陶瓷、化合物、建筑材料、化妆品、药品、粉末金属、印刷电路板、橡胶、硅树脂及其他弹性体、热塑性塑料、热固性塑料等。
质量控制和物理性能测试：各种力学性能测试、热学性能测试、光学性能测试、电学性能测试等。
压合生产：专用卡、身份卡、各种板材和印刷电路板等。

主要用于红外分析仪、X射线及X荧光分析仪等样品的压制。

Carver可提供各种实验室压片机，主要有双柱和四柱式热压机，从驱动方式分为气动、油压和电动等；从档次上分为手动和自动的；从款式上分为台式和落地式（12吨到100吨）；还提供各式各样的附件。Carver压片机总有一款可以满足客户的所有要求。
Carver手动液压压片机是非常坚固可靠的，并以特别耐用而着称。压力分为12吨、25吨和30吨三种。主要用于红外分析仪、X射线及X荧光分析仪等样品的压制，模具直径包括13mm、31mm和40mm。
12吨压片机 Carver压片机4350型压实密度仪 3850(Mini C型) 12吨、手动、双支柱、实验室液压压片机，配有6英寸x6英寸压盘。紧凑型便携式，占地面积小于C型。这款压片机适合于狭小的空间或放置于手套箱操作，也适于野外操作。压盘间距可调，坚硬的钢制结构，确保压片的精度，配有安全防护罩，英制公制双显示表盘。
4350.L 配有4″圆形压盘的冲模式压片机，和4350一样，不带模具。
3851(C型) 12吨、手动、双支柱实验室液压压片机，与上面的MiniC相似，但体积稍大，加强了支架，压盘行程可达18″。英制公制双显示压力表盘。Carver压片机4350型压实密度仪 3968(12-10型) 12吨、手动、双支柱液压压片机，与上面的3851相似，加强了支架，可移动压盘行程可达16″。英制公制双显示压力表盘。
3969(12-12型) 12吨、手动、四支柱液压压片机，确保12″x12″压盘平稳运行。英制公制双显示压力表盘。
25吨压片机
3853(M 型) 25吨、手动、双支柱液压压片机，压盘间距可调。坚硬的铸铁和钢制结构，确保压片的精度和机器的使用寿命。英制公制双显示压力表盘。
3855(25-12型) 25吨、手动、四支柱液压压片机，英制公制双显示压力表盘。
30吨压片机
3970(30-12型) 30吨、手动、四支柱液压压片机，两级液压器，级用来保压，第二级用来增压。英制公制双显示压力表盘。
4386(CH型) 12吨、手动、双支柱、实验室液压压片机，配有电加热压盘。压盘间距达15英寸，英制公制双显示表盘。
4120(12-10H型) 12吨、手动、双支柱液压压片机。与4386相似，但加强了支架和移动压盘。配有10英寸x7英寸电加热压盘，zui高温度达343℃，每块加热压盘都配有独立的数字控制器。英制公制双显示表盘。
4122(12-12H型) 12吨、手动、四支柱液压压片机。四支柱结构确保12英寸x12英寸压盘平稳运行。英制公制双显示表盘，电加热盘zui高温度达343℃，每块加热压盘都配有独立的数字控制器。
4123( 12-12-2H型) 与4122相同，配有四支柱电加热压盘，双层压盘，间距达3英寸。可以选配水冷却压盘。
4389(MH型) 25吨、手动、双支柱液压压片机，配有电加热压盘。压盘间距可调。坚固的铸铁和钢制结构，确保压片的精度和机器的使用寿命。英制公制双显示表盘，可以选配水冷却压盘。
3856(25-12H型) 25吨、手动、四支柱液压压片机。英制公制双显示表盘。12英寸x12英寸电加热盘zui高温度达343℃ ，每块加热压盘都配有独立的数字控制器。特殊的8英寸x8英寸电加热盘zui高温度可达826℃，可以选配水冷却压盘。
4126( 25-12-2H型) 与3856相似，配有四块儿电加热压盘，同时处理2个样品。可以选配水冷却压盘。
4128(30-12H型) 30吨、手动、四支柱液压压片机。 两级液压器，级用来保压，第二级用来增压。英制公制双显示表盘。电加热盘zui高温度达343℃，每块加热压盘都配有独立的数字控制器。特殊的8英寸x8英寸电加热盘zui高温度可达826℃。您可以选配华氏或摄氏温度显示，也可显示电压。
4129( 30-12-2 H型) 与4128相似，配有四块儿电加热压盘，同时处理2个样品。可以选配水冷却压盘。
需要更详细的台式压片机资料咨询，皕赫国际贸易（上海）有限公司！

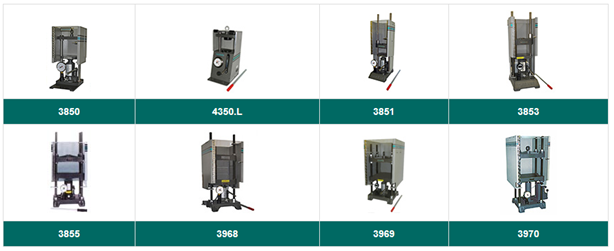

Carver实验室台式压片机: 12, 25和30T压力

Model 3850

(Model Mini C) Twelve ton manual, two-column hydraulic press with 6″ x 6″ square platens. Compact and portable, requiring less bench space than our Model C. This press is ideal for constricted bench space or glove box applications, as well as field work. It features adjustable daylight, steel construction for rigid precision and includes safety shield for operator protection. Easy to-read dual scale analog gauge, reading in pounds force and metric tons. (picture shown with analog gauge) Specifications of the Bench Top Manually Unheated Mini C 3850 Model Press:

  • Manually operated
  • Clamping force 12 tons
  • Daylight opening 0.75″ – 7″ (Factory set at 6”)
  • Stroke 5-1/8”
  • Two (2) fully threaded columns
  • 6” x 6” work area
  • 0-24,000 lb Analog pressure gauge (digital gauge also available)
  • Light gray safety shield
  • Dark gray frame
  • Dimensions: 12”L-R x 16”F-B x 25”H (uncrated)

Model 4350

Pellet press with 4″ round platen which has centering grooves for proper die alignment. This pellet press comes in two model choices; Model 4350 which comes with a 13mm (3619) die set and the Model 4350.L which does not come with a die. This press has a small footprint which makes it compact for field use. (picture shown with analog gauge, less die set)

Specifications of the Bench Top Manual Pellet Press Model 4350.L:

  • Manually operated
  • Heavy-duty extended base frame with die storage cavity
  • Rugged construction to eliminate deflection
  • Extended daylight opening and stroke for procedures requiring high compaction ratios
  • Clamping force 12 tons
  • Daylight opening 0″ – 5.5″
  • Stroke 5-1/8”
  • Fully enclosed hydraulic unit
  • Two (2) fully threaded columns
  • 3.5” round top platen
  • 4” round bottom work area (black oxide coated for corrosion resistance)
  • Front mounted (0-24,000 lb) Analog pressure gauge (digital gauge also available)
  • Front mounted pump for easy application of full tonnage
  • Special features, including:
    • Polycarbonate safety shield with latch
    • Upper platen with concentric circles for die alignment (Black oxide coated for corrosion resistance)
    • Evacuation port for connection to an existing vacuum source
    • Paint: Carver gray two-tone
    • Removable pump handle

Model 3851

(Model C) Twelve ton, manual, two-column hydraulic lab press. Similar to a Mini C, however with a much larger daylight opening up to 18″ and heavier construction. Easy-to-read dual scale analog gauge, reading in pounds force and metric tons. (picture shown with analog gauge)

Specifications of the Bench Top Manually Unheated Model C 3851 Press:

  • Manually operated
  • Clamping force 12 tons
  • Daylight opening 0.75″ – 18″ (Factory set at 4-1/2”)
  • Stroke 5-1/8”
  • Two (2) fully threaded columns
  • 6” x 6” work area
  • 0-24,000 lb Analog pressure gauge, reading in 200 lb increments (digital gauge also available)
  • Light gray safety shield
  • Dark gray frame
  • Dimensions: 15”L-R x 16”F-B x 39”H (uncrated)

Model 3968

(Model 12-10) Twelve ton, manual, two-column hydraulic press. Daylight opening is adjustable up to 16″. Easy-to-read dual scale analog gauge, reading in pounds force and metric tons. (picture shown with analog gauge)

Specifications of the Bench Top Manually Unheated Model 3968 Press:

  • Manually operated
  • Clamping force 12 tons
  • Daylight opening 1″ – 16″ (Factory set at 4-1/2”)
  • Stroke 5-1/8”
  • Two (2) fully threaded columns
  • 10”x 7” work area
  • 0-24,000 lb Analog pressure gauge, reading in 200 lb increments (digital gauge also available)
  • Light gray safety shield
  • Dark gray frame
  • Dimensions: 17”L-R x 18”F-B x 39”H (uncrated)
  • Weight: 345 pounds (uncrated)

Model 3853

(Model M) Twenty-five ton, manual, two-column hydraulic press. Daylight opening is adjustable to 16″. Rigid cast iron and steel construction for precision and durability. Easy-to-read dual scale analog gauge, reading in pounds force and metric tons. (picture shown with analog gauge)

Specifications of the Bench Top Manually Unheated Model M 3853 Press:

  • Manually operated
  • Clamping force 25 tons
  • Daylight opening 0.75″ – 16″ (Factory set at 6-1/2”)
  • Stroke 6-1/2”
  • Two (2) fully threaded columns
  • 9” x 9” work area
  • 0-50,000 lb Analog pressure gauge, reading in 500 lb increments (digital gauge also available)
  • Light gray safety shield
  • Dark gray frame
  • Dimensions: 19”L-R x 24”F-B x 42”H (uncrated)
