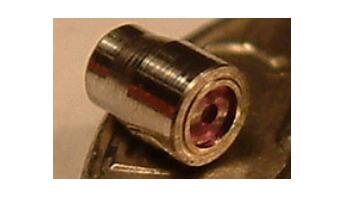

Bird Press-In Orifice Inserts插入式气阻喷嘴

RB82331系列不锈钢精密孔板压入式插入件（73）

0.078“直径x 0.071”长不锈钢压入式插件

压入式孔板插入件易于安装到各种应用中。

这些精密插入件通常有一根小导线设计在阀芯中，以便于插入。这有助于在最终将插入件驱动回原位之前确保对齐。

询问Bird工作人员有关干扰容限和插入辅助工具的信息。

RB82571SS-22329RB82571 Series 0.0004 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0004 in0.094 in0.120 in0.060 in
RB82571SS-22320RB82571 Series 0.0005 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0005 in0.094 in0.120 in0.060 in
RB82571SS-22023RB82571 Series 0.0006 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0006 in0.094 in0.120 in0.060 in
RB82571SS-22104RB82571 Series 0.0008 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0008 in0.094 in0.120 in0.060 in
RB82571SS-22143RB82571 Series 0.0010 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0010 in0.094 in0.120 in0.060 in
RB82571SS-22111RB82571 Series 0.0012 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0012 in0.094 in0.120 in0.060 in
RB82571SS-22231RB82571 Series 0.0014 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0014 in0.094 in0.120 in0.060 in
RB82571SS-22114RB82571 Series 0.0016 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0016 in0.094 in0.120 in0.060 in
RB82571SS-22350RB82571 Series 0.0017 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0017 in0.094 in0.120 in0.060 in
RB82571SS-22276RB82571 Series 0.0018 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0018 in0.094 in0.120 in0.060 in
RB82571SS-22021RB82571 Series 0.0020 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0020 in0.094 in0.120 in0.060 in
RB82571SS-22277RB82571 Series 0.0022 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0022 in0.094 in0.120 in0.060 in
RB82571SS-22029RB82571 Series 0.0025 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0025 in0.094 in0.120 in0.060 in
RB82571SS-22180RB82571 Series 0.0026 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0026 in0.094 in0.120 in0.060 in
RB82571SS-22033RB82571 Series 0.0030 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0030 in0.094 in0.120 in0.060 in
RB82571SS-22034RB82571 Series 0.0035 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0035 in0.094 in0.120 in0.060 in
RB82571SS-22037RB82571 Series 0.0040 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0040 in0.094 in0.120 in0.060 in
RB82571SS-22038RB82571 Series 0.0045 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0045 in0.094 in0.120 in0.060 in
RB82571SS-22375RB82571 Series 0.0046 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0046 in0.094 in0.120 in0.060 in
RB82571SS-22039RB82571 Series 0.0050 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0050 in0.094 in0.120 in0.060 in
RB82571SS-22042RB82571 Series 0.0055 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0055 in0.094 in0.120 in0.060 in
RB82571SS-22012RB82571 Series 0.0060 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0060 in0.094 in0.120 in0.060 in
RB82571SS-22043RB82571 Series 0.0065 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0065 in0.094 in0.120 in0.060 in
RB82571SS-22844RB82571 Series 0.0070 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0070 in0.094 in0.120 in0.060 in
RB82571SS-22044RB82571 Series 0.0075 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0075 in0.094 in0.120 in0.060 in

RB82571系列303和316不锈钢精密孔板压入插入件（73）

不锈钢压入孔插入件直径0.094英寸x长0.120英寸

压入式插件易于安装到各种应用中。这些精密插入件通常有一个小导线，用于帮助插入。这有助于确保在将插件驱动回原位之前对齐。

RB82433SS-22329RB82433 Series 0.0004 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0004 in0.112 in0.120 in0.060 in
RB82433SS-22320RB82433 Series 0.0005 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0005 in0.112 in0.120 in0.060 in
RB82433SS-22023RB82433 Series 0.0006 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0006 in0.112 in0.120 in0.060 in
RB82433SS-22104RB82433 Series 0.0008 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0008 in0.112 in0.120 in0.060 in
RB82433SS-22143RB82433 Series 0.0010 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0010 in0.112 in0.120 in0.060 in
RB82433SS-22111RB82433 Series 0.0012 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0012 in0.112 in0.120 in0.060 in
RB82433SS-22231RB82433 Series 0.0014 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0014 in0.112 in0.120 in0.060 in
RB82433SS-22114RB82433 Series 0.0016 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0016 in0.112 in0.120 in0.060 in
RB82433SS-22350RB82433 Series 0.0017 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0017 in0.112 in0.120 in0.060 in
RB82433SS-22276RB82433 Series 0.0018 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0018 in0.112 in0.120 in0.060 in
RB82433SS-22021RB82433 Series 0.0020 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0020 in0.112 in0.120 in0.060 in
RB82433SS-22277RB82433 Series 0.0022 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0022 in0.112 in0.120 in0.060 in
RB82433SS-22029RB82433 Series 0.0025 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0025 in0.112 in0.120 in0.060 in
RB82433SS-22180RB82433 Series 0.0026 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0026 in0.112 in0.120 in0.060 in
RB82433SS-22033RB82433 Series 0.0030 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0030 in0.112 in0.120 in0.060 in
RB82433SS-22034RB82433 Series 0.0035 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0035 in0.112 in0.120 in0.060 in
RB82433SS-22037RB82433 Series 0.0040 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0040 in0.112 in0.120 in0.060 in
RB82433SS-22038RB82433 Series 0.0045 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0045 in0.112 in0.120 in0.060 in
RB82433SS-22375RB82433 Series 0.0046 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0046 in0.112 in0.120 in0.060 in
RB82433SS-22039RB82433 Series 0.0050 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0050 in0.112 in0.120 in0.060 in
RB82433SS-22042RB82433 Series 0.0055 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0055 in0.112 in0.120 in0.060 in
RB82433SS-22012RB82433 Series 0.0060 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0060 in0.112 in0.120 in0.060 in
RB82433SS-22043RB82433 Series 0.0065 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0065 in0.112 in0.120 in0.060 in
RB82433SS-22844RB82433 Series 0.0070 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0070 in0.112 in0.120 in0.060 in
RB82433SS-22044RB82433 Series 0.0075 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0075 in0.112 in0.120 in0.060 in

RB82433系列303不锈钢精密孔板压入插入件（73）

不锈钢压入式插件，直径0.112“x长0.120”

压入式插件易于安装到各种应用中。这些精密插入件通常有一个小导线，用于方便插入。这样可以确保在将墨盒驱动回家之前将其对齐。请向Bird工作人员咨询插入公差和其他应用辅助工具。

RB82015系列303和316不锈钢精密孔板压入插入件（73）

RB82015SS-22329RB82015 Series 0.0004 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0004 in1/8 in0.120 in0.060 in
RB82015SS-22320RB82015 Series 0.0005 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0005 in1/8 in0.120 in0.060 in
RB82015SS-22023RB82015 Series 0.0006 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0006 in1/8 in0.120 in0.060 in
RB82015SS-22104RB82015 Series 0.0008 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0008 in1/8 in0.120 in0.060 in
RB82015SS-22143RB82015 Series 0.0010 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0010 in1/8 in0.120 in0.060 in
RB82015SS-22111RB82015 Series 0.0012 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0012 in1/8 in0.120 in0.060 in
RB82015SS-22231RB82015 Series 0.0014 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0014 in1/8 in0.120 in0.060 in
RB82015SS-22114RB82015 Series 0.0016 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0016 in1/8 in0.120 in0.060 in
RB82015SS-22350RB82015 Series 0.0017 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0017 in1/8 in0.120 in0.060 in
RB82015SS-22276RB82015 Series 0.0018 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0018 in1/8 in0.120 in0.060 in
RB82015SS-22021RB82015 Series 0.0020 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0020 in1/8 in0.120 in0.060 in
RB82015SS-22277RB82015 Series 0.0022 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0022 in1/8 in0.120 in0.060 in
RB82015SS-22029RB82015 Series 0.0025 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0025 in1/8 in0.120 in0.060 in
RB82015SS-22180RB82015 Series 0.0026 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0026 in1/8 in0.120 in0.060 in
RB82015SS-22033RB82015 Series 0.0030 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0030 in1/8 in0.120 in0.060 in
RB82015SS-22034RB82015 Series 0.0035 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0035 in1/8 in0.120 in0.060 in
RB82015SS-22037RB82015 Series 0.0040 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0040 in1/8 in0.120 in0.060 in
RB82015SS-22038RB82015 Series 0.0045 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0045 in1/8 in0.120 in0.060 in
RB82015SS-22375RB82015 Series 0.0046 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0046 in1/8 in0.120 in0.060 in
RB82015SS-22039RB82015 Series 0.0050 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0050 in1/8 in0.120 in0.060 in
RB82015SS-22042RB82015 Series 0.0055 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0055 in1/8 in0.120 in0.060 in
RB82015SS-22012RB82015 Series 0.0060 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0060 in1/8 in0.120 in0.060 in
RB82015SS-22043RB82015 Series 0.0065 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0065 in1/8 in0.120 in0.060 in
RB82015SS-22844RB82015 Series 0.0070 Inch (in) Inner Diameter (I.D.) and 0.060 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0070 in1/8 in0.120 in0.060 in

不锈钢压入式插件，直径0.125“x长0.120”

压入式插入件易于插入到各种应用中。这些精密插入件通常有一个小导线，用于方便插入。这有助于在开车回家之前确保对齐。请向Bird工作人员咨询插入公差和其他插入辅助工具。

RB82685系列303和316不锈钢精密孔板压入插入件（81）

RB82685SS-22241RB82685 Series 0.0050 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0050 in0.156 in0.125 in0.1180 in
RB82685SS-22242RB82685 Series 0.0055 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0055 in0.156 in0.125 in0.1180 in
RB82685SS-22244RB82685 Series 0.0060 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0060 in0.156 in0.125 in0.1180 in
RB82685SS-22247RB82685 Series 0.0065 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0065 in0.156 in0.125 in0.1180 in
RB82685SS-22249RB82685 Series 0.0070 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0070 in0.156 in0.125 in0.1180 in
RB82685SS-22261RB82685 Series 0.0075 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0075 in0.156 in0.125 in0.1180 in
RB82685SS-22263RB82685 Series 0.0080 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0080 in0.156 in0.125 in0.1180 in
RB82685SS-22398RB82685 Series 0.0085 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0085 in0.156 in0.125 in0.1180 in
RB82685SS-22090RB82685 Series 0.0090 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0090 in0.156 in0.125 in0.1180 in
RB82685SS-22267RB82685 Series 0.0095 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0095 in0.156 in0.125 in0.1180 in
RB82685SS-22027RB82685 Series 0.0100 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0100 in0.156 in0.125 in0.1180 in
RB82685SS-22273RB82685 Series 0.0105 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0105 in0.156 in0.125 in0.1180 in
RB82685SS-22093RB82685 Series 0.0110 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0110 in0.156 in0.125 in0.1180 in
RB82685SS-22279RB82685 Series 0.0115 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0115 in0.156 in0.125 in0.1180 in
RB82685SS-22022RB82685 Series 0.0118 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0118 in0.156 in0.125 in0.1180 in
RB82685SS-22157RB82685 Series 0.0120 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0120 in0.156 in0.125 in0.1180 in
RB82685SS-22099RB82685 Series 0.0130 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0130 in0.156 in0.125 in0.1180 in
RB82685SS-22290RB82685 Series 0.0135 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0135 in0.156 in0.125 in0.1180 in
RB82685SS-22100RB82685 Series 0.0140 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0140 in0.156 in0.125 in0.1180 in
RB82685SS-22301RB82685 Series 0.0145 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0145 in0.156 in0.125 in0.1180 in
RB82685SS-22098RB82685 Series 0.0150 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0150 in0.156 in0.125 in0.1180 in
RB82685SS-22106RB82685 Series 0.0160 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0160 in0.156 in0.125 in0.1180 in
RB82685SS-22110RB82685 Series 0.0170 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0170 in0.156 in0.125 in0.1180 in
RB82685SS-22305RB82685 Series 0.0180 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0180 in0.156 in0.125 in0.1180 in
RB82685SS-22326RB82685 Series 0.0200 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303/316 Stainless Steel Precision Orifice Press-In Insert0.0200 in0.156 in0.125 in0.1180 in

不锈钢压入式插件，直径0.156“x长0.125”

压入式插入件易于插入到各种应用中。这些精密插入件通常有一个小导线，用于方便插入。这样可以确保在最终将墨盒驱动回家之前对齐。

询问Bird工作人员有关干扰容限和插入辅助工具的信息。

RB82203系列316不锈钢精密孔板压入式插入件（81）

RB82203SS-22241RB82203 Series 0.0050 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0050 in0.200 in0.1180 in
RB82203SS-22242RB82203 Series 0.0055 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0055 in0.200 in0.1180 in
RB82203SS-22244RB82203 Series 0.0060 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0060 in0.200 in0.1180 in
RB82203SS-22247RB82203 Series 0.0065 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0065 in0.200 in0.1180 in
RB82203SS-22249RB82203 Series 0.0070 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0070 in0.200 in0.1180 in
RB82203SS-22261RB82203 Series 0.0075 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0075 in0.200 in0.1180 in
RB82203SS-22263RB82203 Series 0.0080 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0080 in0.200 in0.1180 in
RB82203SS-22398RB82203 Series 0.0085 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0085 in0.200 in0.1180 in
RB82203SS-22090RB82203 Series 0.0090 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0090 in0.200 in0.1180 in
RB82203SS-22267RB82203 Series 0.0095 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0095 in0.200 in0.1180 in
RB82203SS-22027RB82203 Series 0.0100 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0100 in0.200 in0.1180 in
RB82203SS-22273RB82203 Series 0.0105 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0105 in0.200 in0.1180 in
RB82203SS-22093RB82203 Series 0.0110 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0110 in0.200 in0.1180 in
RB82203SS-22279RB82203 Series 0.0115 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0115 in0.200 in0.1180 in
RB82203SS-22022RB82203 Series 0.0118 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0118 in0.200 in0.1180 in
RB82203SS-22157RB82203 Series 0.0120 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0120 in0.200 in0.1180 in
RB82203SS-22099RB82203 Series 0.0130 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0130 in0.200 in0.1180 in
RB82203SS-22290RB82203 Series 0.0135 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0135 in0.200 in0.1180 in
RB82203SS-22100RB82203 Series 0.0140 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0140 in0.200 in0.1180 in
RB82203SS-22301RB82203 Series 0.0145 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0145 in0.200 in0.1180 in
RB82203SS-22098RB82203 Series 0.0150 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0150 in0.200 in0.1180 in
RB82203SS-22106RB82203 Series 0.0160 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0160 in0.200 in0.1180 in
RB82203SS-22110RB82203 Series 0.0170 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0170 in0.200 in0.1180 in
RB82203SS-22305RB82203 Series 0.0180 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0180 in0.200 in0.1180 in
RB82203SS-22326RB82203 Series 0.0200 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 316 Stainless Steel Precision Orifice Press-In Insert0.0200 in0.200 in0.1180 in

不锈钢压入式插件，直径0.200“x 0.060厚

压入式插入件易于插入到各种应用中。这些精密插入件通常有一个小导线，用于方便插入。这样可以确保在最终将墨盒驱动回家之前对齐。

询问Bird工作人员有关干扰容限和插入辅助工具的信息。

RB82742系列303不锈钢精密孔板压入插入件（194）

RB82742SS-22241RB82742 Series 0.0050 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0050 in0.204 in0.150 in0.1180 in
RB82742SS-22242RB82742 Series 0.0055 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0055 in0.204 in0.150 in0.1180 in
RB82742SS-22244RB82742 Series 0.0060 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0060 in0.204 in0.150 in0.1180 in
RB82742SS-22247RB82742 Series 0.0065 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0065 in0.204 in0.150 in0.1180 in
RB82742SS-22249RB82742 Series 0.0070 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0070 in0.204 in0.150 in0.1180 in
RB82742SS-22261RB82742 Series 0.0075 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0075 in0.204 in0.150 in0.1180 in
RB82742SS-22263RB82742 Series 0.0080 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0080 in0.204 in0.150 in0.1180 in
RB82742SS-22398RB82742 Series 0.0085 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0085 in0.204 in0.150 in0.1180 in
RB82742SS-22090RB82742 Series 0.0090 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0090 in0.204 in0.150 in0.1180 in
RB82742SS-22267RB82742 Series 0.0095 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0095 in0.204 in0.150 in0.1180 in
RB82742SS-22027RB82742 Series 0.0100 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0100 in0.204 in0.150 in0.1180 in
RB82742SS-22273RB82742 Series 0.0105 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0105 in0.204 in0.150 in0.1180 in
RB82742SS-22093RB82742 Series 0.0110 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0110 in0.204 in0.150 in0.1180 in
RB82742SS-22279RB82742 Series 0.0115 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0115 in0.204 in0.150 in0.1180 in
RB82742SS-22022RB82742 Series 0.0118 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0118 in0.204 in0.150 in0.1180 in
RB82742SS-22157RB82742 Series 0.0120 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0120 in0.204 in0.150 in0.1180 in
RB82742SS-22099RB82742 Series 0.0130 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0130 in0.204 in0.150 in0.1180 in
RB82742SS-22290RB82742 Series 0.0135 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0135 in0.204 in0.150 in0.1180 in
RB82742SS-22100RB82742 Series 0.0140 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0140 in0.204 in0.150 in0.1180 in
RB82742SS-22301RB82742 Series 0.0145 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0145 in0.204 in0.150 in0.1180 in
RB82742SS-22098RB82742 Series 0.0150 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0150 in0.204 in0.150 in0.1180 in
RB82742SS-22106RB82742 Series 0.0160 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0160 in0.204 in0.150 in0.1180 in
RB82742SS-22110RB82742 Series 0.0170 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0170 in0.204 in0.150 in0.1180 in
RB82742SS-22305RB82742 Series 0.0180 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0180 in0.204 in0.150 in0.1180 in
RB82742SS-22326RB82742 Series 0.0200 Inch (in) Inner Diameter (I.D.) and 0.118 Inch (in) Outer Diameter (O.D.) 303 Stainless Steel Precision Orifice Press-In Insert0.0200 in0.204 in0.150 in0.1180 in

不锈钢压入式插件，直径0.204“x长0.150”

压入式插件易于安装到各种应用中。这些精密插入件通常有一个小导线，用于方便插入。这有助于确保在将墨盒驱动回家之前将其对齐。

请向Bird工作人员咨询插入公差建议和其他插入辅助工具。

RB82073系列303不锈钢精密孔板压入插入件（194）

不锈钢压入式插件，直径0.250“x长0.125”

压入式插件易于安装到各种应用中。这些精密插入件通常有一个小导线，用于方便插入。这有助于确保在将墨盒驱动回家之前将其对齐。向Bird工作人员咨询插入公差建议和其他实用插入辅助工具。该插件为不锈钢303材料。


宝石气阻 宝石轴承 气阻喷嘴 红宝石气阻 蓝宝石气阻 螺纹内插式气阻

Related posts
