HG系列起重机以重量轻、结构紧凑的包装提供高起重能力。特定型号的额定重量为在一条线上最多可提升5000磅，在整个滚筒上最高可达到每分钟150英尺的速度。
选项包括AutoAdvance Line Spoolers、Hammerhead手推车、手动高架手推车、电缆张紧器和各种电气控制选项。HG系列启闭机可定制以满足任何应用的确切需求。
特征
- 额定垂直提升
- 自动负载悬挂制动系统
- 全封闭齿轮系
- 三级行星减速
- 任何角度的简单安装
- 可靠的叶片电机
| Model | HP | Power Input | Gear Ratio |
Calculated Performance | ||||||
| First Layer | Mean Drum | Full Drum | ||||||||
| PSI | SCFM | LBS | FPM | LBS | FPM | LBS | FPM | |||
| HG750-P | 4.25 | 65 | 110 | 36:1 | 750 | 95.4 | 562 | 123.8 | 457 | 152.1 |
| HG1600-P | 6.5 | 75 | 190 | 36:1 | 1,600 | 95.4 | 1,206 | 123.8 | 981 | 152.1 |
| HG2750-P | 2.5 | 70 | 75 | 261:1 | 2,750 | 17.6 | 2,190 | 22.8 | 1,782 | 28.0 |
| HG5000-P | 4.25 | 65 | 110 | 261:1 | 5,000 | 13.2 | 3,910 | 17.1 | 3,182 | 21.0 |
Performance based on intermittent duty cycles

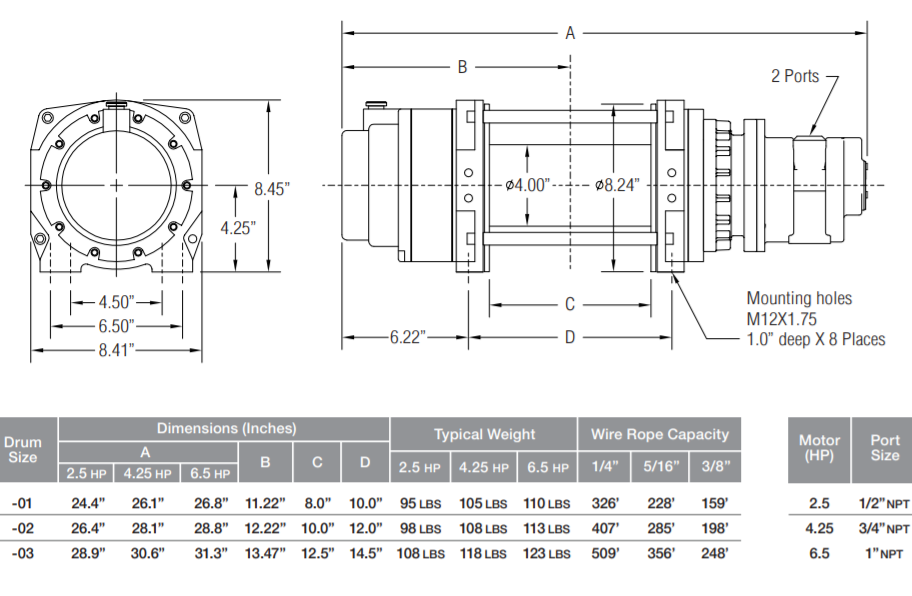

| Drum Size | Typical Weight | Wire Rope Capacity | ||||
| 2.5 HP | 4.25 HP | 6.5 HP | 1/4″ | 5/16″ | 3/8″ | |
| -01 | 95 lbs. | 105 lbs. | 110 lbs. | 326′ | 228′ | 159′ |
| -02 | 98 lbs. | 108 lbs. | 113 lbs. | 407′ | 285′ | 198′ |
| -03 | 108 lbs. | 118 lbs. | 123 lbs. | 509′ | 356′ | 248′ |
