意大利 ADEV 7873 氧化锆烟气分析仪

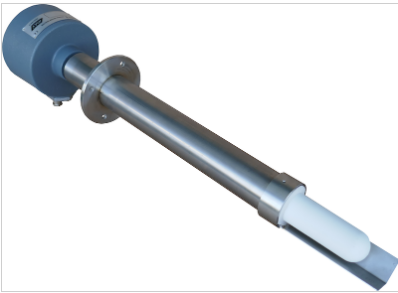

自热式探头，设计用于测量烟气中的氧气（最高 700°C）。设计用于测量烟气中的氧气，以提高以天然气、轻油和重油、液化石油气、生物质和煤炭为原料的大型锅炉和发电厂的燃烧效率和燃料节省。
可用作探头输出 4-20 mA 的发射器，或与控制单元/显示器结合使用。
可测量气体
氧气 [O2]
主要特点
极端粗糙度
- 接触工艺气体的坚固材料
- 可连续或循环用于温度高达 700°C 的烟气
- 请勿损坏或变形
- 安装和保护管使探头适用于高粉尘烟气，避免脏物质的磨损和粘附。

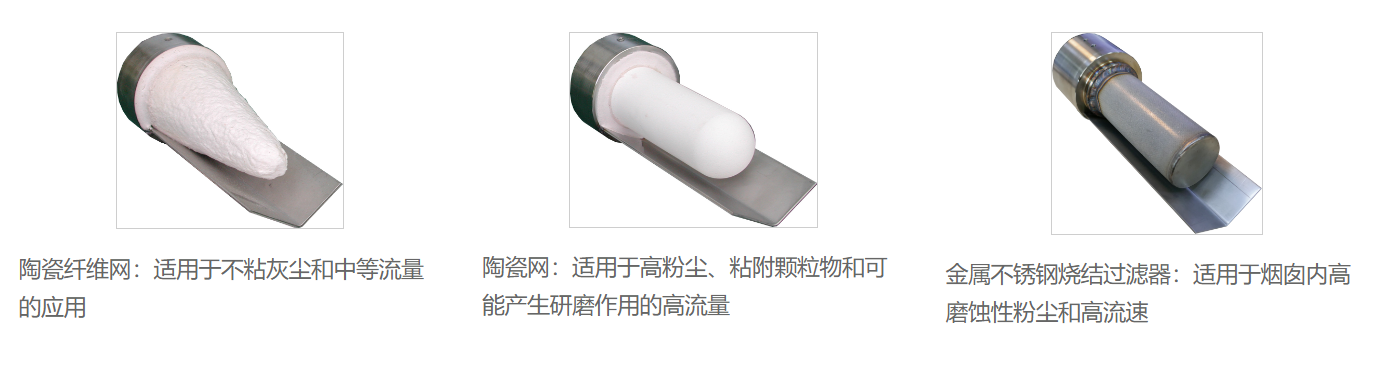

- 不同类型的过滤网和偏转板可阻止气流，以限制灰尘对传感器的影响：
无关键部件
- 避免了潜在的关键解决方案，例如内部焊接、关键耦合以及参考大气与测量大气的分离：
易于使用和维修
- 直接插入烟囱或管道
- 无需从过程中移除探头即可检查校准
- 所有零部件均易于接近且可现场维修。
无需将探头从安装座上拆下即可更换传感器组件。
欧洲合规性
- 低电压指令 2014/35/EU
- EMC 指令 2014/30/EU
规格
| Probe | |
|---|---|
| Accuracy | 0.1% O2 below 5% or 2% of reading above 5% |
| Repeatability | ± 1% of reading (short term) |
| Output Resolution | 0.01% O2 |
| Response Time | Sensor: 0.1 sec. ; Overall system < 5 sec. |
| Flue Gas Temperature | up to 700°C (on request up to 800°C) |
| Insertion Length | 300 / 450 / 1000 / 1500 / 2000 mm |
| Process Connection | Flange type |
| Ambient Temp. Influence | Probe: max ± 0.005% of reading per °C. External head: max. 0.06% of reading per °C |
| Atm. Pressure Influence | 1% of reading per 1% change in ambient pressure. |
| Probe Head Protection | IP65 |
| Head Temperature | -5°C…+55°C |
| Weight | Probe 300/450 mm: 9 Kg. ; Probe 1000 mm: 10 Kg.; Probe 1500 mm: 11 Kg. ; Probe 2000 mm: 13 Kg. |
| Wiring Connections | N°2 cable glands for cables max. 10 mm and inner terminal strip |
| Pneumatic Connections | Calibration inlet: 1/8” NPT-F |
| Measuring Principle | Zirconium Oxide (Zirconia). Micro-pod sensor technology with no need of reference air |
| Humidity | 0….90% non-condensing |
| Analog Output | 1 x 4-20 mA linear output proportional to range; max. load 500 Ω (or 350 Ω with galvanically insulated module) or logarithmic 50 mV/decade * |
| Ranges | 0-5 / 0-10 / 0-25% O2 (to select at order) |
| Diagnostic NV Logical Output (non-valid) | Logical Non Valid output from relay free contact. Normally supplied in fail safe condition (triggered relay and closed contact if not in alarm). Can be modified in filed |
| Power Supply | 117 VAC ± 10%, 50/60 Hz, 350 VA |
| *Output from probe when connected to a remote ADEV control unit | |
| Control Unit | |
| ADV222 specifications (common to all versions) | |
| Analog Inputs | 2 x isolated |
| Analog Outputs | 2 x isolated |
| Output Resolution | better than 1×10.000 of FS |
| Relays | N°2 relays SPDT, 230 VAC, nominal 2A (max 4A) ** |
| Power Supply | 8…28 VDC ; 9…24 VAC |
| Ranges | 0-25% O2 *** |
| Operative Temperature | -20°C…+70°C |
| Humidity | 0….90% non-condensing |
| Led | Power supply (blue) – Cumulative inputs overload (red) – TX/RX (yellow/amber) |
| Serial Interface | RS485 2-wire (Protocol ModBus-RTU) |
| Line Impedance | 120 ohm |
| Termination Type | External |
| Max Speed | 57600bps |
| Max No. of Nodes | 32 |
| Protection | IP20 |
| Weight | 900 gr. |
| Connections | Removable screw terminals pace 5,08 mm |
| Conductor Section | Max. 2,5 mmq |
| Mounting | DIN rail |
| ***Threshold to be selected at order (factory set) or settable in field by PC with ADEV Easy Configurator or by display if ADbox or ADcaseM are selected | |
| ****Default range factory set. Modifiable on request at order on customer specification or by PC with ADEV Easy Configurator | |
| Supplementary ADbox Specification | |
| Protection | IP55 |
| Weight | 8 Kg. |
| Dimensions | 400 x 300 x 150 mm |
| Display | LCD 2.42” OLED. Resolution0.01% |
| Cable Entrance (bottom) | N°4 cable glands PG 13 / 9 / 7 |
| Supplementary ADcaseM Specification | |
| Protection | IP55 |
| Weight | 10 Kg. |
| Dimensions | 400 x 300 x 150 mm |
| 500 x 400 x 250 mm (with transformer) | |
| Display | LCD 2.42” OLED. Resolution0.01% |
| Cable Entrance (bottom) | N°4 cable glands PG 13 / 9 / 7 |
| Pneumatic Connections | Calibration air inlets: 1/8” NPT-F |
| Configurations | ADcaseM-1: Pressure reducer and manual valve |
| ADcaseM-2: Pressure reducer and electro valve |
应用领域
使用任何类型燃料的工业锅炉：天然气、液化石油气、轻油、重油、柴油、煤炭、生物质
公用事业锅炉
回收锅炉
低温焚烧炉
发电厂
水泥窑
工业炉
烟气处于温度限制范围内（700°C 以内）的其他燃烧过程
测量原理
分析所依据的测量原理与氧化锆的使用有关，氧化锆在高温下可以表现得像固态电解质，在与不同 O 2浓度（分压）接触的两个电极上产生电动势，与以开尔文度 (°K) 为单位的温度以及两个压力 PO 2 ‘ 和 PO 2 ”之间的比率的对数（根据能斯特众所周知的比率）成正比：
E=RT/nF(Lg P0 2 ‘/P0 2 “)
其中： R = 完美气体常数（8.31 焦耳/度体积）
F = 法拉第常数
T = 绝对温度（°Kelvin）
n = 4
内部传感元件基于专有的 ADEV 技术（微荚），并具有固态参考，完全消除了参考气流的需要，使仪器在现场使用非常简单实用。
- 无参考空气
- 传感器位于尖端
- 无气体循环
