虽然我们多年来一直在生产自动压力校准器,但我们制定了新的公司标准,以提高客户对我们最新型号的满意度。我们在761A系列中的新选项在多量程选择、多个外部压力模块管理和压力速度改进方面提供了更大的灵活性。我们的每台Additel 761A自动压力校准器现在都可以方便地运输,并支持蓝牙、Wi-Fi和以太网。所有761A校准器的电池寿命现在是以前型号的两倍,因此您不必担心生产力的过早损失。无论您是在现场工作还是直接在工作台上工作,我们配备触摸屏的便携式压力校准器都能满足您的需求。立即购买我们的精选商品!
自动压力生成和控制至10000磅/平方英寸(700巴) 精确度达到0.01%FS 具有手动或自动选择模式的双档 设计用于水 控制稳定性≤0.005%FS 便携式-设计用于现场和实验室 支持两个外部压力模块 Wi-Fi、局域网、蓝牙、USB和以太网通信 全HART现场通讯器 HART和profibus通信 数据记录和任务管理 专利电动泵技术 ISO 17025认证校准,包括数据 |

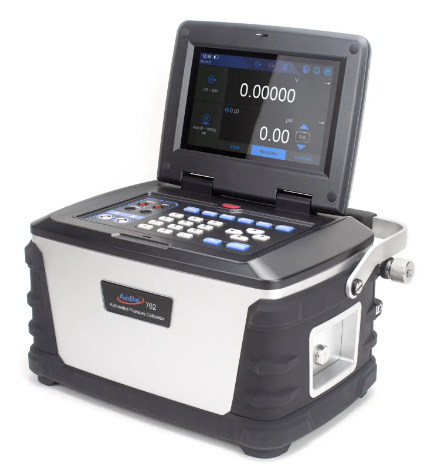

这款最先进的产品专为现场和实验室设计,其便携性和准确性将很快成为实验室人员和现场技术人员最喜欢的校准器。
凭借对压力变送器、开关、刻度盘和数字仪表及传感器(包括HART/PROFIBUS设备)校准的全自动支持,以及完全集成的任务功能、数据收集和Wi-Fi连接,我们在设计迄今为止功能最强大的压力校准器时,考虑到了客户的需求。
双量程精度至0.01%FS ADT762W具有独特的功能,可根据ADT762W的当前控制压力在不同的内部校准之间自动切换。Additel为每个ADT762W提供0-3000 PSI(200巴)和0-10000 PSI(700巴)范围内的唯一校准。当校准器加压时,它将根据特定的压力范围自动选择控制和测量规格。压力校准范围选择可以设置为“自动”模式,因此ADT762W根据设定点压力自动选择校准范围,也可以手动选择校准范围。 | |
内置自动清除应用程序 ADT762W设计有一个集成的自动净化系统,通过完全自动清除系统中的空气,可以节省时间、金钱和挫折感。只需按下一个按钮,ADT762W即可快速管理系统吹扫。这有助于为技术人员腾出时间来满足其他需求。 | |
带自动流体出口的双端口歧管 在使用液压系统时,我们知道油是比水更好的润滑剂,可以延长密封件和部件的寿命。但我们认识到,对于某些应用,使用石油不是一种选择。ADT762W设计为只能与去离子水一起使用。ADT762W具有内置的流体管理系统,可减少系统中的积水,从而满足未来的维护要求。ADT762W应与提供的歧管一起使用,该歧管具有直接与装置的通信连接。这种配置设计用于在每次排气后将装置中的残余水提取到歧管中。此功能有助于确保设备的最长使用寿命,并降低维护成本。 | |
文档化任务功能 强大的文档化校准任务应用程序允许用户在不需要PC或平板电脑的情况下快速创建和执行任务。ADT762W自动分析错误,生成测试报告,同时将结果存储在本地。Additel 762W可以支持多达1000个文档化任务,这些任务可以随时存储和调用,以帮助节省时间和金钱。 | |

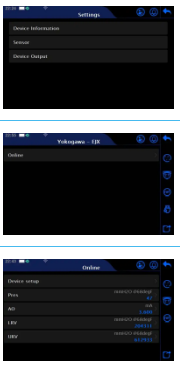

双模Hart通信 HART压力变送器可以直接维护和校准,无需任何其他设备或工具。ADT762W提供自动HART校准模式和手动模式。这种双模HART通信功能不仅为DUT提供了一种高效方便的互操作模式,而且支持访问完全支持HART的校准器。 |
Pressure Specifications | ||
---|---|---|
Pressure Range | 15-10,000 psi (1-700 Bar) | |
Range Selection | Manual 3K psi, Manual 10K psi or Auto-range | |
Accuracy | 0-10,000 psi, 0.01%FS | 0-10,000 psi, 0.02%FS |
0-3,000 psi, 0.01%FS | 0-3,000 psi, 0.02%FS | |
Resolution | 7 digits | 6 digits |
Maximum External Load Capacity | Max: 80 ml @ 700 Bar, 50 ml reccomended | |
Reservoir | Max: 350 ml, built-in filter | |
Control Stability [1] | ≤ 0.005% FS from 100 to 10,000 psi | |
Stability Duration | > 5 min | |
Pressure Modules | Built-in one module with dual range | |
External Control Pressure Module | See the following “External Control Pressure Module Specification and Compatibility” table | |
External Measurement Pressure Module | All ADT161 pressure modules | |
[1] Control Stability is based on the range of pressure control module |
Electrical Specifications | ||||
---|---|---|---|---|
Specification | Range | Resolution | Accuracy | Note |
mA Measure | -25 to 25 mA | 0.1 μA | ± (0.008 %RD + 1.0 μA) | Impedance < 10 Ω |
-50 to 50 mA | 0.1 μA | ± (0.008 %RD + 2.0 μA) | ||
V Measure | ±300 mV | 1 μV | ± (0.008 %RD + 6 μV) | Impedance > 1 GΩ |
V Measure (Auto-ranging) | -5 to 5 V | 20 μV | ± (0.008 %RD + 100 μV) | Impedance > 1 MΩ |
-12 to 12 V | 100 uV | ± (0.008 %RD + 320 μV) | ||
-30 to 30 V | 100 uV | ± *0.008 %RD + 600 μV) | ||
Loop Power Source | 24 V | N/A | ±1 V | 50 mA (Max Loading) |
mA Source | 0 to 2.5 mA | 0.05μA | 0.008 %RD + 0.2 μA | 20 mA @ 1 kΩ |
2.5 to 25 mA | 0.5μA | 0.008 %RD + 1.0 μA | ||
Power Source | 16 to 30 V | 1 V | ±1 V | 70 mA (Max Loading) |
V Source | 0 to 16 V | 0.25 mV | 0.008 %RD + 500 μV | |
Pressure Switch | Mechanical Switch, Live Mechanical Switch, NPN Switch, PNP Switch | N/A | N/A | Response time < 10 ms if the switch is powered. Voltage range: (3-30) V |
Temperature Compensation | 18°C to 28°C | |||
Temperature Coefficient | Outside of 18°C to 28°C: <±0.0005%RD+0.00005%FS/°C | |||
Misuse Protection | Up to 30 V on any two sockets | |||
Pressure Switch Test | Supported | |||
HART / Profibus PA | Supported |
External Control Pressure Module Specification and Compatibility | |||||
---|---|---|---|---|---|
Specification | Pressure Range | Accuracy | Pressure Type | Media | |
(psi) | (bar) | ||||
ADT161-01-GPXX for 0.01% FS | 1000 | 70 | 0.01% FS | Gauge | G,L |
1500 | 100 | 0.01% FS | Gauge | G,L | |
2000 | 140 | 0.01% FS | Gauge | G,L | |
3000 | 200 | 0.01% FS | Gauge | G,L | |
5000 | 350 | 0.01% FS | Gauge | G,L | |
10000 | 700 | 0.01% FS | Gauge | G,L | |
ADT161-02-GPXX for 0.02% FS | 1000 | 70 | 0.02% FS | Gauge | G,L |
1500 | 100 | 0.02% FS | Gauge | G,L | |
2000 | 140 | 0.02% FS | Gauge | G,L | |
3000 | 200 | 0.02% FS | Gauge | G,L | |
5000 | 350 | 0.02% FS | Gauge | G,L | |
10000 | 700 | 0.02% FS | Gauge | G,L | |
[1] For 0.01% FS pressure modules, single or multiple measurement range calibration certificate per request. For other specifications, please contact Additel for more details. |
General Specifications | ||
---|---|---|
Specification | Description | |
User Interface | Color touch screen and keypad operation | |
Display | 7” TFT touch screen 800 x 480 color | |
Enclosure IP Rating | IP31 | |
Power | Dedicated lithium battery or power adapter | |
Battery | Rechargeable Li-Ion battery, typically 12 hours of operation, less than 5 hours recharge. | |
Weight | 28 lbs (12.8 kg) without media | |
Size | 11.81 x 8.66 x 7.56 in (300 x 220 x 192 mm) | |
Communications | Wi-Fi, LAN, Bluetooth, USB, Ethernet | |
HART Communication | Read, configure and calibrate HART devices – DD files updated periodically | |
Data Storage | > 8 GB | |
Data Logging | Up to 1,000,000 readings (data and time stamped) | |
Task documentation | Up to 1,000 tasks can be stored with data | |
Automation Functions | Switch test, auto step, leak test | |
User Interface Localization | English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese, and Russian | |
Pump life | > 1,000,000 cycles | |
Environmental Specifications | Operating temperature: 32°F to 122°F( 0°C to 50°C) | |
Storage temperature: -20°C to 60°C ( -4°F to 120°F) | ||
Humidity: <90%, non-condensing | ||
Certification | ISO 17025 accredited certificate of calibration with NIST-traceable data | |
Compliance | CE | |
Software Compatibility | ACal, Additel Land and Additel Link for access via mobile application | |
Warranty | 1 year |
