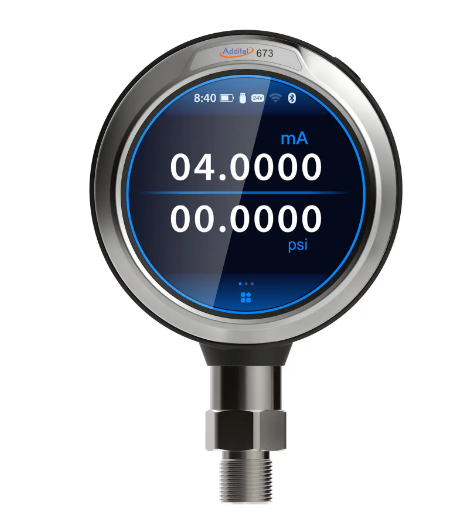

Additel 673高级数字压力校准器

Additel 673高级数字压力校准器

压力范围高达60000磅/平方英寸(4200巴)

0.02%、0.05%FS或0.1%RD精度

彩色触摸屏显示器

每个型号都测量表压或绝对压力

内置气压计

类似智能手机的直观界面

蓝牙和USB通信

Wi-Fi(可选)

测量mA或V,并使用24V回路电源

全HART现场通讯器(可选)

数据记录

与Additel的Link移动应用程序通信

ISO 17025认证校准,包括数据

Additel的673高级数字压力校准器将重新定义您想要测量和校准压力读数和设备的方式!凭借无线远程连接、微处理器技术、最先进的硅压力传感器和板载存储容量,这些具有吸引力且完全温度补偿的校准器将提供您所期望的真正Additel产品的性能、耐用性和可靠性。全新的现代菜单结构和控制界面为压力校准工作带来了全新的体验。这种与我们的压力校准器接口的全新方式使ADT673使用起来非常愉快。方便的Additel Link应用程序让用户能够通过个人设备或手机远程监控这些校准器。有很多选项可供选择,您可以配置这些压力校准器,以精确满足您的特定压力校准和测量需求。IP67等级,您会发现这些令人惊叹的压力校准器可以在现场或实验室中使用,以满足最苛刻的压力校准需求。

现代用户体验

Additel在使用这款革命性的新型校准器时,为我们的客户提供了尽可能好的体验。3.4英寸彩色触摸屏显示屏配有可更换钢化玻璃保护屏,是对传统按钮或泡罩垫界面的更新。凭借易于导航的菜单结构和快速的触摸屏响应,您会发现这些ADT673校准器使用起来简单而强大。这种易于阅读的显示器不仅使用起来很有趣,而且坚固耐用,可以满足现场或实验室繁忙技术人员的需求。

HART现场通讯器:

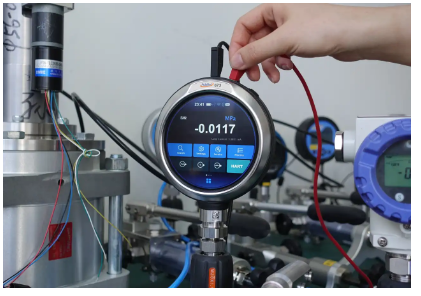

ADT673高级数字压力校准器完全支持HART通信协议,为宽压力范围内的变送器提供压力校准解决方案。ADT673是一款非常便携的设备,可以通过内置的压力传感器精确测量压力,并读取传感器产生的电流或mV。它甚至可以在校准期间向功率传感器或变送器提供激励电压(回路电源)。

Specifications
AccuracyADT673-02: 0.02% of full span
ADT673-05: 0.05% of full span
673-RD: 0% to 20% of Range: 0.02% of full span, 20% to 110% of Range: 0.1% of reading, Vacuum: 0.25% of full span[1][2]
Barometric Accuracy (built-in barometer)55Pa
Gauge TypesGauge pressure, compound pressure, absolute pressure, differential pressure
DisplayColor Touchscreen (capacitive)
Screen protector: tempered glass film (replaceable)
Display rate: 3 readings per second (Default setting). Adjustable from 10 readings per second to 1 reading every 20 seconds
Resolution: 4,5 or 6 digits (user selectable)
Pressure UnitsPa, kPa, MPa, psi, bar, mbar, kgf/cm2, inH2O@4°C mmH2O@4°C, inHg@0°C, mmHg@0°C and 5 customizable units
EnvironmentalCompensated Temperature: 14°F to 122°F (-10°C to 50°C)
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Humidity: 0 – 95%, Non-condensing
Pressure Port≤15,000 psi: 1/4NPT male, 1/2NPT male, 1/4BSP male, 1/2BSP male, M20×1.5 male
>15,000 psi: 1/4HP female or 1/4HP male, *1/4HP female: Autoclave F-250-C, 9/16″ – 18 UNF-2B, *1/4HP male: Autoclave M-250-C, 9/16″ – 18 UNF-2A
Differential Pressure: Barb fitting
Other connections available per request
Over Pressure Warning1.2
PowerBattery: Rechargeable Li-ion battery
Li-Battery life: 16 hours typical
Recharge time: 4 hours typical
External power: 110V/220V power adapter (5 VDC)
EnclosureCase material: 304 SS
Wetted parts: 316 SS [3]
Dimensions: 4.65″ (118mm) width X 1.77″ (42mm) depth 6.89″ (175mm) height
Weight: 1.58 lbs. (0.715 kg)
Protection Level: IP67
Electrical Measurement Accuracy (23 ± 15°C)Voltage DC: ±30.0000 V, ± (0.01%RD + 1.5 mV)
Current DC: ±30.0000 mA, ± (0.01%RD + 1.5 μA)
DC 24 V: 24 V ± 1 V, MAX:30 mA
Switch[4] : Status OPEN/CLOSED, support for mechanical switches and NPN/PNP digital switches
Data LoggingData storage: 8GB (100M+ records)
Mode: manual and automatic
Interval-record: user selectable from 0.1 to 9999.9 second intervals
ComplianceProtection Level: IP67
Vibration: 5 g (10-500 Hz)
Shock Resistance: 8 g/11 ms
CE
CommunicationUSB Type-C and Bluetooth included, RS232 or Wi-Fi (optional)
Warranty1 year
[1] Wetted parts material types may vary by pressure range.  Please refer to the manual or contact Additel for more information.
[2] Trigger voltage 2.7V.
[3] Available units are dependant on the overall pressure range.
[4] Temperature coefficient: (5ppm of RD + 5ppm of FS)/°C from -10°C to 8°C and 38°C to 50°C.
Gauge Pressure [1]
P/NPressure RangeMedia [2]AccuracyBurst Pressure
(psi)(bar)%FS%RD
V15-15-1G0.02 (0.05)N/A
GP220.16G, L0.05N/A
GP550.35G, L0.050.1
GP10100.7G, L[3]0.02 (0.05)0.1
GP15151G, L[3]0.02 (0.05)0.1
GP30302G, L[3]0.02 (0.05)0.1
GP50503.5G, L0.02 (0.05)0.1
GP1001007G, L0.02 (0.05)0.1
GP15015010G, L0.02 (0.05)0.1
GP30030020G, L0.02 (0.05)0.1
GP50050035G, L0.02 (0.05)0.1
GP60060040G, L0.02 (0.05)0.1
GP1K100070G, L0.02 (0.05)0.1
GP1.5K1500100G, L0.02 (0.05)0.1
GP2K2000140G, L0.02 (0.05)0.1
GP3K3000200G, L0.02 (0.05)0.1
GP5K5000350G, L0.02 (0.05)0.1
GP10K10000700G, L0.02 (0.05)0.11.5×
GP15K150001000G, L0.05 (0.1)0.11.5×
GP20K200001400G, L0.05 (0.1)N/A1.5×
GP25K250001600G, L0.05 (0.1)N/A1.5×
GP30K300002000G, L0.05 (0.1)N/A1.5×
GP36K360002500G, L0.05 (0.1)N/A1.5×
GP40K400002800G, L0.05 (0.1)N/A1.35×
GP50K500003500G, L0.1 (0.2)N/A1.2×
GP60K600004200G, L0.1 (0.2)N/A1.1×
[1] Sealed gauge pressure for above 1,000 psi
[2] G=Gas, L=Liquid
[3] 0.02% FS for gas media only
Compound Pressure
P/NPressure RangeMediaAccuracyBurst Pressure
(psi)(bar)%FS[1]%RD
CP2±2±0.16G0.05N/A
CP5±5±0.35G0.02 (0.05)0.1
CP10±10±0.7G0.02 (0.05)0.1
CP15±15±1G0.02 (0.05)0.1
CP30-15 to 30-1 to 2G0.02 (0.05)0.1
CP100-15 to 100-1 to 7G, L0.02 (0.05)0.1
CP300-15 to 300-1 to 20G, L0.02 (0.05)0.1
CP500-15 to 500-1 to 35G, L0.02 (0.05)N/A
CP600-15 to 600-1 to 40G, L0.02 (0.05)N/A
CP1K-15 to 1000-1 to 70G, L0.02 (0.05)N/A
[1] FS specification applies to the span of the range
Absolute Pressure
P/NPressure Range MediaAccuracy(%FS)Burst Pressure
(psi)(bar)
AP550.35G , L0.1
AP10100.7G , L0.1
AP15151G , L0.1
AP30302G , L0.1
AP50503.5G , L0.1
AP1001007G , L0.05 (0.1)
AP30030020G , L0.05 (0.1)
AP50050035G , L0.05 (0.1)
AP1K100070G , L0.05 (0.1)
AP3K3000200G , L0.05 (0.1)
AP5K5000350G , L0.05 (0.1)
Differential Pressure
P/NPressurRangeMediaAccuracy (%FS)[1]Burst PressureStatic Pressure Range
(inH2O)(mbar)
DP1±1±2.5G0.05[2]100×±10 psi
DP2±2±5.0G0.05[2]100×±10 psi
DP5±5±10G0.05[2]50×±10 psi
DP10±10±25G0.05[2]20×±10 psi
DP20±20±50G0.0520×±10 psi
DP30±30±75G0.0520×±10 psi
DP50±50±125G0.05±10 psi
DP100±100±250G0.02±15 psi
DP150±150±350G0.0250 psi
DP300±300±700G0.0250 psi
[1] FS specification applies to the span of the range. Accuracy includes one year stability.
[2] 0.05%FS accuracy (incl 6 months stability). One year accuracy is 0.05%FS calibration accuracy combined with 0.05%FS one year stability.
Barometric Pressure
P/NPressure RangeMediaAccuracyBurst Pressure
LowHigh
BP60 kPa110 kPaG40 Pa
Communication Types Supported
Communication TypeADT685ADT685ExADT686ADT673
RS232
RS485
Wifi
USB
Bluetooth (BLE)
● Included ○ Optional
Additel Software Compatability Matrix
Communication TypeADT685/ADT685ExADT686/ADT673
ACalLogIILandLinkACalLogIILandLink
RS232
RS485 only for ADT685◐ [2]◐ [2]◐ [2]
Wifi● [1]
USB
Bluetooth (BLE)
● Supported
[1] This configuration requires that the device be connected to ACloud via Wi-Fi to utilize the Additel Link app.
[2] 4-20mA output and RS-485 not available in ADT685Ex models.
