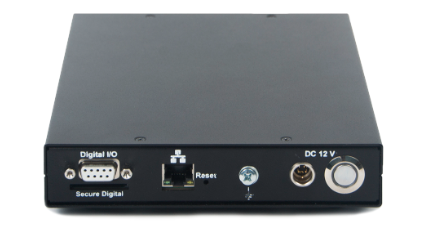

FFT频谱分析仪ZET 032
- 2个输入通道；
- 集成功率放大器；
- 支持ICP（IEPE）、DeltaTron、ISOTRON传感器、电荷传感器和电压输出传感器；
- 紧凑产品版本
FFT频谱分析仪ZET 032的规格
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| INPUT SPECIFICATIONS | |||
| Number of channels | 2 | ||
| Input type | by voltage ICP by charge | ||
| Input voltage range at the minimal amplification ratio | ±10 mV | ||
| Programmable amplification ratios | 1, 10, 100 | ||
| Frequency ranges of the simultaneously analyzed signals | DC…20, DC…200, DC…2 000, DC…20 000 Hz | ||
| Anti-aliasing filtration of signals | up to 40 kHz | ||
| LPF filters are implemented as digital Butterworth filters 120 dB/oct for the following sampling frequencies: | 50 Hz, 500 Hz, 5 kHz, 50 kHz | ||
| Digital filters with frequency adjustment in compliance with the provisions of IEC 61672-1:2002 | А, В, С, D for the 1-st class precision noise meters | ||
| INPUT SPECIFICATIONS IN THE “CHARGE” MODE | |||
| Amplification ratio by charge | 1 mV/pC; 10 mV/pC; 100mV/pC | ||
| Maximal input charge (peak value) at the amplification ratio “1”, min. | 104 pC | ||
| Operating frequency range at the limits of -3dB at the non-linear distortion ratio below 10%: | 0,1… 20 000 Hz | ||
| RMS noise value applied to the input in the “Charge” mode for the capacity of the transducer of 1 nanofarad in the frequency range of 0.1 Hz … 20 kHz (at the amplification ratio of 1 mV/pC), max. | 0,05 pC | ||
| OUTPUT SPECIFICATIONS | |||
| Analog outputs number | 1 | ||
| Output voltage range at the minimal amplification ratio | ±10 mV | ||
| Frequency range of the generated signal | 0,03… 20 000 Hz | ||
| Output resistance | 50 Ohm | ||
| Maximal output current | 20 mA | ||
| DIGITAL INPUT/OUTPUT | |||
| Digital input | 8 bit | ||
| Digital output | 8 bit | ||
| Digital input/output logic type | TTL | ||
| METROLOGICAL SPECIFICATIONS | |||
| INPUT | |||
| Dynamic range | 110 dB | ||
| Channels non-identity in the passband | 0,1 % | ||
| Cross-channel phase difference | 1° per 10 kHz | ||
| Intrinsic noise level applied to the input at the entire pass-band and at the maximal possible amplification ratio, max. | 1 µV | ||
| OUTPUT | |||
| Admissible error limits for the frequency value in the range of 10…20 000 Hz | ±0,1 % | ||
| Admissible error limits for the frequency value in the range of 0,03…10 Hz | ±10 % | ||
| Admissible error limits for output DC and AC voltage | ± (0,005U + 10) mV | ||
| Harmonic ratio of the generated sinusoidal signal | 0,1 % | ||
| OPERATIONAL SPECIFICATIONS | |||
| Dimensions | 160 × 130 × 35 mm | ||
| Weight | 0,6 kg | ||
| Consumed power | max 6 W | ||
| Types of supported transducers | ICP (IEPE), DeltaTron, ISOTRON | ||
| Possibility of synchronization with other FFT Spectrum analyzers | yes | ||
| Non-volatile memory volume (flash-drive)* | up to 32 Gb | ||
| Sampling frequency of the data recording to the flash drive by a channel * | 50 kHz | ||
| Duration of data recording to the flash-drive by all the channels at maximal sampling frequency* | 43,2 hrs | ||
| Data rate via Ethernet | 100 Mbps | ||
FFT频谱分析仪ZET 032描述
ZET-032多功能FFT频谱分析仪旨在测量声学和振动声学信号的频谱成分参数，并生成具有规范计量特性的电信号。
FFT频谱分析仪ZET 032可以独立使用，也可以在自动化系统和技术过程控制系统框架内用于科学研究目的。ZET 032系列模型的工作原理基于并行（同时）分析信号谱。这些仪器体积紧凑，可以在紧凑的实验室环境中使用，也可以作为便携式测量仪器使用。
当与ZETLAB ANALIZ软件一起使用时，FFT频谱分析仪可以解决以下任务：
实时模式下的信号分析，以及先前记录信号的分析；
- 基于并行数字滤波器的八度和1/3八度分析；
- 窄带频谱分析；
- 交流和直流电压测量；
- 电信号频率测量；
- 正弦信号和直流信号的生成；
- 信号录制（将已注册信号的数字化值保存到设备的集成存储器中）
测量结果的信息以用户友好的格式显示在外部仪器上。
集成的电荷放大器允许连接各种测量传感器，因此可以实现各种附加功能，而无需使用额外的仪器。
FFT频谱分析仪ZET 032的基本配置

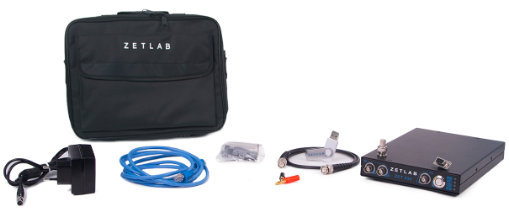

ZET 032 FFT频谱分析仪的基本交付范围包括以下物品：
- 数据采集控制器 ZET 032；
- 电源模块 220V →12V；
- 以太网电缆；
- BNC-BNC电缆（长度：0.6米）；
- 50欧姆插头；
- DB 9连接器；
- 一套操作文档；
- 用于运输的箱子
