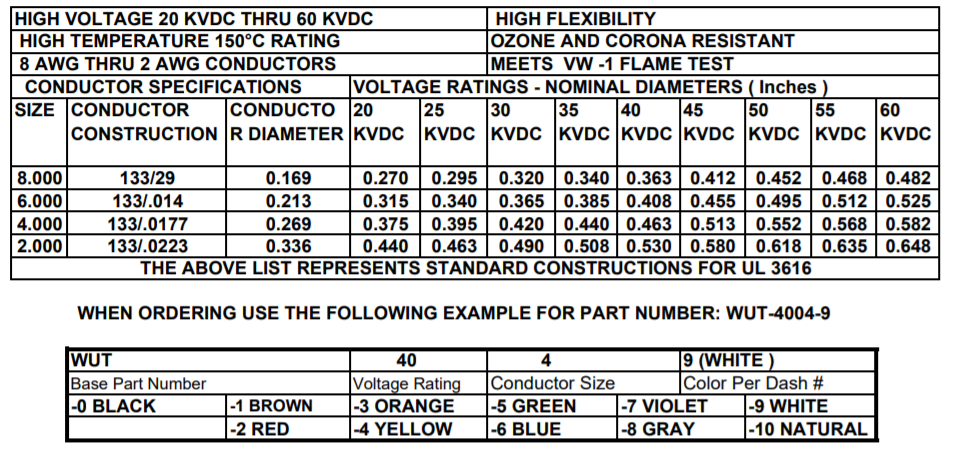

突出特点：
- 高压20 KVDC至60 KVDC
- 灵活性高
- 8 AWG至2 AWG导线
- 耐臭氧和电晕
- 符合VW-1火焰测试
应用：
- 加热器
- 熔炉
- Ovens
- 干燥器
- 电动机
- 发电机
- 要求高电压和高电流的电子设备
- 电晕处理设备
| WUT-2008-0 |  | Black 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | Black | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2008-1 | | Brown 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | Brown | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2008-2 | | Red 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | Red | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2008-3 | | Orange 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | Orange | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2008-4 | | Yellow 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | Yellow | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2008-5 | | Green 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | Green | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2008-6 | | Blue 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | Blue | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2008-7 | | Violet 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | Violet | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2008-8 | | Gray 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | Gray | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2008-9 | | White 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | White | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2008-10 | | Natural 0.169 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/29 | | Natural | | 8 | | 0.169 in | | 0.270 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-0 | | Black 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | Black | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-1 | | Brown 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | Brown | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-2 | | Red 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | Red | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-3 | | Orange 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | Orange | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-4 | | Yellow 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | Yellow | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-5 | | Green 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | Green | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-6 | | Blue 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | Blue | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-7 | | Violet 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | Violet | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-8 | | Gray 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | Gray | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-9 | | White 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | White | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2006-10 | | Natural 0.213 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.014 | | Natural | | 6 | | 0.213 in | | 0.315 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2004-0 | | Black 0.269 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.0177 | | Black | | 4 | | 0.269 in | | 0.375 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2004-1 | | Brown 0.269 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.0177 | | Brown | | 4 | | 0.269 in | | 0.375 in | | E174208 | | Wiremax | | 150 ºC | | |
| ||||||||||||||||||||||
| WUT-2004-2 | | Red 0.269 Inch (in) Conductor Diameter Underwriters Laboratories (UL) 3616 Wire | | 20 kV | | 133/0.0177 | | Red | | 4 | | 0.269 in | | 0.375 in | | E174208 | | Wiremax | | 150 ºC | ||
