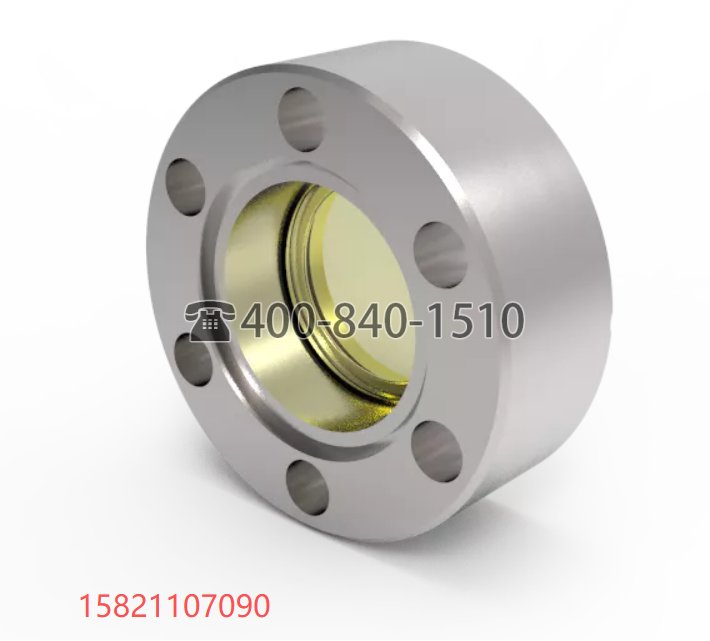

德国 VACOM VPCF16ZNSE-K 超高压扩展范围观察窗，光学红外视窗
咨询热线 1582110709
| Category | UHV extended range viewport, optical, IR |
|---|---|
| Max. bakeout temperature | 120 °C |
| Maximum heating rate | 3 K/min |
| Article no. | 303139 |
| Connection type | CF |
| Nominal diameter | 16 |
| Leakrate | < 1E-10 mbar ∙ l/s |
| Min. operating temperature | -45 °C |
| Max. operating temperature | 120 °C |
| Outer diameter | 34 mm |
| Length | 12,7 mm |
| Window mounting | UHV-suitably bonded |
| Window thickness | 1,5 mm |
| Surface quality | 60/40 (scratch/dig) |
| Window material | Zinc selenide |
| Transmission range | appr. 600 – 15000 nm |
| View diameter | 15 mm |
