Taylor涡流底盘测功机

Taylor的经济型风冷涡流底盘Dynos可以节省成本,因为它们不需要水循环系统,是中型或重型单轴或双轴卡车和公共汽车的快速功率检查和其他短期测试的绝佳选择。适用于单轴或双轴车辆的托架式或单辊(顶部安装)测功机,车辆连续功率范围为50马力至622马力(37千瓦至464千瓦),Taylor的底盘测功机在满载时允许90英里/小时(145公里/小时)的最高推荐速度。我们的专家不仅可以帮助您选择最佳系统,还可以为与您的操作无缝集成的整体解决方案提供设计、配置、安装和培训。

CM-51-EC Eddy Current Chassis Dynamometer

Specifications
Weight Capacity: 25,000 lb (11,340 kg) per axle
Roll Brakes: pneumatically-actuated disc
Shipping Weight: 8,340 lb (3,783 kg)
Capacity: 622 hp at 45 mph (464 kW at 72 kph)
Rolls: 20 by 36 in. (508 by 915 mm) long
4 front fixed rolls, 2 rear rolls fixed to
accommodate axle spreads from
48 to 60 in. (1,219 to 1,524 mm)
tandem centers
Pit Required Depth: 25 in. (635 mm)

CM-51S-EC Eddy Current Chassis Dynamometer

Specifications
Weight Capacity: 25,000 lb (11,340 kg) per axle
Roll Brakes: pneumatically-actuated disc
Shipping Weight: 5,100 lb (2,312 kg)
Capacity: 311 hp at 45 mph (232 kW at 72 kph)
Rolls: 20 by 36 in. (508 by 915 mm) long, 4 fixed
Pit Required Depth: 25 in. (635 mm)

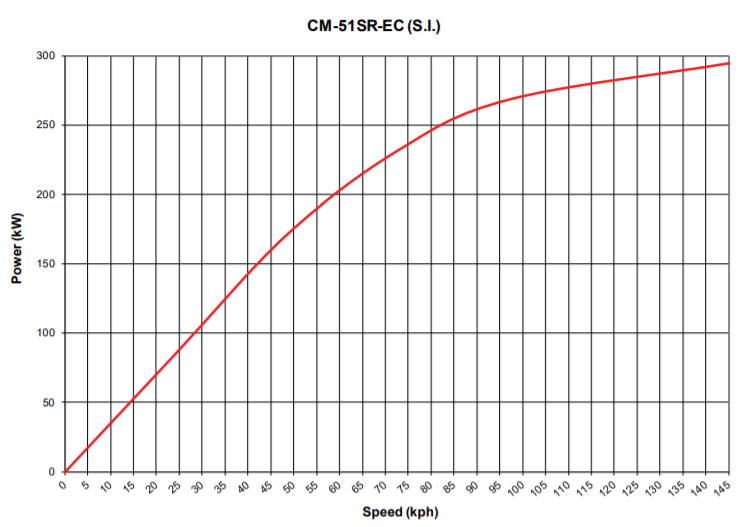

CM-51SR-EC Eddy Current Chassis Dynamometer

Specifications
Weight Capacity: 25,000 lb (11,340 kg) per axle
Roll Brakes: pneumatically-actuated disc
Shipping Weight: 5,100 lb (2,312 kg)
Capacity: 311 hp at 45 mph (232 kW at 72 kph)
Rolls: 20 by 36 in. (508 by 915 mm) long, 2 fixed
Pit Required Depth: 25 in. (635 mm)
