Taylor测功机的经济高效的便携式发动机Dynos是一种水制动式系统，适用于高达1250马力（932千瓦）和3000 ft-lb（4068 N）扭矩的柴油应用。在几分钟内将您的产品安装在发动机上，实现快速、方便和可靠的测试。不需要特殊的发动机支架或测试单元，您可以在室内或室外进行测试，即使发动机在运输箱中也是如此。入门级机械师可以轻松地进行初始磨合运行、全功率运行和调速器检查。

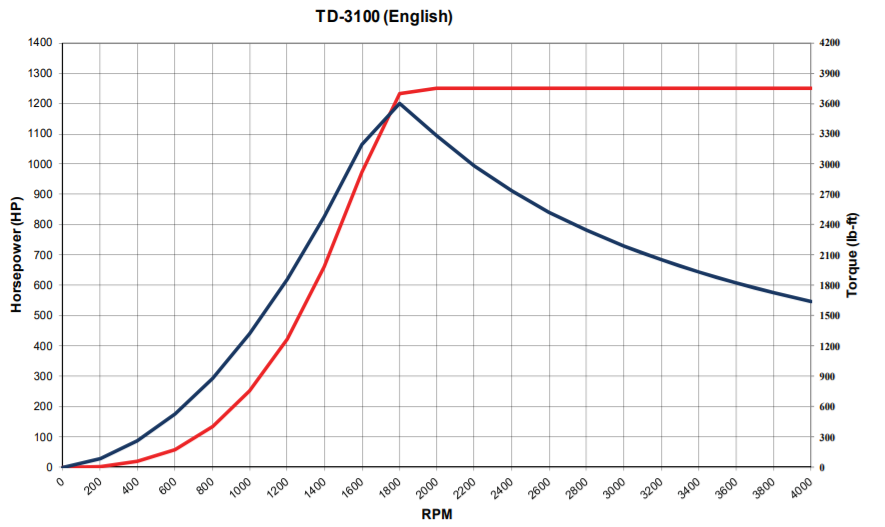

TD-3100 Portable Engine Dynamometer

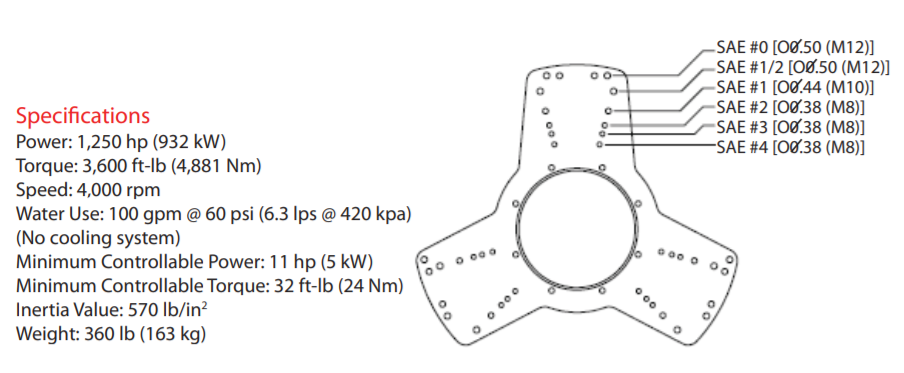

Specifi cations
Power: 1,250 hp (932 kW)
Torque: 3,600 ft-lb (4,881 Nm)
Speed: 4,000 rpm
Water Use: 100 gpm @ 60 psi (6.3 lps @ 420 kpa) (No cooling system)
Minimum Controllable Power: 11 hp (5 kW)
Minimum Controllable Torque: 32 ft-lb (24 Nm)
Inertia Value: 570 lb/in2
Weight: 360 lb (163 kg)

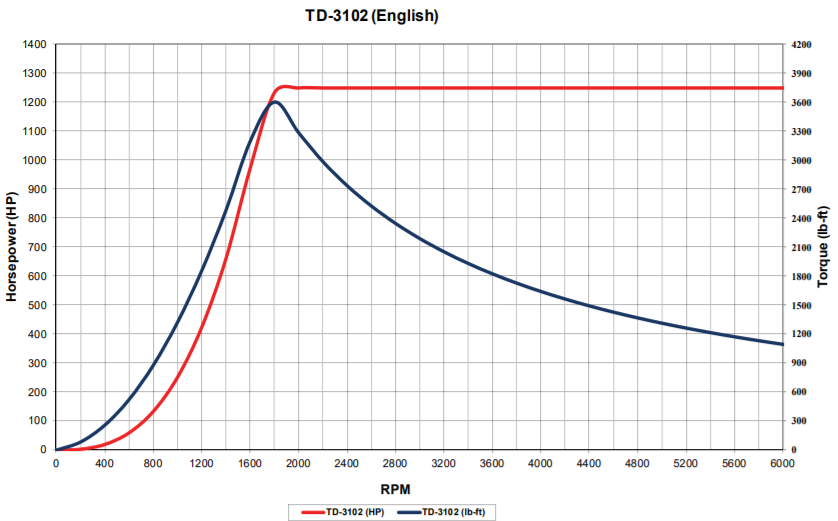

TD-3102 Portable Engine Dynamometer
Specifi cations
Power: 1,250 hp (932 kW)
Torque: 3,600 ft-lb (4,881 Nm)
Speed: 6,000 rpm
Water Use: 100 gpm @ 60 psi (6.3 lps @ 420 kpa) (No cooling system)
Minimum Controllable Power: 11 hp (5 kW)
Minimum Controllable Torque: 32 ft-lb (24 Nm)
Inertia Value: 570 lb/in2
Weight: 360 lb (163 kg)
