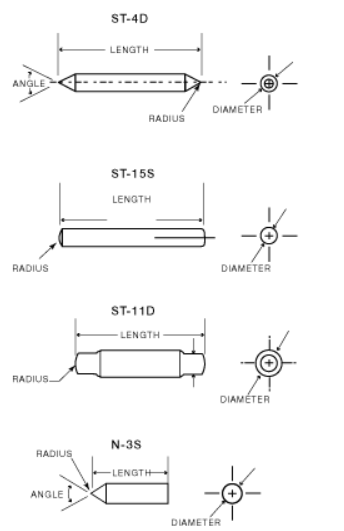

所用精密枢轴的形状和类型取决于系统的操作条件、宝石轴承类型以及悬挂运动元件所涉及的其他设计因素。圆柱形精密枢轴可采用任何环形宝石设计及其组合来支撑。对于末端推力，可通过在枢轴上设置肩部使其与环形宝石轴承的抛光面接触来承受，或使用端石轴承来承接带圆头精密枢轴的轴向力。

ModelDiameterLengthRadiusAngleMaterialType
N-1D.0156/.0160485/.495″.00098/.0012″50°NivapointDouble End Pivot
N-2S.0227/.0230″.065/.085″.00075/.00080″47°NivapointSingle End Pivot
N-3S.0195/.0205″.123/.127″.0008/.0012″45/55°NivapointSingle End Pivot
N-5AS.0195/.0197″.120/.130″.0016/.0020″40°NivapointSingle End Pivot
N-6S.0197/.0200″.120/.130″.0009/.0011″53/57°NivapointSingle End Pivot
N-8S.0320/.0325″.118/.124″.001/.002″50°NivapointSingle End Pivot
N-9S.0405/.0407″.190/.210″.003/.004″48/52°NivapointSingle End Pivot
ST-10S.0453/.0457 Major – 0260/.0262 Minor.7187″.015/.025″N/AStainless SteelSingle End Pivot
ST-11D.0308/.0311″.310/.330″.016/.025″.015/.025″Stainless SteelDouble End Pivot
ST-12S.0260/.0262″.220/.226″.015/.025″N/AStainless SteelSingle End Pivot
ST-13S.1242/.1247″.370/.385″.016/.025″.015/.025″Stainless SteelSingle End Pivot
ST-15S.0497/.0498″.372/.378″.065/085″N/AStainless SteelSingle End Pivot
ST-1D.0397/.0403″.155/.165″.00069/.00089″70°Stainless SteelDouble End Pivot
ST-2D.0397/.0403″.365/.375″.00069/.00089″50°Stainless SteelDouble End Pivot
ST-3D.0397/.0403″.646/.666″.00069/.00089″50°Stainless SteelDouble End Pivot
ST-4D.0657/.0660″.661/.681″.0010/.0012″60°Stainless SteelDouble End Pivot
ST-6S.027/.033″.122/.127″.002/.003″45/55°Stainless SteelSingle End Pivot
ST-7D.0496/.0501″.395/.405″.002/.004″52/54°Stainless SteelDouble End Pivot
ST-8D.0657/.0660″.661/.681″.00275/.00325″50°Stainless SteelDouble End Pivot
ST-9S.085/.090 Major – .055/.065 Minor.245/.255″.008/.012″40/45°Stainless SteelSingle End Pivot
