美国 sterlitech 1232558 Spacer Assortment Pack for Sepa

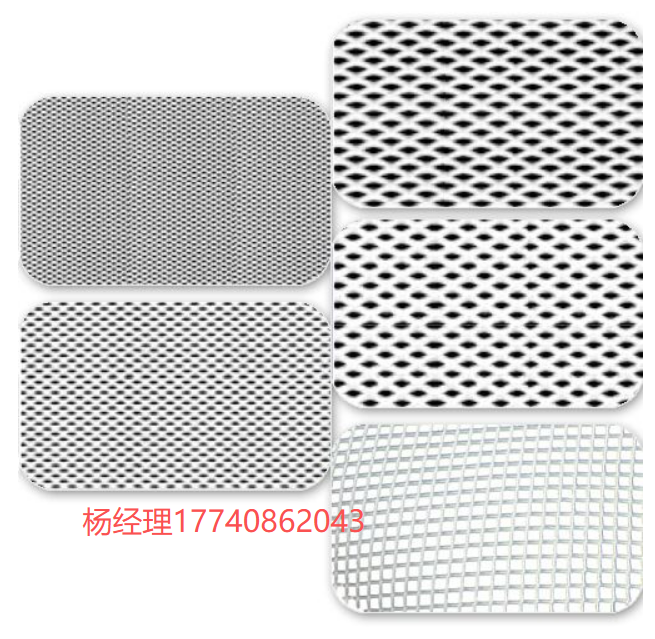

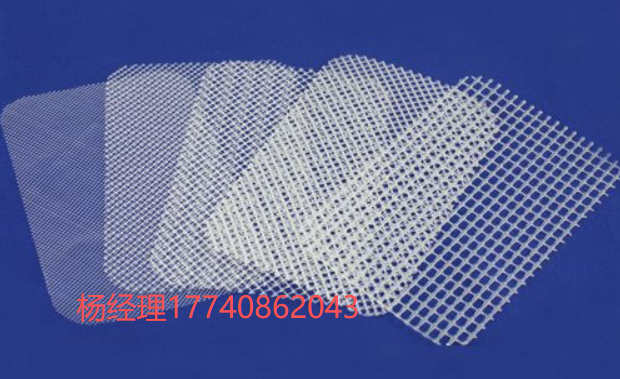

PP: Includes 1ea (17,31,47 and 65 mil Diamond, 47 mil Parallel), 5/pk
Sepa CF 系列供液间隔片包（145×97 mm），包括 17、31、47 和 65 mil 菱形间隔片，以及 47 mil 平行间隔片，每包 5 片。
用于 SEPA CF 系统中，以模拟螺旋卷膜中的间隔片。
Specifications
| CF016 | CF042 | Sepa | |
|---|---|---|---|
| Active Membrane Area | 20.6 cm2 (3.2 in2) | 42 cm2 (6.5 in2) | 140 cm2 (22 in2) |
| Hold-Up Vol. | 13 mL (0.44 oz) | 17 mL (0.57 oz) | 70 mL (2.4 oz) |
| Connections | Feed:1/4 in FNPT (base of cell) Concentrate1/4 in FNPT (base of cell) Filtrate:1/8 in FNPT (top of cell) | Feed:1/4 in FNPT (base of cell) Concentrate1/4 in FNPT (base of cell) Filtrate:1/8 in FNPT (top of cell) | Feed:1/4 in FNPT (base of cell) Concentrate1/4 in FNPT (base of cell) Filtrate:1/8 in FNPT (top of cell) |
| Outer Dimensions | 12.7 x 10 x 8.3 cm (5 x 4 x 3.25 in) | 12.7 x 10 x 8.3 cm (5 x 4 x 3.25 in) | 16.51 x 21.3 x 5 cm (6.5 x 8.38 x 2.07 in) |
| Active Area Dimensions | 4.52 x 4.52 cm (1.78 x 1.78 in) | 9.207 x 4.572 cm (3.625 x 1.8 in) | 9.7 x 14.7 cm (3.81 x 5.78 in) |
| Slot Depth | 0.23 cm (0.09 in) | 0.23 cm (0.09 in) | 0.19 cm (0.075 in) |
| Slot Width | 39 mm (1.54 in) | 39 mm (1.54 in) | 95.3 mm (3.75 in) |
