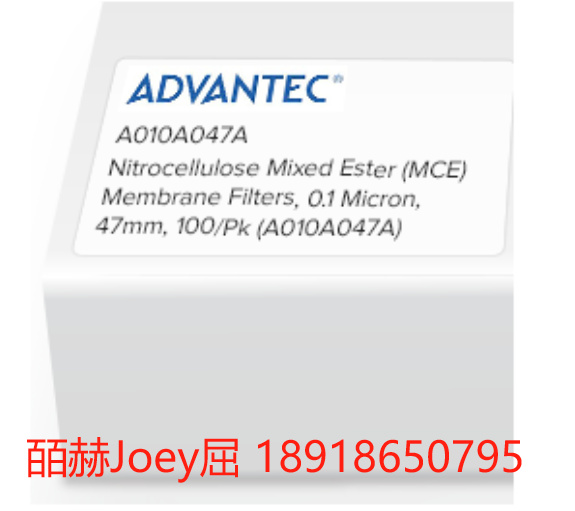

Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.1 Micron, 47mm, 100/Pk
用于医学检测 人绒毛膜促性腺激素（HCG)检测
医学检测
检测方法
固定
| USP Class VI Testing | Passed |
| BSA Protein Binding | ~160 μg/cm2 |
| Extractables | <4% |
| Max. Operating Temp | 130 °C (266 °F) |
| Sealing Compatibility | Ultrasonic, Heat, Radio Frequency, and Insert Molding |
| Nominal Thickness | 150 µm |
Performance by Pore Size
| Air Flow Rate1 | Water Flow Rate2 | Bubble Point (psi)3 | |
| 0.10 µm | 0.67 | 2.7 | 35.3 |
| 0.20 µm | 2.4 | 17.5 | 54.5 |
| 0.45 µm | 5.0 | 45.0 | 35.0 |
| 0.65 µm | 11.2 | 120.0 | 21.3 |
| 0.80 µm | 15.0 | 165.0 | 16.4 |
| 1.00 µm | 20.4 | 220.0 | 13.9 |
| 3.00 µm | 28.3 | 300.0 | 10.2 |
| 5.00 µm | 40.9 | 400.0 | 8.5 |
| 8.00 µm | 65.0 | NA | 4.0 |
*Notes:
1. Airflow measured as L/min·cm² at 10psi differential pressure
2. Water flow measured as mL/min·cm² at 10psi differential pressure
3. Bubble point for 0.1µm pore size measured using 100% IPA. All others measured using purified water.
| 货号 | Product Name | Pack Size |
| A010A013A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.1 Micron, 13mm, 100/Pk | 100 |
| A010A025A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.1 Micron, 25mm, 100/Pk | 100 |
| A010A047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.1 Micron, 47mm, 100/Pk | 100 |
| A010A090C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.1 Micron, 90mm, 25/pk | 25 |
| A010A142C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.1 Micron, 142mm, 25/pk | 25 |
| A010A293C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.1 Micron, 293mm, 25/pk | 25 |
| A010A330R | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.1 Micron, 300 x 3000mm, 1/Pk | 1 |
| A020A013A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.2 Micron, 13mm, 100/Pk | 100 |
| A020A025A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.2 Micron, 25mm, 100/Pk | 100 |
| A020A047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.2 Micron, 47mm, 100/Pk | 100 |
| A020A090C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.2 Micron, 90mm, 25/pk | 25 |
| A020A142C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.2 Micron, 142mm, 25/pk | 25 |
| A020A293C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.2 Micron, 293mm, 25/pk | 25 |
| A020A330R | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.2 Micron, 330 x 3000mm, 1/Pk | 1 |
| A045A013A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.45 Micron, 13mm, 100/Pk | 100 |
| A045A025A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.45 Micron, 25mm, 100/Pk | 100 |
| A045A037A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.45 Micron, 37mm, 100/Pk | 100 |
| A045A047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.45 Micron, 47mm, 100/Pk | 100 |
| A045A090C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.45 Micron, 90mm, 25/Pk | 25 |
| A045A142C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.45 Micron, 142mm, 25/Pk | 25 |
| A045A293C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.45 Micron, 293mm, 25/Pk | 25 |
| A045B047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, (no pad), gridded, 0.45 Micron, 47mm, 100/Pk | 100 |
| A045J047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.45 Micron, 47mm, Plain with Hydrophobic Edge, w/o Pad, 100/Pk | 100 |
| A045N013A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, Black, 0.45 Micron, 13mm, 100/Pk | 100 |
| A045N025A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, Black, 0.45 Micron, 25mm, 100/Pk | 100 |
| A045N047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, Black, 0.45 Micron, 47mm, 100/Pk | 100 |
| A045U047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, (no pad), green, 0.45 Micron, 47mm, 100/Pk | 100 |
| A065A013A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.65 Micron, 13mm, 100/Pk | 100 |
| A065A025A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.65 Micron, 25mm, 100/Pk | 100 |
| A065A047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.65 Micron, 47mm, 100/Pk | 100 |
| A065A090C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.65 Micron, 90mm, 25/Pk | 25 |
| A065A142C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.65 Micron, 142mm, 25/Pk | 25 |
| A065A293C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.65 Micron, 293mm, 25/Pk | 25 |
| A080A013A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.8 Micron, 13mm, 100/Pk | 100 |
| A080A025A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.8 Micron, 25mm, 100/Pk | 100 |
| A080A037A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.8 Micron, 37mm, 100/Pk | 100 |
| A080A047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.8 Micron, 47mm, 100/Pk | 100 |
| A080A090C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.8 Micron, 90mm, 25/Pk | 25 |
| A080A142C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.8 Micron, 142mm, 25/Pk | 25 |
| A080A293C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.8 Micron, 293mm, 25/Pk | 25 |
| A080B025A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 0.8 Micron 25mm, Gridded, 100/Pk | 100 |
| A080B047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, Gridded, 0.8 Micron, 47mm, 100/Pk | 100 |
| A100A013A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 1.0 Micron, 13mm, 100/Pk | 100 |
| A100A025A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 1.0 Micron, 25mm, 100/Pk | 100 |
| A100A047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 1.0 Micron, 47mm, 100/Pk | 100 |
| A100A090C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 1.0 Micron, 90mm, 25/Pk | 25 |
| A100A142C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 1.0 Micron, 142mm, 25/Pk | 25 |
| A100A293C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 1.0 Micron, 293mm, 25/Pk | 25 |
| A300A013A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 3.0 Micron, 13mm, 100/Pk | 100 |
| A300A025A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 3.0 Micron, 25mm, 100/Pk | 100 |
| A300A037A | Nitrocellulose Mixed Esters (MCE) Membrane Filters, 3.0 Micron, 37mm, 100/Pk | 100 |
| A300A047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 3.0 Micron, 47mm, 100/Pk | 100 |
| A300A090C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 3.0 Micron, 90mm, 25/Pk | 25 |
| A300A142C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 3.0 Micron, 142mm, 25/Pk | 25 |
| A300A293C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 3.0 Micron, 293mm, 25/Pk | 25 |
| A500A013A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 5.0 Micron, 13mm, 100/Pk | 100 |
| A500A025A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 5.0 Micron, 25mm, 100/Pk | 100 |
| A500A037A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 5.0 Micron, 37mm, 100/Pk | 100 |
| A500A047A | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 5.0 Micron, 47mm, 100/Pk | 100 |
| A500A090C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 5.0 Micron, 90mm, 25/Pk | 25 |
| A500A142C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 5.0 Micron, 142mm, 25/Pk | 25 |
| A500A293C | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 5.0 Micron, 293mm, 25/Pk | 25 |
| MCE0653001 | Nitrocellulose Mixed Ester (MCE) Membrane, 0.65 Micron, 300 x 3000mm, 1/Pk | 1 |
| MCE8025100 | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 8.0 Micron, 25mm, 100/Pk | 100 |
| MCE8047100 | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 8.0 Micron, 47mm, 100/Pk | 100 |
| MCE809025 | Nitrocellulose Mixed Ester (MCE) Membrane Filters, 8.0 Micron, 90mm, 25/Pk | 25 |
| MCEB0813100 | Nitrocellulose Mixed Ester (MCE) Membrane Filters, Black, 0.8 Micron, 13mm, 100/Pk | 100 |
| MCEB0825100 | Nitrocellulose Mixed Ester (MCE) Membrane Filters, Black, 0.8 Micron, 25mm, 100/Pk | 100 |
| MCEB0847100 | Nitrocellulose Mixed Ester (MCE) Membrane Filters, Black, 0.8 Micron, 47mm, 100/Pk | 100 |
