多级潜水深井水泵（适用于4英寸/100毫米井径）
专为民用及工业用途设计，特别适用于喷灌系统、农业灌溉设施、消防装置，以及各类清水输送场景。液体类型：清水
应用领域：农业灌溉、工业用途、住宅民用
最大扬程：231米
最大流量：400升/分钟
使用限制：
- 最大浸没深度： 150 米
- 液体温度： 最高 35°C（家用符合 EN 60335-2-41 标准）
最高液体温度：35°C（其他用途） - 含沙量： 最大 50 克/立方米
- 启停次数： 每小时最多 20 次
电机参数：
- 电源类型： 单相 230V-50Hz / 三相 400V-50Hz
- 电机类型： 两极感应电机
- 防护结构： 油浴式潜水电机
- 绝缘等级： F 级
- 防护等级： IP68
- 运行模式： 连续工作制
材质说明：
电机材质：
- 外壳： AISI 304 不锈钢
- 电机轴： AISI 304 不锈钢
- 上支架： 镀锌铸铁
- 机械密封： 陶瓷/石墨
泵体材质：
- 外壳： AISI 304 不锈钢
- 电机轴： AISI 304 不锈钢
- 级段： 聚碳酸酯
- 叶轮： Noryl（改性 PPO 工程塑料）
| MODEL | PHASE | NOMINAL POWER | POWER CONSUMPTION | PERFORMANCE | SHOUTS | |||
|---|---|---|---|---|---|---|---|---|
| HP | kW | kW | Q (L/min) | H (m) | asp. | mand. | ||

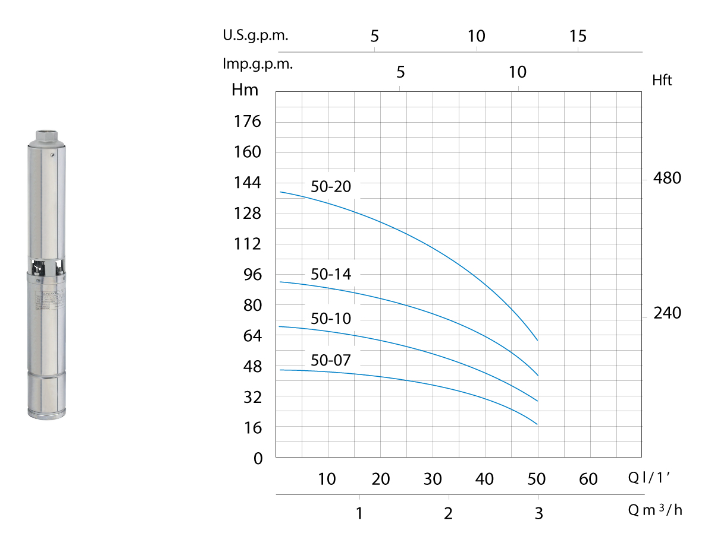

| SPM 50-07 | Single-phase | 0.5 | 0.37 | – | 50 | 46 | – | 1″ 1/4 |
| SPM 50-10 | Single-phase | 0.75 | 0.55 | – | 50 | 69 | – | 1″ 1/4 |
| SPM 50-14 | Single-phase | 1 | 0.75 | – | 50 | 92 | – | 1″ 1/4 |
| SPM 50-20 | Single-phase | 1.5 | 1.1 | – | 50 | 139 | – | 1″ 1/4 |
| SPM 70-08 | Single-phase | 0.75 | 0.55 | – | 70 | 54 | – | 1″ 1/4 |
| SPM 70-11 | Single-phase | 1 | 0.75 | – | 70 | 72 | – | 1″ 1/4 |
| SPM 70-16 | Single-phase | 1.5 | 1.1 | – | 70 | 106 | – | 1″ 1/4 |
| SPM 70-21 | Single-phase | 2 | 1.5 | – | 70 | 142 | – | 1″ 1/4 |
| SPM 70-32 | Single-phase | 3 | 2.2 | – | 70 | 208 | – | 1″ 1/4 |
| SPM 100-07 | Single-phase | 0.75 | 0.55 | – | 100 | 46 | – | 1″ 1/4 |
| SPM 100-09 | Single-phase | 1 | 0.75 | – | 100 | 59 | – | 1″ 1/4 |
| SPM 100-14 | Single-phase | 1.5 | 1.1 | – | 100 | 93 | – | 1″ 1/4 |
| SPM 100-18 | Single-phase | 2 | 1.5 | – | 100 | 120 | – | 1″ 1/4 |
| SPM 100-27 | Single-phase | 3 | 2.2 | – | 100 | 175 | – | 1″ 1/4 |
| SPM 140-10 | Single-phase | 1.5 | 1.1 | – | 140 | 62 | – | 2″ |
| SPM 140-14 | Single-phase | 2 | 1.5 | – | 140 | 90 | – | 2″ |
| SPM 140-20 | Single-phase | 3 | 2.2 | – | 140 | 125 | – | 2″ |
| SPM 200-06 | Single-phase | 1.5 | 1.1 | – | 200 | 39 | – | 2″ |
| SPM 200-08 | Single-phase | 2 | 1.5 | – | 200 | 52 | – | 2″ |
| SPM 200-13 | Single-phase | 3 | 2.2 | – | 200 | 82 | – | 2″ |
| SPM 400-08 | Single-phase | 3 | 2.2 | – | 400 | 51 | – | 2″ |
| SP/TR 50-07 | Three-phase | 0.5 | 0.37 | – | 50 | 46 | – | 1″ 1/4 |
| SP/TR 50-10 | Three-phase | 0.75 | 0.55 | – | 50 | 69 | – | 1″ 1/4 |
| SP/TR 50-14 | Three-phase | 1 | 0.75 | – | 50 | 92 | – | 1″ 1/4 |
| SP/TR 50-20 | Three-phase | 1.5 | 1.1 | – | 50 | 139 | – | 1″ 1/4 |
| SP/TR 70-08 | Three-phase | 0.75 | 0.55 | – | 70 | 54 | – | 1″ 1/4 |
| SP/TR 70-11 | Three-phase | 1 | 0.75 | – | 70 | 72 | – | 1″ 1/4 |
| SP/TR 70-16 | Three-phase | 1.5 | 1.1 | – | 70 | 106 | – | 1″ 1/4 |
| SP/TR 70-21 | Three-phase | 2 | 1.5 | – | 70 | 142 | – | 1″ 1/4 |
| SP/TR 70-32 | Three-phase | 3 | 2.2 | – | 70 | 208 | – | 1″ 1/4 |
| SP/TR 100-07 | Three-phase | 0.75 | 0.55 | – | 100 | 46 | – | 1″ 1/4 |
| SP/TR 100-09 | Three-phase | 1 | 0.75 | – | 100 | 59 | – | 1″ 1/4 |
| SP/TR 100-14 | Three-phase | 1.5 | 1.1 | – | 100 | 93 | – | 1″ 1/4 |
| SP/TR 100-18 | Three-phase | 2 | 1.5 | – | 100 | 120 | – | 1″ 1/4 |
| SP/TR 100-27 | Three-phase | 3 | 2.2 | – | 100 | 175 | – | 1″ 1/4 |
| SP/TR 100-35 | Three-phase | 4 | 3 | – | 100 | 231 | – | 1″ 1/4 |
| SP/TR 140-10 | Three-phase | 1.5 | 1.1 | – | 140 | 62 | – | 2″ |
| SP/TR 140-14 | Three-phase | 2 | 1.5 | – | 140 | 90 | – | 2″ |
| SP/TR 140-20 | Three-phase | 3 | 2.2 | – | 140 | 125 | – | 2″ |
| SP/TR 140-27 | Three-phase | 4 | 3 | – | 140 | 169 | – | 2″ |
| SP/TR 140-36 | Three-phase | 5.5 | 4 | – | 140 | 221 | – | 2″ |
| SP/TR 200-06 | Three-phase | 1.5 | 1.1 | – | 200 | 39 | – | 2″ |
| SP/TR 200-08 | Three-phase | 2 | 1.5 | – | 200 | 52 | – | 2″ |
| SP/TR 200-13 | Three-phase | 3 | 2.2 | – | 200 | 82 | – | 2″ |
| SP/TR 200-17 | Three-phase | 4 | 3 | – | 200 | 108 | – | 2″ |
| SP/TR 200-23 | Three-phase | 5.5 | 4 | – | 200 | 148 | – | 2″ |
| SP/TR 400-08 | Three-phase | 3 | 2.2 | – | 400 | 51 | – | 2″ |
| SP/TR 400-11 | Three-phase | 4 | 3 | – | 400 | 70 | – | 2″ |
| SP/TR 400-15 | Three-phase | 5.5 | 4 | – | 400 | 97 | – | 2″ |
4英寸（DN100毫米）深井用多级潜水泵
特别适用于民用、工业、喷灌系统、农业灌溉及消防供水等清水输送场景
液体类型：清水
应用领域：农业灌溉、工业用途、住宅民用
最大扬程：250米
最大流量：300升/分钟
电机参数：
电源规格：
- 单相交流 230V/50Hz
- 三相交流 400V/50Hz
电机特性：
- 双极感应电动机
- 油浸式潜水电机结构
- F级绝缘等级
- IP68防护等级
- 连续工作制
材质说明：
电机部分材质：
- 外壳：AISI 304不锈钢
- 电机轴：AISI 304不锈钢
- 上支架：镀锌铸铁
- 机械密封：陶瓷/石墨组合
泵体部分材质：
- 外壳：AISI 304不锈钢
- 电机轴：AISI 304不锈钢
- 泵级与叶轮：AISI 304不锈钢整体铸造
| MODEL | PHASE | NOMINAL POWER | POWER CONSUMPTION | PERFORMANCE | SHOUTS | |||
|---|---|---|---|---|---|---|---|---|
| HP | kW | kW | Q (L/min) | H (m) | asp. | mand. | ||

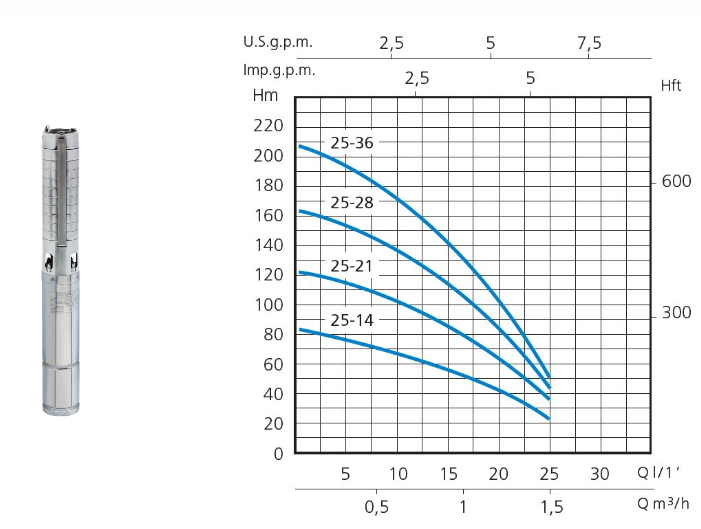

| SXM 25-14 | Single-phase | 0.5 | 0.37 | – | 25 | 82 | – | 1″ 1/4 |
| SXM 25-21 | Single-phase | 0.75 | 0.55 | – | 25 | 121 | – | 1″ 1/4 |
| SXM 25-28 | Single-phase | 1 | 0.75 | – | 25 | 162 | – | 1″ 1/4 |
| SXM 25-36 | Single-phase | 1.5 | 1.1 | – | 25 | 207 | – | 1″ 1/4 |
| SXM 40-09 | Single-phase | 0.5 | 0.37 | – | 40 | 53 | – | 1″ 1/4 |
| SXM 40-13 | Single-phase | 0.75 | 0.55 | – | 40 | 77 | – | 1″ 1/4 |
| SXM 40-18 | Single-phase | 1 | 0.75 | – | 40 | 106 | – | 1″ 1/4 |
| SXM 40-23 | Single-phase | 1.5 | 1.1 | – | 40 | 136 | – | 1″ 1/4 |
| SXM 40-33 | Single-phase | 2 | 1.5 | – | 40 | 195 | – | 1″ 1/4 |
| SXM 40-40 | Single-phase | 3 | 2.2 | – | 40 | 236 | – | 1″ 1/4 |
| SXM 70-09 | Single-phase | 0.75 | 0.55 | – | 70 | 58 | – | 1″ 1/4 |
| SXM 70-12 | Single-phase | 1 | 0.75 | – | 70 | 78 | – | 1″ 1/4 |
| SXM 70-18 | Single-phase | 1.5 | 1.1 | – | 70 | 117 | – | 1″ 1/4 |
| SXM 70-22 | Single-phase | 2 | 1.5 | – | 70 | 143 | – | 1″ 1/4 |
| SXM 70-29 | Single-phase | 3 | 2.2 | – | 70 | 188 | – | 1″ 1/4 |
| SXM 100-06 | Single-phase | 0.75 | 0.55 | – | 100 | 38 | – | 1″ 1/2 |
| SXM 100-08 | Single-phase | 1 | 0.75 | – | 100 | 51 | – | 1″ 1/2 |
| SXM 100-12 | Single-phase | 1.5 | 1.1 | – | 100 | 75 | – | 1″ 1/2 |
| SXM 100-17 | Single-phase | 2 | 1.5 | – | 100 | 106 | – | 1″ 1/2 |
| SXM 100-25 | Single-phase | 3 | 2.2 | – | 100 | 156 | – | 1″ 1/2 |
| SXM 180-07 | Single-phase | 1.5 | 1.1 | – | 180 | 41 | – | 2″ |
| SXM 180-10 | Single-phase | 2 | 1.5 | – | 180 | 58 | – | 2″ |
| SXM 180-15 | Single-phase | 3 | 2.2 | – | 180 | 86 | – | 2″ |
| SXM 300-05 | Single-phase | 2 | 1.5 | – | 300 | 32 | – | 2″ |
| SXM 300-07 | Single-phase | 3 | 2.2 | – | 300 | 45 | – | 2″ |
| SXT 25-14 | Three-phase | 0.5 | 0.37 | – | 25 | 82 | – | 1″ 1/4 |
| SXT 25-21 | Three-phase | 0.75 | 0.55 | – | 25 | 121 | – | 1″ 1/4 |
| SXT 25-28 | Three-phase | 1 | 0.75 | – | 25 | 162 | – | 1″ 1/4 |
| SXT 40-09 | Three-phase | 0.5 | 0.37 | – | 40 | 53 | – | 1″ 1/4 |
| SXT 40-13 | Three-phase | 0.75 | 0.55 | – | 40 | 77 | – | 1″ 1/4 |
| SXT 40-18 | Three-phase | 1 | 0.75 | – | 40 | 106 | – | 1″ 1/4 |
| SXT 40-23 | Three-phase | 1.5 | 1.1 | – | 40 | 136 | – | 1″ 1/4 |
| SXT 40-33 | Three-phase | 2 | 1.5 | – | 40 | 195 | – | 1″ 1/4 |
| SXT 40-40 | Three-phase | 3 | 2.2 | – | 40 | 236 | – | 1″ 1/4 |
| SXT 70-09 | Three-phase | 0.75 | 0.55 | – | 70 | 58 | – | 1″ 1/4 |
| SXT 70-12 | Three-phase | 1 | 0.75 | – | 70 | 78 | – | 1″ 1/4 |
| SXT 70-18 | Three-phase | 1.5 | 1.1 | – | 70 | 117 | – | 1″ 1/4 |
| SXT 70-22 | Three-phase | 2 | 1.5 | – | 70 | 143 | – | 1″ 1/4 |
| SXT 70-29 | Three-phase | 3 | 2.2 | – | 70 | 188 | – | 1″ 1/4 |
| SXT 70-39 | Three-phase | 4 | 3 | – | 70 | 250 | – | 1″ 1/4 |
| SXT 100-06 | Three-phase | 0.75 | 0.55 | – | 100 | 38 | – | 1″ 1/2 |
| SXT 100-08 | Three-phase | 1 | 0.75 | – | 100 | 51 | – | 1″ 1/2 |
| SXT 100-12 | Three-phase | 1.5 | 1.1 | – | 100 | 75 | – | 1″ 1/2 |
| SXT 100-17 | Three-phase | 2 | 1.5 | – | 100 | 106 | – | 1″ 1/2 |
| SXT 100-25 | Three-phase | 3 | 2.2 | – | 100 | 156 | – | 1″ 1/2 |
| SXT 100-33 | Three-phase | 4 | 3 | – | 100 | 206 | – | 1″ 1/2 |
| SXT 100-38 | Three-phase | 5.5 | 4 | – | 100 | 237 | – | 1″ 1/2 |
| SXT 180-07 | Three-phase | 1.5 | 1.1 | – | 180 | 41 | – | 2″ |
| SXT 180-10 | Three-phase | 2 | 1.5 | – | 180 | 58 | – | 2″ |
| SXT 180-15 | Three-phase | 3 | 2.2 | – | 180 | 86 | – | 2″ |
| SXT 180-18 | Three-phase | 4 | 3 | – | 180 | 103 | – | 2″ |
| SXT 180-21 | Three-phase | 5 | 3.7 | – | 180 | 121 | – | 2″ |
| SXT 180-25 | Three-phase | 5.5 | 4 | – | 180 | 144 | – | 2″ |
| SXT 180-30 | Three-phase | 7.5 | 5.5 | – | 180 | 173 | – | 2″ |
| SXT 180-37 | Three-phase | 10 | 7.5 | – | 180 | 213 | – | 2″ |
| SXT 300-05 | Three-phase | 2 | 1.5 | – | 300 | 32 | – | 2″ |
| SXT 300-07 | Three-phase | 3 | 2.2 | – | 300 | 45 | – | 2″ |
| SXT 300-10 | Three-phase | 4 | 3 | – | 300 | 65 | – | 2″ |
| SXT 300-13 | Three-phase | 5.5 | 4 | – | 300 | 85 | – | 2″ |
| SXT 300-18 | Three-phase | 7.5 | 5.5 | – | 300 | 117 | – | 2″ |
