法国 WINTECH UTC SD 智能热像仪
UTC Ultimate Temperature Control® 系列包括三类自主和联网的红外探测器（物联网），由 Wintech Groupe 的子公司 UTC-System 设计和开发。UTC 相机属于专门用于工业和保护场所（如火灾、火灾初期、违规行为、入侵）风险预防的智能热像仪系列。UTC 相机的创新技术实现了 24/7/365 全天候监控。
UTC-SD Type WE 红外热像仪由 Wintech Groupe 设计，可用于监控电气设备。借助自主红外热像仪 UTC – Ultimate Temperature Control®，您可以检测到异常的最初迹象并预测火灾风险。
当出现异常情况（如检测到异常加热或入侵）时，设备可以将警报和热成像图像发送到手机和/或 PC。根据使用需求和客户要求，UTC System 提供适配的报警处理服务。
UTC Ultimate Temperature Control® 是 UTC-System（Wintech Groupe）注册的商标。

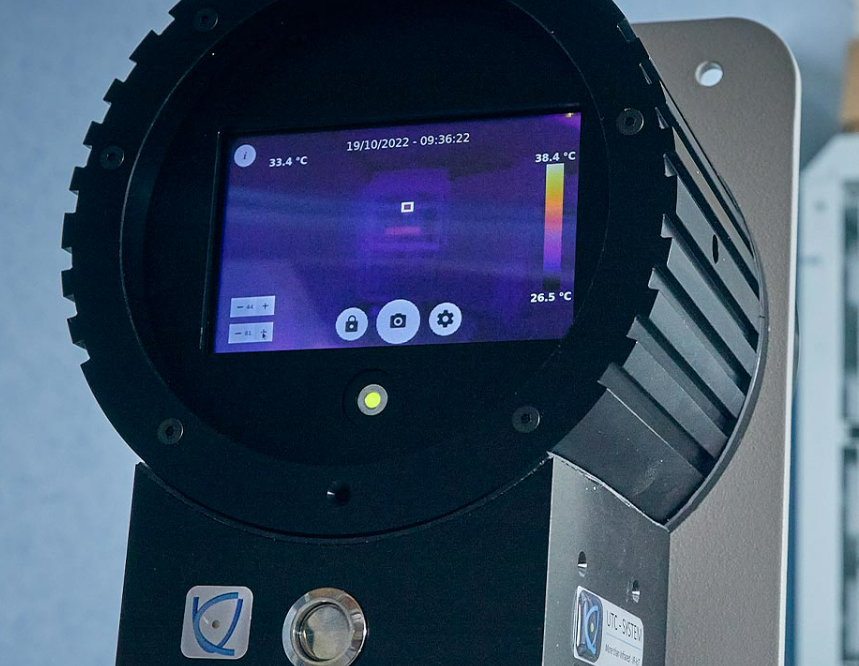

UTC-SD 热电设备热像仪
由 Wintech Groupe 设计的 UTC-SD 类型 WE 热像仪可用于监控电气设备。通过使用 UTC – Ultimate Temperature Control® 自主热像仪，您可以检测到异常的初步迹象，提前预防火灾风险。
监控电气设备的火灾风险管理
使用 UTC-SD 可以确保对电气设备（变压器、隔离开关、电容器组等）进行自主、连接和连续监控。因此，它是以下方面的宝贵工具：
- 监控电器的维护：必要时触发干预（不包括强制性年度维护），
- 火灾风险预防：在灾难触发之前实时收到热点警报。
| Data | Specifications |
|---|---|
| IR Resolution | 160×120 |
| Thermal sensibility | <60 mK to 60 Hz |
| Field of vision | Subject field 42cm x 25cm to 15 cm – F-Theta Fisheyes – total field angle 115° |
| Focus | Set |
| Focal distance – Aperture | 1.52mm – F/1.2 |
| WIFI | No |
| Detector | Uncooled microbolometer 160×120 |
| Screen | LCD colour 480×800 |
| Image frequency | Up to 30 Hz |
| Imaging mode | IR Image |
| Measured temperature range | -25°C to 200°C |
| Precision | T = ±2.5°C on the entire range |
| Measurement area | Detection on the entire covered area – tracking of hot points in a box with temperature and date display |
| Alarm | Flashing triangle on the screen + alarm sound (70db at 1m) + Photo dispatch (thermogram) |
| Emissivity management | Yes |
| Colour palettes | Inferno |
| Configuration features | Date, time, language and unit control according to country of use |
| Local storage capacity | 16 Gb |
| Storage mode | Flash-Server memory |
| File formats | TIFF |
| Data | Specifications |
|---|---|
| Wavelength | 8-12µm |
| Ingress Protection (IP) | IP65 |
| Detection Coverage | 15cm-8m |
| Visualisation | <10m |
| MTF | 30cy/mm |
| Distorsion | 5.88% |
| Power Supply | Ethernet (POE+ : 42.5-57 VDC) |
| Status Indicator | Bi-colour LED |
| Cable | Male ethernet (RJ45) |
| On-board software | UTC-SYS |
| Web software | UTC-Supervision |
| Server software | UTC-Server (hosting optional) |
| Dimensions – Weights | 277 x 150 x 118 mm Unplugged without protective cap: 277 x 150 x 133 mm < 2 kg |
| Guarantee | 3 years, option for extension to 5 years |
| Manufacturing | Made in France |
| Standard | CE – IEC62271-1 – HN64-S-52 |
| Range Type | WARM ELECTRIC |
| Options | Equipment: Stands, cables, etc. |
