Solar Electronics LISN线路阻抗稳定网络

产品描述
Solar Electronics公司生产的LISN（线路阻抗稳定网络）在测试样品与电源之间采用串联电感，以提供特定的阻抗-频率特性。设备配备带直流隔离的同轴连接器，用于连接配套的频率选择性EMI测量仪。电感的电源端通过旁路接地。

由于部分LISN型号具有大电流承载能力，采用开关切换电感值的方式往往不切实际。为此，某些型号配置了大电流插针-插孔组合装置，可快速切换不同网络模块。这种尼龙绝缘的插针-插孔结构作为安全设计，能有效隔离意外短路风险，为操作人员提供安全保障。

当前额定电流参数为：50µH型号最高支持200A，5µH型号最高支持500A（具体参数请参见“规格”标签页图表）。

根据EMI规范要求，每根非接地电源导线均需接入LISN。即使零线在受测设备内部已连接至机箱形成“接地”，仍需通过LISN进行测试。因此：

直流或单相交流应用需使用2台LISN
三角形接法三相电路需使用3台LISN
星形接法三相电路需使用4台LISN

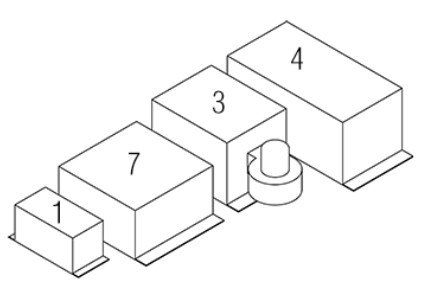

Part Number	Specifications	Ind. µH	Coupling Cap.	Current Amps	Volts DC	Volts 50-60 Hz Line/GND	Volts 400 Hz	Volts 800 Hz	Freq. Min.	Freq. Max.	Circuit	Case Size
2119-5-TS-50-N Data sheet ‡	FCC Part 18, MIL-STD-462 Notice 3, CISPR 25*	5 µH	0.10 µF	50	600	500	240	—	100 kHz	100 MHz	Single	1
2203-5-TS-25-N Data sheet ‡	FCC Part 18, DO-160G, DEF STAN 59-411 Part 3, CISPR 25*	5 µH	0.10 µF	25	600	500	240	125	1 kHz	1 GHz	Single	1
22018-5-TS-500-N Data sheet ‡	RTCA-DO-160G	5 µH	0.10 µF	500	1000	500	500	450	10 kHz	1 GHz	Single	4
2309-50-BP-25-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	100 MHz	Dual	7
2402-50-TS-50-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	50	1000	500	240	—	10 kHz	50 MHz	Single	3
2602-50-TS-25-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Single	1
2704-5-PJ-25-BNC Data sheet ‡	CISPR 25*	5 µH	0.10 µF	25	400	270	135	—	100 kHz	100 MHz	Single	1
2704-5-TS-25-BNC Data sheet ‡	CISPR 25*	5 µH	0.10 µF	25	400	270	135	—	100 kHz	100 MHz	Single	1
2909-5-TS-200-N Data sheet ‡	CISPR 25*	5 µH	0.10 µF	200	400	270	250	—	100 kHz	200 MHz	Single	3†
2917-5-TS-100-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160G, CISPR 25*	5 µH	0.10 µF	100	600	500	240	—	10 kHz	400 MHz	Single	3
Part Number	Specifications	Ind. µH	Coupling Cap.	Current Amps	Volts DC	Volts 50-60 Hz Line/GND	Volts 400 Hz	Volts 800 Hz	Freq. Min.	Freq. Max.	Circuit	Case Size
2918-5-TS-500-N Data sheet ‡	DO-160G	5 µH	0.10 µF	500	1000	600	480	240	10 kHz	1 GHz	Single	4
8012-50-R-25-BNC Data sheet ‡	FCC Part 15	50 µH	0.10 µF	25	200	135	75	—	10 kHz	50 MHz	Dual	1
8028-50-BP-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Single	1
8116-50-PJ-100-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	100	400	270	135	—	10 kHz	30 MHz	Single	3†
8116-50-TS-100-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	100	400	270	135	—	10 kHz	30 MHz	Single	3†
8309-5-TS-100-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160C	5 µH	0.10 µF	100	600	500	480	—	150 kHz	65 MHz	Single	3
8610-50-PJ-100-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	100	600	500	240	—	10 kHz	30 MHz	Single	3†
8610-50-TS-100-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	100	600	500	240	—	10 kHz	30 MHz	Single	3†
Part Number	Specifications	Ind. µH	Coupling Cap.	Current Amps	Volts DC	Volts 50-60 Hz Line/GND	Volts 400 Hz	Volts 800 Hz	Freq. Min.	Freq. Max.	Circuit	Case Size
8616-5-PJ-200-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160C	5 µH	0.10 µF	200	400	270	135	—	150 kHz	65 MHz	Single	3†
8616-5–200-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160C	5 µH	0.10 µF	200	400	270	135	—	150 kHz	65 MHz	Single	3†
8616-50-PJ-200-N Data sheet ‡	MIL-STD-461D/E/F/G, ANSI C63.4 (2003)	50 µH	0.25 µF	200	400	270	135	—	10 kHz	30 MHz	Single	3†
8616-50-TS-200-N Data sheet ‡	MIL-STD-461D/E/F/G, ANSI C63.4 (2003)	50 µH	0.25 µF	200	400	270	135	—	10 kHz	30 MHz	Single	3†
8902-5-TS-500-N Data sheet ‡	FCC Part 18, DO-160G, DEF STAN 59-411 Part 3	5 µH	0.10 µF	500	700	500	240	—	1 kHz	1 GHz	Single	4
8905-50-TS-50-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	50	400	270	135	—	10 kHz	200 MHz	Single	3
9117-5-PJ-50-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160G, DEF STAN 59-411 Part 3, CISPR 25*	5 µH	0.10 µF	50	600	500	240	115	1 kHz	1 GHz	Single	1
9117-5-TS-50-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160G, DEF STAN 59-411 Part 3, CISPR 25*	5 µH	0.10 µF	50	600	500	240	115	1 kHz	1 GHz	Single	1
9233-50-PJ-50-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	50	400	270	135	—	10 kHz	50 MHz	Single	3
Part Number	Specifications	Ind. µH	Coupling Cap.	Current Amps	Volts DC	Volts 50-60 Hz Line/GND	Volts 400 Hz	Volts 800 Hz	Freq. Min.	Freq. Max.	Circuit	Case Size
9233-50-TS-50-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	50	400	270	135	—	10 kHz	50 MHz	Single	3
9247-50-TS-50-N Data sheet ‡	FCC Part 15, CISPR 16-1, ANSI C63.4 (1992)	50 µH	0.10 µF	50	800	500	240	—	10 kHz	50 MHz	Single	3
9252-50-R-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Dual	7
9331-50-PJ-200-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	200	800	500	240	—	10 kHz	30 MHz	Single	3†
9331-50-TS-200-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	200	800	500	240	—	10 kHz	50 MHz	Single	3†
9348-50-R-25-BNC Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.25 µF	25	400	270	135	—	9 kHz	30 MHz	Dual	7
9408-50-R-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	600	500	270	—	10 kHz	30 MHz	Dual	7
9509-50-R-25-BNC Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.25 µF	25	700	500	270	—	9 kHz	30 MHz	Dual	7
9623-50-BP-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Single	1
9623-50-PJ-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Single	1
Part Number	Specifications	Ind. µH	Coupling Cap.	Current Amps	Volts DC	Volts 50-60 Hz Line/GND	Volts 400 Hz	Volts 800 Hz	Freq. Min.	Freq. Max.	Circuit	Case Size
9629-50-BP-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	800	500	240	—	10 kHz	30 MHz	Single	1
9629-50-TS-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	800	500	240	—	10 kHz	30 MHz	Single	1
9861-50-BP-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Dual	7
9867-5-TS-50-N Data sheet ‡	DO-160G, DEF STAN 59-411 Part 3	5 µH	0.10 µF	50	400	270	135	—	1 kHz	1 GHz	Single	1
9924-5-TS-100 Data sheet ‡	ISO 7637-2 (circuit isolated from case)	5 µH	0.10 µF	100	600	500	480	—	100 kHz	100 MHz	Single	3
21106-50-BP-25-BNC Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.10 µF	25	400	270	135	—	150 kHz	30 MHz	Single	1
21107-50-TS-50-N Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.10 µF	50	400	270	135	135	150 kHz	30 MHz	Single	3
21115-50-TS-100-N Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.10 µF	100	800	500	240	—	150 kHz	30 MHz	Single	3†
21208-50-TS-100-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	100	1000	600	270	—	10 kHz	30 MHz	Single	3†
21214-5-TS-250-N Data sheet ‡	DO-160G, DEF STAN 59-411 Part 3	5 µH	0.10 µF	250	400	270	135	—	1 kHz	400 MHz	Single	3†
21314-50-R-25-BNC Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.10 µF	25	400	270	135	—	150 kHz	30 MHz	Dual	7
21407-5-TS-50-N Data sheet ‡	CISPR 25*	5 µH	0.10 µF	50	600	500	240	—	100 kHz	100 MHz	Single	3
21601-50-TS-50-N Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.25 µF	50	400	270	135	—	9 kHz	30 MHz	Single	4
21604-5-TS-500-N Data sheet ‡	CISPR 25 (2016)	5 µH	0.10 µF	500	700	500	240	—	100 kHz	500 MHz	Single	4
21702-5-PJ-50-N Data sheet ‡	MIL-STD-461F/G (alt. 5 μH LISN, Appendix A:CE101 & CE102)	5 µH	0.1 µF	50	800	500	300	135	150 kHz	100 MHz	Single	1
21702-5-TS-50-N Data sheet ‡	MIL-STD-461F/G (alt. 5 μH LISN, Appendix A:CE101 & CE102)	5 µH	0.1 µF	50	800	500	300	135	150 kHz	100 MHz	Single	1
21804-5-TS-500-N Data sheet ‡	CISPR 25 (2016)	5 µH	0.10 µF	500	1200	500	500	500	100 kHz	500 MHz	Single	4
21847-50-TS-100-N Data sheet ‡	FCC Part 15, CISPR 16-1, ANSI C63.4 (1992)	50 µH	0.10 µF	100	1000	500	500	450	10 kHz	50 MHz	Single	3†
