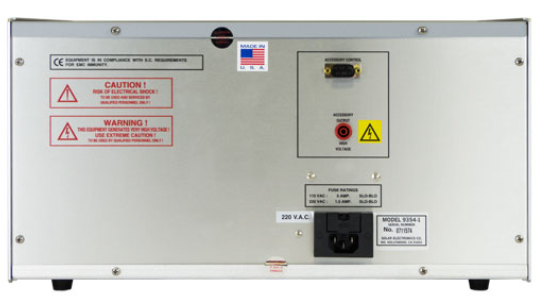

Solar Electronics瞬态发生器、Solar Model 9354-1瞬态发生器、9354-2瞬态发生器

应用说明
Solar Model 9354-1与9354-2瞬态发生器专为执行分系统和设备脉冲敏感度测试而设计，全面符合MIL-STD-461E/F/G CS116测试方法要求，同时支持RTCA DO-160D第22章节的部分测试项目。

产品描述
Model 9354-1与9354-2瞬态发生器提供九种可选波形：

正弦脉冲重复频率支持0.5-1脉冲/秒的自动触发模式，前面板按钮可启用单次脉冲手动触发。输出脉冲峰值幅度可通过充电电压百分比进行调节。

六组阻尼正弦波形严格遵循MIL-STD-461E/F/G CS116标准设计，选配变频模块还可实现连续可调的频率输出。

1 MHz、10 MHz及三组双指数脉冲波形专为RTCA DO-160D第22章节的预合规测试设计，具体测试等级参数详见本手册表2。

产品特性
• 面板数字电压表实时显示开路放电电压调整值
• 脉冲重复率最高达1脉冲/秒（出厂预设）
• 单次脉冲功能确保瞬态效应的可控隔离
• 输出电压支持25%-100%放电电压范围内可调

技术整合说明：

如需进一步细化特定波形的测试参数或生成标准符合性对照表，可继续补充相应技术细节。

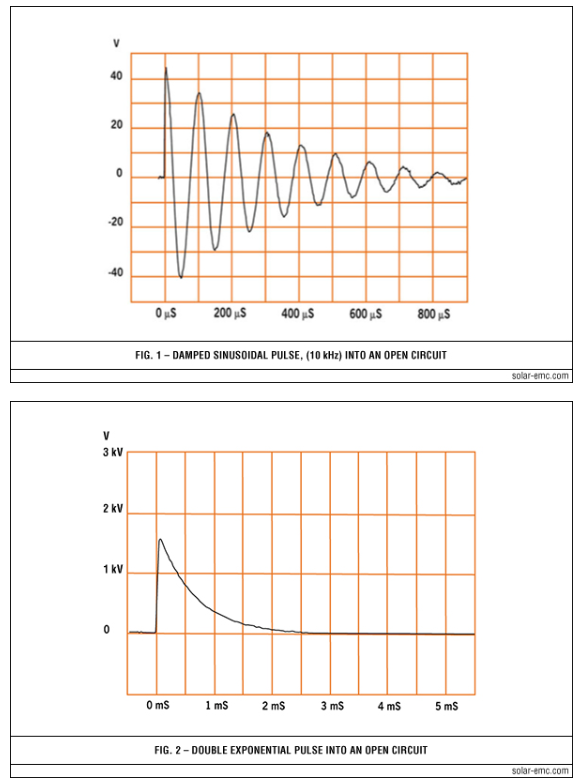

TABLE 1 – DAMPED SINUSOID PULSES
10 kHz	Open circuit voltage	30 V
	Calculated short circuit current	120 A
	Source impedance	<0.25 Ω

100 kHz	Open circuit voltage	300 V
	Calculated short circuit current	120 A
	Source impedance	<2.5 Ω

1 MHz	Open circuit voltage	3200 V
	Calculated short circuit current	128 A
	Source impedance	<25 Ω

10 MHz	Open circuit voltage	3200 V
	Calculated short circuit current	128 A
	Source impedance	<25 Ω

30 MHz	Open circuit voltage	1000 V
	Calculated short circuit current	20 A
	Source impedance	<50 Ω

100 MHz	Open circuit voltage	300 V
	Calculated short circuit current	6 A
	Source impedance	<50 Ω

TABLE 2 – DO-160D TEST LEVELS POSSIBLE FROM MODEL 9354-1 AND 9354-2 APPLICATIONS
Waveform	Pin injection	Cable bundle injection
1 (70 µS)	no requirement	level 1 – 4
2 (6.4 µS)	no requirement	level 1 – 4
3A (1 MHz)	level 1 – 5	level 1 – 4
3B (10 MHz )	no requirement	level 1 – 4
4 (70 µS)	level 1 – 5	level 1 – 4
5A (120 µS)*	level 1 – 4	level 1 – 3
5B (500 µS)*	level 1 – 4	level 1 – 3

TABLE 3 – DOUBLE EXPONENTIAL PULSES
6.4 µS	Rise time	100 nS
	Open circuit voltage	1600 V
	Calculated short circuit current	800 A
	Source impedance	<2.0 Ω

70.0 µS
	Rise time	6.4 µS
	Open circuit voltage	1600 V
	Calculated short circuit current	800 A
	Source impedance	<2.0 Ω

500 µS (9354-1)
	Rise time	50 µS
	Open circuit voltage	1600 V
	Calculated short circuit current	400 A
	Source impedance	<4.0 Ω

120 µS (9354-2)
	Rise time	40 µS
	Open circuit voltage	750 V
	Calculated short circuit current	750 A
	Source impedance	1.0 Ω

NOTE: Measurement of short circuit currents are limited by the XL of the circuit. All values are calculated.

* NOTE: Waveform 5A available in Model 9354-2 only. Waveform 5B available in Model 9354-1 only.

NOTE: Measurement of short circuit currents are limited by the X_L of the circuit. All values are calculated.
