A115气泡传感器、SMD非侵入式气泡检测传感器、Strain Measurement Devices数字式非侵入性超声波气泡检测技术
A115气泡传感器是新一代标准现货气泡传感器，专为 3/32英寸（约2.38mm） 外径管路中的非侵入式气泡检测而设计。该传感器以我们的OEM医疗设备客户需求为核心进行设计，集成了所有最受用户欢迎的特性和选配功能，以简化设计流程并优化性能。传感器采用我们最新的数字式非侵入性超声波气泡检测技术，能够可靠地检测各种硬质和软质管材中任意液体内的气泡。
特点
· 非侵入式检测充液管路中的空气
· 气泡尺寸可自定义校准，可检测小至管径 50% 的气泡
· 干式耦合安装于管路上（无需使用耦合剂或声学耦合材料）
· 开箱即用，兼容多种管材，包括硬质塑料（如氟聚合物）、软质塑料和橡胶
· 集成自检功能
应用：
· 医疗设备
· 输液泵
· 肠内营养输注泵
· 造影剂高压注射器
· 射频消融冷却泵
· 癌症治疗
· 麻醉输送
· 细胞治疗
· 液体加温器
· 免疫分析系统
· 透析
· 血液管理
· 药物与营养配比
· 化学处理设备
· 制药仪器
· 其他OEM产品
· 食品加工
· 生物技术分析

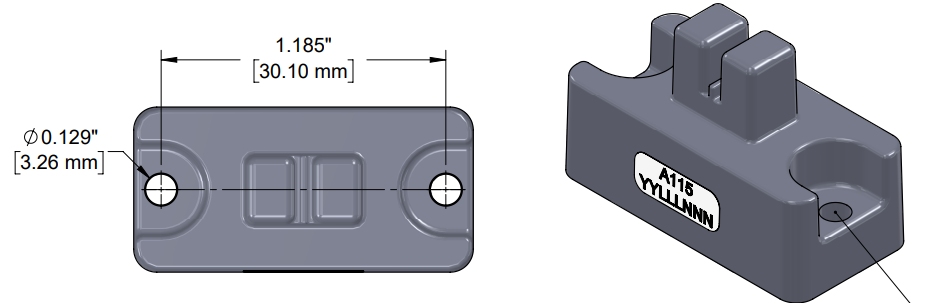

| Dimensions in. [mm] | 1.41 x 0.83 x 0.68 [35.92 x 21.21 x 17.47] |
|---|---|
| Minimum Bubble Size | 1 µL |
| Nominal Tube OD in. [mm] | 0.093 [2.36] |
| LED Options | N/A |
| Mounting Options | Through hole |
| PRODUCT | NOMINAL TUBE OD IN. [MM] | MINIMUM BUBBLE SIZE MICROLITERS | DIMENSIONS IN. X IN. X IN. [MM X MM X MM] | MOUNTING | HOUSING MATERIALS | ||
|---|---|---|---|---|---|---|---|
 | A810 Bubble Detector | 0.50 [12.70] | 50 µL | 1.74 x 1.27 x 0.68 [44.17 x 32.92 x 17.47] | Through hole | ABS | |
 | A610 Bubble Sensor | 0.375 [9.53] | 10 µL | 1.64 x 1.13 x 0.68 [41.63 x 28.7 x 17.47] | Through hole | ABS | |
 | A510 Bubble Detector | 0.313 [7.92] | 10 µL | 1.59 x 1.06 x 0.68 [40.36 x 26.92 x 17.47] | Through hole | ABS | |
 | A410 Bubble Sensor | 0.25 [6.35] | 10 µL | 1.54 x 0.99 x 0.68 [39.09 x 25.17 x 17.47] | Through hole | ABS | |
 | A310 Bubble Sensor | 0.188 [4.75] | 1 µL | 1.49 x 0.92 x 0.68 [37.82 x 23.39 x 17.47] | Through hole | ABS | |
 | A215 Bubble Sensor | 0.156 [3.96] | 1 µL | 1.46 x 0.89 x 0.68 [37.19 x 22.5 x 17.47] | Through hole | ABS | |
 | A210 Bubble Detector | 0.125 [3.17] | 1 µL | 1.44 x 0.85 x 0.68 [36.55 x 21.61 x 17.47] | Through hole | ABS | |
 | A115 Bubble Sensor | 0.093 [2.36] | 1 µL | 1.41 x 0.83 x 0.68 [35.92 x 21.21 x 17.47] | Through hole | ABS | |
 | A830 Bubble Sensor | 0.50 [12.70] | 50 µL | 1.53 x 0.80 x 0.82 [38.9 x 20.3 x 26.7] | SAE or Metric Threaded inserts | ABS | |
 | A630 Bubble Sensor | 0.375 [9.50] | 10 µL | 1.22 x 0.80 x 0.92 [31 x 20.3 x 23.4] | SAE or Metric Threaded inserts | ABS | |
 | A530 Bubble Sensor | 0.313 [7.90] | 10 µL | 1.17 x 0.80 x 0.82 [29.7 x 20.3 x 23.4] | SAE or Metric Threaded inserts | ABS | |
 | A430 Bubble Sensor | 0.25 [6.40] | 10 µL | 1.12 x 0.80 x 0.78 [27.4 x 20.3 x 19.8] | SAE or Metric Threaded inserts | ABS | |
 | A130 Bubble Sensor | 0.063 [1.60] | 0.1 µL | 1.12 x 0.79 x 0.65 [28.3 x 20.1 x 16.6] | SAE or Metric Threaded inserts | ABS & TPE | |
 | A230 Bubble Sensor | 0.125 [3.20] | 1 µL | 1.0 x 0.75 x 0.63 [25.4 x 19.1 x 16.0] | SAE or Metric Threaded inserts | ABS | |
 | A240 Bubble Sensor | 0.125 [3.17] | 1 µL | 1.75 x 0.83 x 0.81 [44.5 x 21.1 x 20.6] | Through Hole | ABS | |
 | A330 Bubble Sensor | 0.188 [4.80] | 1 µL | 1.07 x 0.8 x 0.68 [27.2 x 20.3 x 17.3] | SAE or Metric Threaded inserts | ABS |
