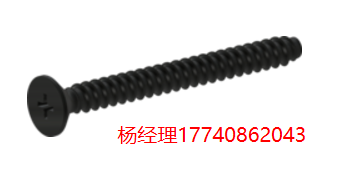

Screw for Plastic
STP33 5.0×50.0 – H2
steel, hardened
Zinc-Nickel-plated min. 5µm, passivated black/ Cr-VI-free, baked, sealed

similar to WN1413 / WN1443 / WN5454 / KN1033


Item Number		STP330500500B
Standard		STP33
Material		steel, hardened
Surface		Zinc-Nickel-plated min. 5µm, passivated black/ Cr-VI-free, baked, sealed
Thread Outside-Ø	d1	5.00+0.15 mm
Thread Core-Ø	d2	3.53 mm
Thread Pitch	p	1.80 mm
Length	L	50.00±0.80 mm
Head-Ø	D	10.00-0.30 mm
Cylindrical Head Height	C	0.75 mm
Thread Run-Out	X	2.50 mm
Radius	R	2.00 mm
Size Cross Recess		H2
Penetration Depth	t	2.10 – 2.65 mm
Thread		STS-plus
Weight		5.593 kg / 1000 pieces
